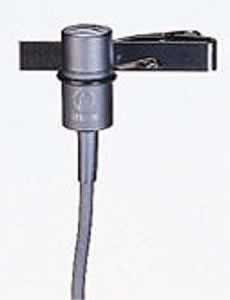

Audio Technica AT803b Miniature Lavalier Microphone

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

audio technica at803b
Images may show accessories or configurations not packaged with this item.
Designed for clip-on lavalier and musical instrument use. Small size is ideal for applications requiring minimum visibility. Operates on battery or phantom power. 6' (1.8 m) cable permanently attached between microphone and power module.

* Element-Condensor
* Polar Pattern-Omnidirectional
* Phantom Power Requirements- 9 - 52V, 2 mA typical
* Frequency Response- 30 - 20,000 Hz
* Switch- Flat; roll-off
* Open Circuit Sensitivity- PHANTOM: -45 dB (5.6 mV) re 1V at 1 Pa
BATTERY: -46 dB (5.0 mV) re 1V at 1 Pa
* Low Frequency Roll-off- 80 Hz, 18 dB per octave
* Impedance- PHANTOM: 200 ohms, BATTERY: 270 ohms
* Weight-.9 oz (410 g)
* Maximum Input Sound Level- PHANTOM: 135 dB SPL, 1 kHz at 1% T.H.D.
BATTERY: 121 dB SPL, 1 kHz at 1% T.H.D
* Output Connector- XLRM-type (power module)
* Signal to Noise Ratio-65 dB, 1 kHz at 1 Pa
* Battery Type- 1.5V AA/UM3
* Battery Current/Life- 0.4 mA/2000 hours typical
* Switch- Off/on-flat/on-roll-off
* Power Module- In-line
* Dynamic Range (Typical)- PHANTOM: 106 dB, 1 kHz at Max. SPL
BATTERY: 92 dB, 1 kHz at Max. SPL
