Audio Technica AT815ST Shotgun Stereo Microphone

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

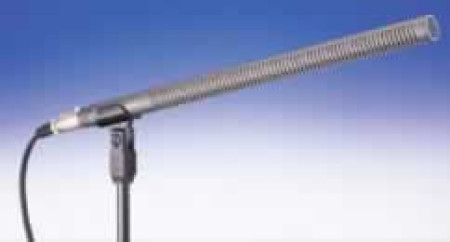

audio technica at815st
Compact, lightweight design is perfect for broadcasters, videographers and sound recordists.

The AT815ST and AT835ST Stereo Shotgun Microphones are a direct result of input Audio Technica received from broadcasters over the last few years. After extensive testing of these new microphones by television broadcast professionals, as well as at Olympic test events , Audio Technica is very confident these microphones will become favorites among broadcasters, sound recordists and videographers

FEATURES:
• Designed for broadcasters, videographers and sound recordists
• Compact, lightweight design is perfect for camera-mount use
• Independent Line-cardioid and Figure-of-eight condenser elements
• Switchable low-frequency roll-off
• Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes
• Includes a 24" (0.61 m) cable (5-pin XLRF to two standard 3-pin XLRM connectors)

TECHNICAL SPECIFICATIONS:
• Transducer Fixed-Charged Back Plate Permanently Polarized Condenser
• Polar Pattern Line-Cardioid and Figure-of-Eight
• Frequency Response 30 Hz - 20 kHz
• Dynamic Range (Typical) Mid: 123 dB
Side: 127 dB
LR Stereo: 126 dB, (All @ 1 kHz at Maximum SPL)
• Signal-to-Noise Ratio Mid: 70 dB, (SPL, 1 kHz at 1 Pa)
Side: 68 dB, (SPL, 1 kHz at 1 Pa)
LR Stereo: 70 dB, (SPL, 1 kHz at 1 Pa)
• Maximum Input Sound Level Mid: 123 dB, (1 kHz at 1% T.H.D.)
Side: 127 dB, (1 kHz at 1% T.H.D._
LR Stereo: 126 dB, (1 kHz at 1% T.H.D.)
• Power Requirements Phantom Power, 9 - 52v DC
• Output Impedance 200 Ohms
• Output Connectors XLR-5M Type (from Microphone)
2 XLR-3M Connectors (L+R) from Microphone's Adapter Cable
• Pad None
• Low Frequency Roll-Off -12dB/Octave, (@ 80 Hz)
• Applications Video Film, and Broadcast Production
• Dimensions 14.96 x 0.83" (380 x 21mm) LxDiameter
• Weight 5.0 oz. (142 g)



Additional Information

UPCN/A
SKUAT815ST
ManufacturerAudio Technica
Product ConditionNew - On Clearance
ReturnableNo
