FEATURES
* Serious advances in affordable professional wireless
* Clear sound quality and rock-solid, dependable performance
* Automatic frequency scanning finds an open channel at the touch of a button
* All 10 user-switchable channels are compatiblefor easy use with multiple systems; no confusing frequency groups
* True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
* Tone Lock' tone squelch system fights interference

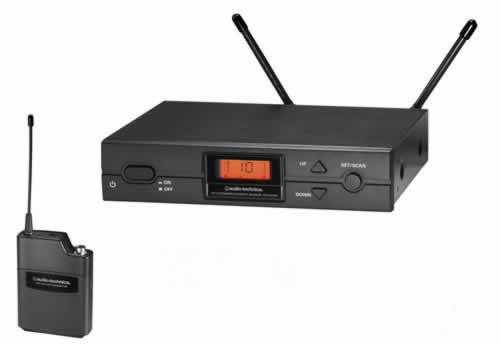

* Rugged metal half-rack receiver with soft-touch controls and LCD display featuring RF and AF metering
* Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
* Includes rack-mount kit and detachable UHF antennas
* Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
RECEIVER SPECIFICATIONS:
* Receiving System Dual independent RF sections, automatic-switching diversity
* Image Rejection 55 dB nominal, 50 dB minimum
* Signal-to-noise Ratio >100 dB at 40 kHz deviation (A-weighted), maximum modulation 40 kHz
* Total Harmonic Distortion <1% (10 kHz deviation at 1 kHz)
* Sensitivity 20 dBV (S/N 60 dB at 5 kHz deviation, IEC-weighted)
* Intermediate Frequency 65.75 MHz, 10.7 MHz
* Audio Output Unbalanced: 25 mV (at 1 kHz, 5 kHz deviation, 100k ohm load)
Balanced: 12.5 mV (at 1 kHz, 5 kHz deviation, 100k ohm load)
* Output Connectors Unbalanced: 1/4" (6.3 mm) phone jack
* Balanced: XLRM-type
* Power Supply 120V AC 60 Hz, or 12-18V DC, 350 mA, with external supply
* Dimensions 8.27" (210.0 mm) W x 1.73" (44.0 mm) H
x 6.39" (162.2 mm) D
* Weight 2.2 lbs (1.0 kgs)
* Accessories Included Two flexible UHF antennas, rack-mount adapters, AC adapter
OVERALL SYSTEM SPECIFICATIONS
* Operating Frequency 656.125 to 678.500 MHz
* Number of Channels 10 total
* Frequency Stability 0.005%, Phase Lock Loop frequency control
* Modulation Mode FM
* Normal Deviation 5 kHz
* Operating Range 300' typical
* Operating Temperature Range 41 F (5 C) to 113 F (45 C)
* Frequency Response 100 Hz to 15 kHz
BODY-PACK TRANSMITTER SPECIFICATIONS
* RF Power Output 12 mW
* Spurious Emissions Under federal regulations
* Input Connections High impedance, low impedance, bias
* Batteries Two 1.5V AA alkaline (not included)
* Current Consumption 150 mA typical
* Battery Life Approximately 9 hours (depending on battery type and use pattern)
* Dimensions 2.60" (66.0 mm) W x 3.63" (92.3 mm) H x 0.89" (22.5 mm) D
* Net Weight 2.82 oz (80 g)
OPTIONAL ACCESSORIES:
* AT-GCW Guitar Input cable
* AT829cW Micro Set Cardioid condenser lavalier mic
* AT829CW-TH Beige Version of the AT829CW
* AT831CW Cardioid Condenser Lavalier Mic
* AT851CW Unidirectional Condenser Boundry Microphone
* AT889CW Noise Canceling Condenser Headworn Microphone
* AT898CW Subminiature Cardioid Condenser Lavalier Microphone
* AT899CW Subminiature Omnidirectional condenser lavalier microphone
* AT899CW-TH Beige Version of the AT899CW
* ATM35CW Cardioid Condenser Clip On Instrument Microphone
* ATM73CW Cardioid Condenser Headworn Microphone
* ATM75CW Cardioid Condenser Headworn Microphone
* ES943CW/C Cardioid Condenser Lavalier Microphone
* ES943CW/O Omnidirectional Condenser Lavier Microphone
* MT830CW Omnidirectional Condenser Lavalier Microphone
* Beige version of teh MT830CW
* PRO35XCW Cardioid Condenser Clip-on Instrument Microphone
* PRO8HECW Hypercardioid Dynamic Headworn Microphone
* XLRW XLR Microphone Input Cable
