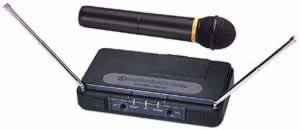

Audio Technica ATW602 UHF Handheld Wireless System, B

FEATURES.

Freeway Series Specifications
• Operating Frequency UHF band
Band A: 470.000 MHz to 479.750 MHz
Band B: 482.000 MHz to 491.750 MHz
• Number of channels 10
• Frequency Stability 0.005%, Phase Lock Loop frequency control
• Modulation Mode FM
• Maximum Deviation 15 kHz
• Operating Range 150' minimum
• Operating Temperature Range 40 F (4 C) to 110 F (43 C)
• Frequency Response ATW-601: 50 Hz to 16 kHz
• ATW-602: 100 Hz to 13 kHz

ATW-R600 Receiver
• Receiving System Non-diversity, 10 channel synthesized, dual antenna system
• Image Rejection 50 dB minimum
• Signal-to-noise Ratio 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
• Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)
• Sensitivity 25 V for 60 dB S/N (IEC-weighted)
• Audio Output 350 mV (at 1 kHz, 10 kHz deviation, 100k ohm load)
• Output Connector 1/4" phone jack
• Power Supply 120V AC 60 Hz, 6 VA; or 12V DC, 200 mA, center positive, with external DC supply
• Dimensions 8.27" (210.0 mm) W x 1.72" (43.5 mm) H x 4.73" (120.0 mm) D
• Net Weight 18.9 oz (536 grams); without AC adapter, 11.9 oz (336 grams)
• Accessories Included AD1202A 120V docking AC adapter; 120V AC IEC cordset

ATW-T601 UniPakTM Transmitter
• RF Power Output 10 mW nominal, 5 mW typical
• Spurious Emissions Under federal regulations
• Dynamic Range >=90 dB, A-weighted
• Input Connections High impedance, low impedance, bias
• Battery (not included) 9V (NEDA type 1604) alkaline
• Current Consumption 60 mA typical
• Battery Life 4-5 hours
• Dimensions 2.56" (65.0 mm) W x 4.41" (112.0 mm) H x 0.87" (22.0 mm) D
• Net Weight (without battery) 3.2 oz (89 grams)

ATW-T602 Handheld Transmitter
• RF Power Output 10 mW nominal, 5 mW typical
• Spurious Emissions Under federal regulations
• Dynamic Range >=90 dB, A-weighted
• Microphone Element Dynamic unidirectional
• Battery (not included) 9V (NEDA type 1604) alkaline
• Current Consumption 60 mA typical
• Battery Life 4-5 hours
• Dimensions 9.65" (245.0 mm) long, 2.11" (53.5 mm) diameter
• Net Weight (without battery) 11.2 oz (316 grams)
• Accessory Included AT8456a stand clamp
