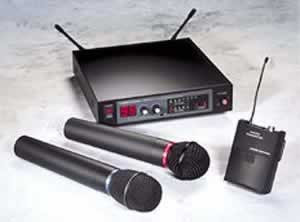

Audio Technica ATW-7373 Handheld Wireless Mic System

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

audio technica atw-7373
100 PLL-synthesized channels selectable via switches on receiver and transmitter. True Diversity operation selects the better signal from two independent receiver sections, reducing dropouts.

• Interference-resistant UHF band operation. InvisibleLink circuitry for optimum sound quality.
• Operating Frequency-UHF band , "x" systems: 656.125 MHz to 668.500 MHz
non-"x" systems: 728.125 MHz to 740.500 MHz
• Number of Channels-100 total
• Frequency Stability-0.005%, Phase Lock Loop frequency control
• Modulation Mode- FM
• Normal Deviation- 10 kHz
• Operating Range- 300' typical
• Operating Temperature Range-41 F (5 C) to 113 F (45 C)
• Frequency Response 100 Hz to 15 kHz

• Receiving System- Dual independent receivers, automatic-switching diversity
• Image Rejection- 50 dB nominal, 45 dB minimum
• Signal-to-noise Ratio- 110 dB at 30 kHz deviation (IEC-weighted), maximum modulation 75 kHz
• Total Harmonic Distortion-<=1% (10 kHz deviation at 1 kHz)
• Sensitivity- 26 dBV (S/N 60 dB at 5 kHz deviation, IEC-weighted)
• Intermediate Frequency- 45 MHz, 10.7 MHz
• Audio Output (AF Level set at "0")-Unbalanced: 50 mV (at 1 kHz, 5 kHz deviation, 10k ohm load)
Balanced: 15.8 mV (at 1 kHz, 5 kHz deviation, 10k ohm load
• Output Connectors- Unbalanced: 1/4" phone jack
Balanced: XLRM-type
• Power Supply- 120V AC 60 Hz; 12-18V DC, 350 mA, with external supply
• Dimensions- 8.27" (210.0 mm) W x 1.93" (49.0 mm) H x 8.86" (225.0 mm) D
• Net Weight- 3.9 lbs (1.8 kg)
• Accessories Included- Two flexible UHF antennas, rack-mount adapters

• RF Power Output- 50 mW Max
• Spurious Emissions- Under federal regulations
• Input Connections- High impedance, low impedance, bias
• Battery (not included)- 9V (NEDA type 1604) alkaline
• Current Consumption- 50 mA typical
• Battery Life Approximately- 8-10 hours (depending on battery type and use pattern)
• Dimensions- 2.44" (62.0 mm) W x 3.35" (85.0 mm) H x 1.02" (26.0 mm) D
• Net Weight- (without battery) 2.8 oz (80 grams)
