Audio Technica ATW1451 UHF Wireless Mic System

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

audio technica atw1451

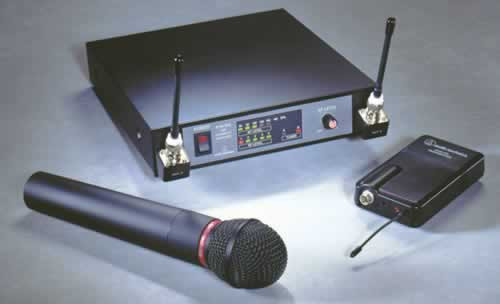

A-T's rugged and reliable 1400 Series UHF True Diversity wireless systems include a receiver and either a body-pack or a handheld transmitter on a specific crystal-controlled frequency.

SYSTEM INCLUDES:
• ATW-R14 receiver
• ATW-T51 UniPakTM transmitter
• Select a Wireless Essentials microphone or cable to complete the system

The all-metal UHF receiver is equipped with detachable front-mount antennas, balanced and unbalanced outputs, ground lift, adjustable squelch, rackmount capability and True Diversity reception. Two antennas feed two completely independent RF sections on the same frequency; automatic logic circuitry continuously compares and selects the superior received signal, providing better sound quality and reducing the possibility of interference and dropouts.

FEATURES:
• True Diversity reception with two independent RF sections for greatest reliability
• Interference-resistant UHF band operation
• Convenient detachable front-mount antennas
• Rugged metal receiver housing
• Balanced and unbalanced audio output jacks
• Ground-lift switch and adjustable squelch
• Two receivers can be mounted side-by-side in a single 19" rack space
• Power-save switches on transmitters
• ATW-T51 UniPakTM transmitter includes Super Hi-Z input that provides optimum load for guitar pickups
• ATW-T52 handheld microphone/transmitter features a Hi-ENERGY dynamic element

ATW-R14
• Receiving System Dual independent receivers, automatic-switching diversity reception
• Image Rejection 45 dB minimum
• Signal-to-noise Ratio 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
• Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)
• Sensitivity <=20 V for 60 dB S/N (IEC-weighted)
• Audio Output Unbalanced: 280 mV (at 1 kHz, 10 kHz deviation, 10k ohm load)
• Balanced: 160 mV (at 1 kHz, 10 kHz deviation, 10k ohm load)
• Output Connectors Unbalanced: 1/4" phone jack
Balanced: XLRM-type
• Power Supply 12-18V DC, 500 mA
• Dimensions 8.27" (210.0 mm) W x
1.93" (49.0 mm) H x
9.88" (251.0 mm) D
• Weight 2.9 lbs (1.3 kg)

ATW-T51
• RF Power Output 50 mW Max
• Spurious Emissions Under federal regulations
• Dynamic Range >=90 dB
• Input Connections High impedance, low impedance, bias
• Battery 9V (NEDA type 1604) alkaline, not included
• Current Consumption 50 mA typical
• Battery Life Approximately 8 hours in High position
Approximately 10 hours in Low position
• Dimensions 2.56" (65.0 mm) W x
4.33" (110.0 mm) H x
1.00" (25.4 mm) D
• Net Weight 3.2 oz (90 grams)

Handheld Transmitter
• RF Power Output 50 mW Max
• Spurious Emissions Under federal regulations
• Dynamic Range >=90 dB
• Microphone Element Dynamic unidirectional
• Battery 9V (NEDA type 1604) alkaline, not included
• Current Consumption 50 mA typical
• Battery Life Approximately 8 hours in High position
Approximately 10 hours in Low position
• Dimensions 9.53" (242.0 mm) long,
2.13" (54.0 mm) diameter
• Net Weight 12.3 oz (350 grams)
• Accessory Included AT8431 stand clamp
