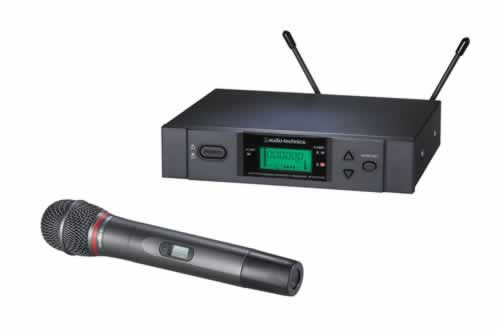

With automatic frequency scanning to find and set the best available channel, 200 selectable UHF channels, true diversity protection from RF hits and dropouts, soft-touch controls, easy setup and great sound, the 3000 Series wireless delivers truly professional performance.
The versatile UniPak' body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of microphones, as well as a guitar cable. A 3-position sliding cover on the transmitter's control panel prevents accidental shut-off or channel-switching.The 3000 Series is available with either a cardioid dynamic or cardioid condenser handheld transmitter featuring robust metal construction and slim ergonomic design. The ATW-T341 handheld transmitter includes the stage-proven Artist Elite AE4100 cardioid dynamic element, while the ATW-T371 handheld transmitter features the Artist Series ATM710 cardioid condenser element.• Automatic frequency scanning• 200 PLL-synthesized channels per band selectable via soft-touch controls on receiver and transmitter• Available in two frequency bands:541.500 - 566.375 MHz (TV Channels 25 - 30)655.500 - 680.375 MHz (TV Channels 44 - 49)• True Diversity operation selects the better signal from two independent receiver sections, reducing dropouts• Interference-resistant UHF band operation• Advanced digital Tone Lock' squelch• Red alert light that warns of low battery power, signal loss and input overload• Transmitter battery-life fuel gauge on the receiver• Ground-lift switch• Balanced and unbalanced audio output jacks• Two receivers can be mounted side-by-side in a single 19" rack space• ATW-T310 UniPak' transmitter includes Super Hi-Z input that provides optimum load for guitar pickups• ATW-T341 handheld microphone/transmitter features the Artist Elite AE4100 cardioid dynamic element• ATW-T371 handheld microphone/transmitter features the Artist Series ATM710 cardioid condenser element
OVERALL SYSTEM SPECIFICATIONSOperating FrequenciesUHF bandBand C: 541.500 MHz to 566.375 MHzBand D: 655.500 MHz to 680.375 MHz
Number of Channels 200 total per bandFrequency Stability0.005%, Phase Lock Loop frequency control
Modulation ModeFM
Normal Deviation10 kHz
Operating Range300' typical
Operating Temperature Range41 F (5 C) to 113 F (45 C)
Frequency Response70 Hz to 15 kHz
RECEIVER SPECIFICATIONSReceiving SystemDual independent receivers, automatic-switching diversity
Image Rejection60 dB nominal, 55 dB minimum
Signal-to-noise Ratio110 dB at 35 kHz deviation (IEC-weighted), maximum modulation 75 kHz
Total Harmonic Distortion<=1% (10 kHz deviation at 1 kHz)
Sensitivity24 dBV (S/N 60 dB at 5 kHz deviation, IEC-weighted)
Intermediate Frequency243.950 MHz, 10.7 MHz
Audio OutputUnbalanced: 50 mV (at 1 kHz, 5 kHz deviation, 10k ohm load)Balanced: 32 mV (at 1 kHz, 5 kHz deviation, 10k ohm load)
Output ConnectorsUnbalanced: 1/4" TS ("mono") phone jack Balanced: XLRM-type
Power Supply120V AC 60 Hz, or 12-18V DC, 500 mA, center positive, with external supply
Dimensions8.27" (210.0 mm) W x1.93" (49.0 mm) H x7.20" (183.0 mm) D
Weight2.4 lbs (1.1 kg)
Accessories IncludedAC adapter; two flexible UHF antennas; rack-mount adapters
HANDHELD TRANSMITTER SPECIFICATIONSRF Power OutputHigh: 30 mW; Low: 10 mW, nominal
Spurious EmissionsUnder federal regulations
Dynamic RangeATW-T341: >=110 dB, A-weighted
Microphone ElementATW-T341 Dynamic cardioid (unidirectional)
BatteriesTwo 1.5V AA alkaline (not included)
Current ConsumptionHigh: 230 mA; Low: 180 mA, typical
Battery LifeApproximately 6 hours (High); 8 hours (Low), depending on battery type and use pattern
DimensionsATW-T341: 9.33" (237.0 mm) long, 1.89" (48.0 mm) diameter
Net WeightATW-T341: 9.9 oz (280 g)(without batteries)
Accessory IncludedAT8456a Quiet-Flex' stand clamp
