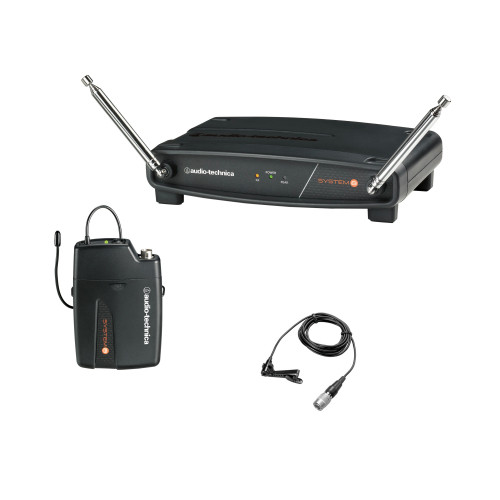

Audio Technica ATW801/L System 8 Lavalier Wireless Microphone System

• Easy operation and clear, natural sound quality
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range
• Power, RF, and AF Peak indicators
• Volume control, 1/4" output jack and user-adjustable squelch
• Rugged unidirectional dynamic element on handheld microphone/transmitter
• Variable microphone trim control and multi-color battery/power indicator, AA operation on transmitters
• Professional locking connector on UniPak body-pack transmitter

OVERALL SYSTEM SPECIFICATIONS
• Operating Frequency VHF highband, 169 MHz to 172 MHz
• Modulation Mode FM
• Maximum Deviation +/-10 kHz
• Dynamic Range >/=90 dB (A-weighted), typical
• Total Harmonic Distortion <1% (at 1 kHz, +/-10 kHz deviation)
• Operating Range 200' (60 m) typical (Open range environment with no interfering signals)
• Operating Temperature Range 40 F (4 C) to 110 F (43 C) (Battery performance may be reduced at very low temperatures)
• Frequency Response 80 Hz to 13 kHz

RECEIVER SPECIFICATIONS
• Receiving System Non-diversity, single-channel, dual antenna system
• Image Rejection 50 dB minimum
• RF Sensitivity 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Audio Output 1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load), nominal
• Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Dimensions 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
• Net Weight 11.8 oz (335 grams)
• Accessory Included Power supply

BODY-PACK TRANSMITTER SPECIFICATIONS
• RF Power Output 10 mW
• Spurious Emissions Following federal and national regulations
• Input Connections Four-pin Locking Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V
• Batteries Two 1.5V AA Alkaline (not included)
• Battery Life 8 hours (alkaline) (Depending on battery type and use pattern)
• Dimensions 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D
• Net Weight 3.0 oz (84.5 grams) (without battery)
