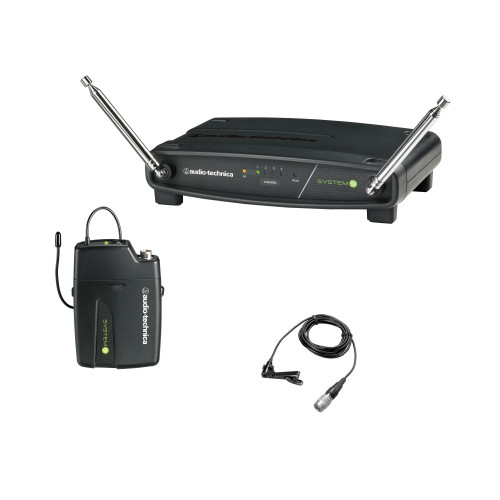

ATW-R900 receiver and ATW-T901 UniPak transmitter with omnidirectional lavalier microphone. Audio-Technica's System 9 is a four-channel frequency-agile wireless system designed to provide rock-solid performance along with easy setup and clear, natural sound quality.
Each System 9 configuration includes the ATW-R900 receiver. The ATW-R900 is a non-diversity, single-channel receiver with advanced dipole antenna design for extended operating range, which improves operation by providing a ground element in addition to the usual signal element. The ATW-R900 also offers volume control along with AF Peak, RF and Power indicator lights.
• Easy operation and clear, natural sound quality
• 4 selectable frequency-coordinated VHF channels
• Balanced XLR and unbalanced 1/4 output jacks enable use with a wide variety of audio gear
• Reliable performance and durable construction
• Advanced dipole antenna system for extended operating range
OVERALL SYSTEM SPECIFICATIONS • Operating Frequencies VHF highband, 169 MHz to 172 MHz
• Modulation Mode FM
• Maximum Deviation +/-10 kHz
• Dynamic Range >/=90 dB (A-weighted), typical
• Total Harmonic Distortion <1% (at 1 kHz, +/-10 kHz deviation)
• Operating Range 200' (60 m) typical (Open range environment with no interfering signals)
• Operating Temperature Range 40 F (4 C) to 110 F (43 C) (Battery performance may be reduced at very low temperatures)
• Frequency Response 80 Hz to 13 kHz
RECEIVER SPECIFICATIONS • Receiving System Non-diversity, single-channel, dual antenna system
• Image Rejection 50 dB minimum
• RF Sensitivity 20 dBuV at 60 dB S/N ratio (50 ohms termination)
• Audio Output Nominal Output Level:
XLR, balanced: 350 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
1/4" (6.3 mm), unbalanced: 700 mV (1 kHz modulation, 10 kHz deviation, 100k ohm load)
• Power Supply 100-240V AC (50/60 Hz) to 12V DC .5A (center positive) switched mode external power supply
• Dimensions 7.48" (190.0 mm) W x 1.82" (46.2 mm) H x 5.06" (128.5 mm) D
• Net Weight 12.0 oz (337 grams)
• Accessory Included Power supply
BODY-PACK TRANSMITTER SPECIFICATIONS • RF Power Output 10 mW
• Spurious Emissions Following federal and national regulations
• Input Connections Four-pin Locking Connector
Pin 1: GND
Pin 2: INST INPUT
Pin 3: MIC INPUT
Pin 4: DC BIAS +9V
• Batteries Two 1.5V AA (not included)
• Battery Life 8 hours (alkaline) (Depending on battery type and use pattern)
• Dimensions 2.76" (70.2 mm) W x 4.08" (103.7 mm) H x 0.98" (24.9 mm) D
• Net Weight 2.8 oz (80.0 grams) (without batteries)
