Audio Technica ATWR14 UHF Wireless Diversity Receiver

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

audio technica atwr14
Images may show accessories or configurations not packaged with this item.

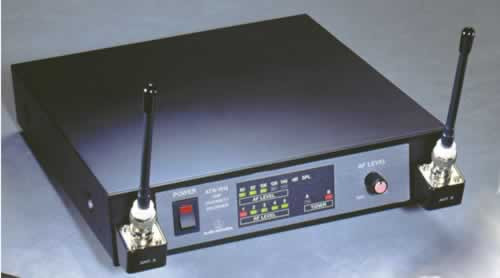

The all-metal UHF receiver is equipped with detachable front-mount antennas, balanced and unbalanced outputs, ground lift, adjustable squelch, rackmount capability and True Diversity reception.

• Receiving System Dual independent receivers, automatic-switching diversity reception
• Image Rejection 45 dB minimum
• Signal-to-noise Ratio 95 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
• Total Harmonic Distortion <=1% (10 kHz deviation at 1 kHz)
• Sensitivity <=20 V for 60 dB S/N (IEC-weighted)
• Audio Output Unbalanced: 280 mV (at 1 kHz, 10 kHz deviation, 10k ohm load)
• Balanced: 160 mV (at 1 kHz, 10 kHz deviation, 10k ohm load)
• Output Connectors Unbalanced: 1/4" phone jack
Balanced: XLRM-type
• Power Supply 12-18V DC, 500 mA
Dimensions 8.27" (210.0 mm) W x
1.93" (49.0 mm) H x
9.88" (251.0 mm) D
• Weight 2.9 lbs (1.3 kg)
• Accessories Included Two antennas, rack mount adapters, AD1205A AC adapter
