AudioTrak MAYA-1010 PCI Audio Interface

audiotrak maya-1010
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
MAYA1010 is a unique PCI multimedia digital audio interface also with a breakout box. MAYA1010 provides many powerful functions that will satisfy both beginners and professionals looking for high quality digital audio solutions.

Hi-end VIA Envy24(ICE1712) Controller:
MAYA1010 best utilizes the VIA Envy24
(ICE1712), a versatile professional PCI
multi-channel I/O controller, and provides
stable performance and a full featured high performance solution. With a integraded 36-bit wide digital mixing power of ENVY24, MAYA1010 can meet the most demanding playback and recording requirements.

Noise-less Recording with Hi-end Volume Controller:
MAYA1010 has Wolfson Microelectronics' WM8816 volume controller which provides clean line input recording and level gain(applied for input 1/2 and up to 0dB for the rest channels).

Professional digital recording device Analog 8 channel + 2 channel digital, total 10 channels of simultaneous inputs and outputs:
MAYA1010 is a professional digital recording device for hard disk recording applications. MAYA1010 is fully compatible with multi-track recording software such as Sonar/Cakewalk, Cubase, Logic, and Nuendo; mastering software such as Sound Forge and Wave Lab; software sampler like GigaStudio, EXS, and Halion and most of Virtual Instruments such as Reason and Reactor.

E-WDM driver and DirectWire 3.0 support:
AUDIOTRAK'S E-WDM DRIVER - Broad Compatibility, Access to Professional Audio Tools. Current software driver technology limits audio cards to processing only the audio streams delivered from Microsoft's WDM driver to the audio hardware. AUDIOTRAK's engineers developed E-WDM enhanced drivers that break the boundaries of the Microsoft WDM kernel's processing limitations. AUDIOTRAK's E-WDM drivers leverage the power of today's CPUs to apply virtual sounds and effects in real time to audio streams - just like the pros do it - within the E-WDM driver level. E-WDM drivers provide Audiotrak's MAYA44 MKII card broad compatibility with professional quality tools (WDM, ASIO 2.0, GSIF, and more) and the ability to exceed professional latency levels.

DirectWIRE3.0 is AUDIOTRAK's unique application that allows you to virtually patch all of your digital audio internally between various software programs. In this latest version, support for patching hardware inputs and mixing multiple audio streams at the inputs has been added. With E-WDM, MAYA1010 can simplify the hassles of wiring externally for inter-driver/inter-application audio data transfer. Especially when you use software synthesizers or virtual instruments, DirectWIRE 3.0 will help simplify your setup.

Supports up to 24Bit / 96kHz sampling rate
Extremely High Quality ADC and DAC:

MAYA1010 supports up to 96kHz sampling rate for digital recording. Full 24Bit/192kHz resolution DAC(96kHz bandwidth) with full duplex operation is available over 10 simultaneous inputs and outputs. The MAYA1010 will prove its value in Multi-track Recording, Mastering or DVD Audio applications.

Dual MIC INs and Headphone Outs:
MAYA1010 provides two microphone inputs and headphone outputs with zero latency direct monitoring when you record. The two headphone outputs are equipped with high grade headphone amps and the microphone inputs provide +12V phantom power.

One PCI card providing All-In-One Versatile Connections:

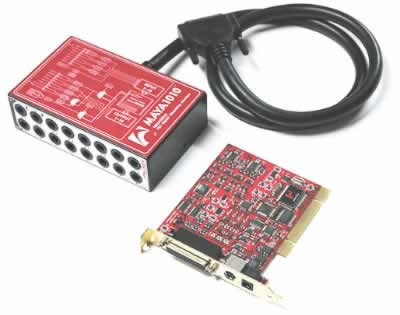

MAYA1010 provides the classic ESI type professional breakout box for all analog inputs and outputs. Plus, the MIDI I/O, Digital I/O Cable Connector will complete the MAYA1010 as true all-in-one recording card solution.

Multimedia / 7.1channels surround sound device:
MAYA1010 delivers ultra high-quality sound and adds unique features to your Windows audio system. MAYA1010 supports all popular audio formats such as MPEG, MP3, WAV, and multimedia formats such as DVD, Video CD, Flash and Internet Broadcasting. Digital audio is becoming more and more popular and with MAYA1010, you can complete your Desk Top Music Production System easily. MAYA1010 will be the center of your DTMP system providing professional studio quality sound, and easy access to the world of digital music and multimedia.

Analog Inputs:
• Connector Type : 1/4" female TRS-type, balanced or unbalanced(ch18)
• Peak level : 0dBFS @ +6.5dBV (-10dBV nominal)
• Impedance : 10k ohms minimum
• Att. & Gain Control : -60dB +15dB (0.5dB step size) *ch12 only

Analog Ouputs:
• Connector Type : 1/4" female TS-type, unbalanced(ch18)
• Peak level : +6.2dBV @ 0dBFS (-10dBV nominal)
• Impedance : 100 ohms
• Attenuation Control : -60dB 0dB (0.5dB step size)

Mic Preamplifier:
• Peak level : 0dBFS @ -40dBV
• Gain Adjustment : Gain +31dB up + -60 +15dB(0.5dB step size)
• +12V phantom power supply

Headphone Amplifier:
• Load Impedance Range : 32-300 ohm (for the best performance)
• Output Power : 125mW @ 32ohm per channel

Digital Audio
• Internal 20ch /36-bit Digtal Mixer(Input 10ch/Output 10ch)
• Sample rate supports : (22.05,24)*,32,44.1,48,88.2,96KHz : *analog only

A/D Converter:
• Signal to Noise Ratio : 107dB (A-weighted) @ fs=48kHz
• Dynamic Range : 107dB (-60dBFS with A-weighted) @ fs=48kHz
• S/(N+D)(-1dB) : 100dB @ fs=48kHz
• Interchannel Isolation : -110dB

D/A Converter:
• Signal to Noise Ratio : 112dB (A-weighted) @ fs=44.1kHz
• Dynamic Range (S/N) : 112dB (60dBFS with A-weighted) @ fs=44.1kHz
• THD+N : -94dB @ fs=44.1kHz
• Interchannel Isolation : -100dB
• Resolution : 24-Bit

Digital Input:
• Connector Type : RCA(provided via breakout cable)
• Format : IEC-60958 Consumer
• Sampling Rate : 32,44.1,48,88.2,96KHz
• Resolution : 24-Bit

Digital Output:
• Connector Type : RCA(provided via breakout cable), Optical(on-board)
• Format : IEC-60958 Consumer
• Sampling Rate : 32,44.1,48,88.2,96KHz
• Resolution : 24-Bit

• 1-in, 1-out 16 MIDI channels in and out
• Connector Type : Standard MIDI 5-pin DIN (provided via breakout cable) cable

Minimum System Requirements:
• Intel PentiumIII 800MHz or equivalent Intel
Celeron/ Pentium4/ AMD Athron/ AMD AthronXP/AMD Duron
• Motherboard with Intel chipsets(BX,820,815 and so on) or VIA chipsets
• At least 256MB of RAM
• One available PCI slot
• Microsoft Windows 98SE, Windows 2000 or Windows XP operating system
• Ultra DMA66/100 and 5400rpm hard disk drive

Additional Information

Product ConditionNew - On Clearance
