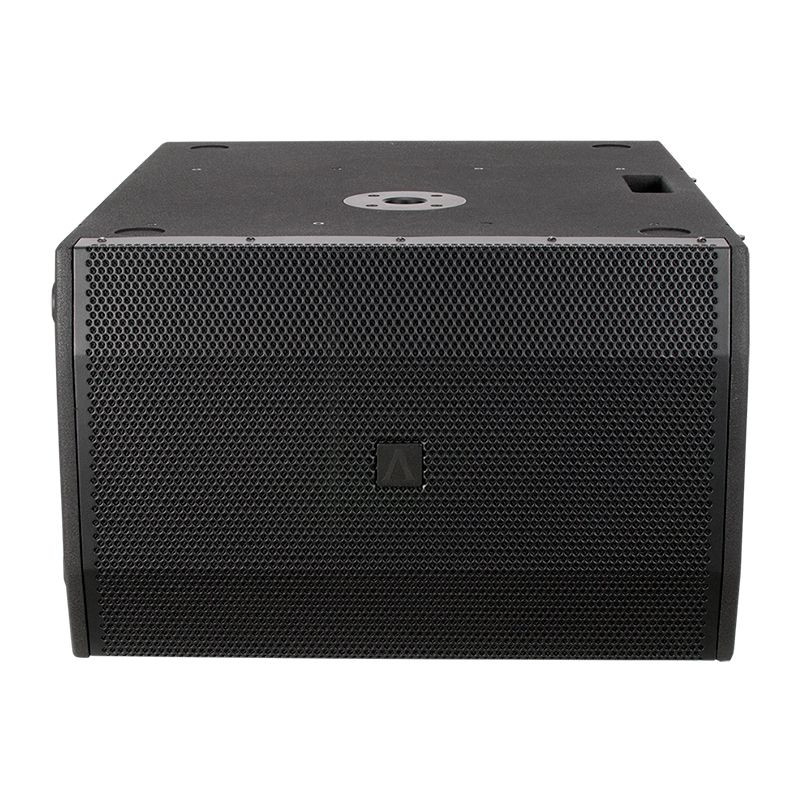

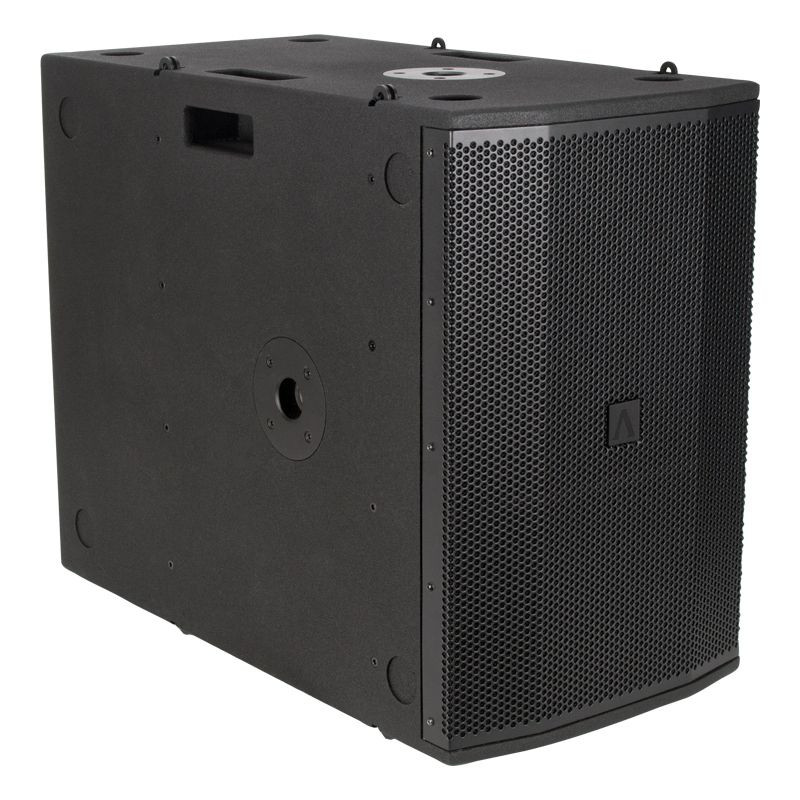

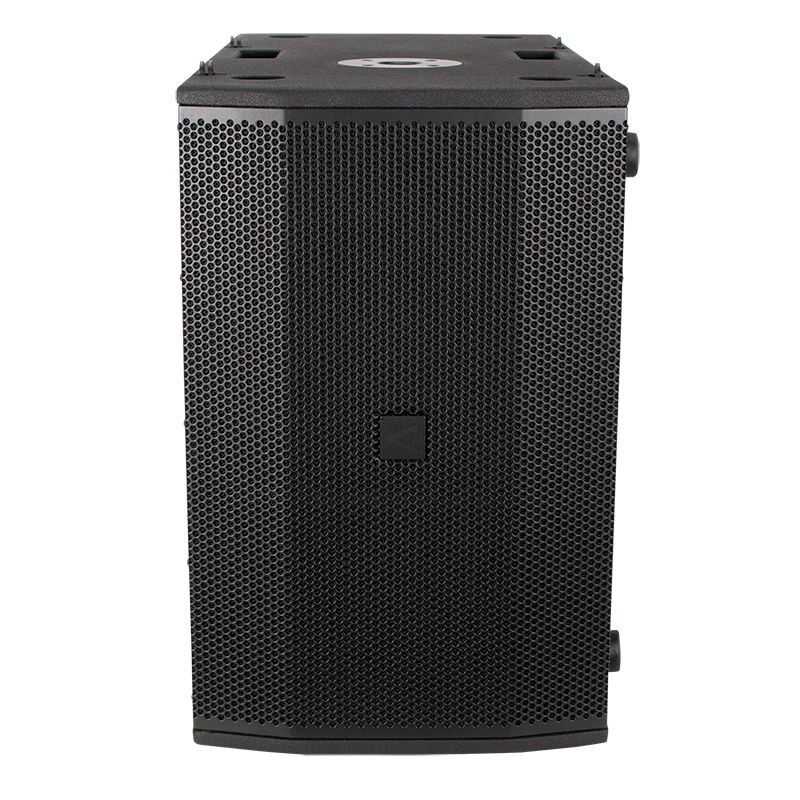

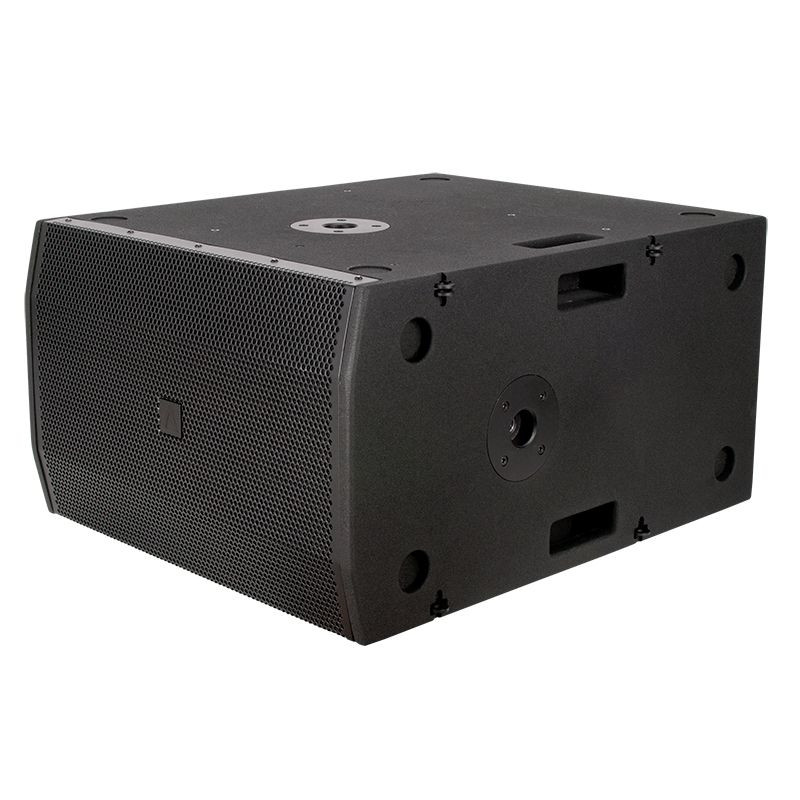

Dual 10-inch woofers with 700 watts RMS class D power amplifier. Part of the Imperio Mini Line Array System.
Avante Audio's Imperio mini line array system is a great fit for small to mid-size venues. If more bass is required, the Imperio Sub 210 is the perfect fit.
Avante Audio's Imperio mini line array system is a great solution for small to mid-sized venues and can be expanded by adding additional Imperio units as your needs require. The Imperio system consist of the Imperio mid/high unit which features dual 4.75" woofers and 6 inverted dome tweeters (IDVAT - Inverted Dome Vertical Array Technology) HF drivers, a 240 watt RMS class D power amplifier, and 24 bit DSP, the Imperio sub which has a 10" woofer along with a 350 watt RMS class D power amplifier and for when more bass is required, we recommend the Imperio SUB210 which features dual 10" woofers with 700 watts RMS (2 x 350 watt RMS, 2100 watt peak) class D power amplifier

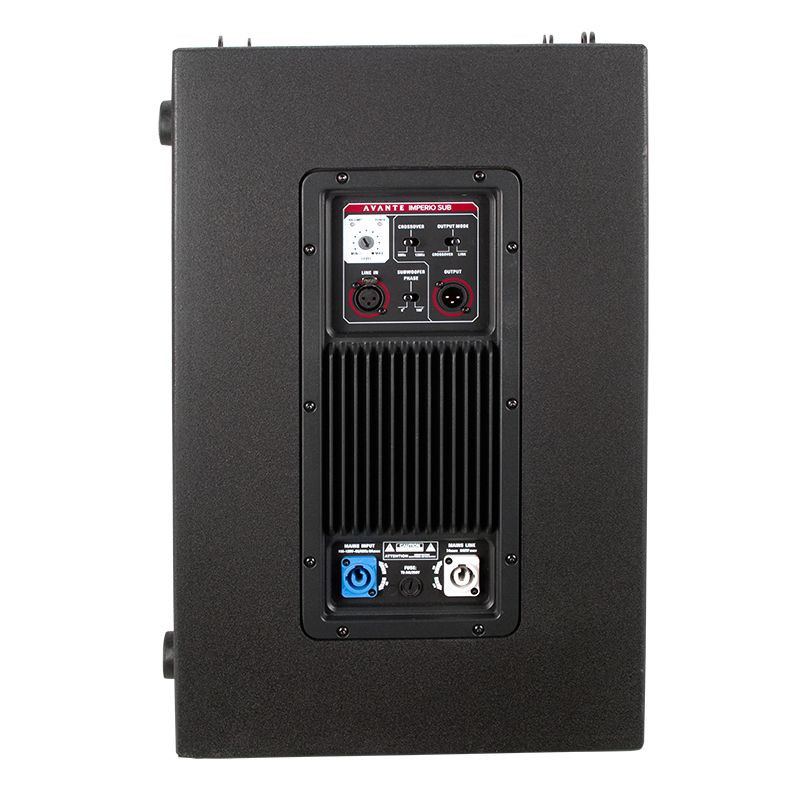

Amplifier Power (RMS): 700W, 1400W Peak
• 100-120V / 220-240V 50/60Hz (country specific)
• LED Power / Signal / Clip Indicator
• Input: 1x 3pin XLR and Locking Power Connector
• Output: 1x 3pin XLR and Locking Power Connector
• Phase Switchable (0 / 180)
• Internal Selectable X-Over 90Hz or 120Hz)
• Volume Control Dial
Driver• Driver: Two 10" woofers with 2.5" Voice Coils
• selectable crossover point: optional 90Hz/120Hz
• Max SPL: 124dB
• Flyable with optional flybar
• Inputs: 1 XLR
• Outputs: 1 XLR
• 6th Order Bandpass Design
• (2) M20 Screw Pole Mount (Can be used vertically or horizontally)
• Grill: 1.2mm steel
• Cabinet: plywood
Included• Imperio Flybar LG
• Imperio Flybar Small
• Imperio Pole w/ Mounting Bracket
• Link Pin Kit
Approvals• ETL Approved
Dimensions: 26.4" x 14.25" x 22.6"
Weight: 76 lbs
