• A new high-performance compression driver for a smoother frequency response and lower distortion throughout the upper midrange frequencies.
• A new elliptical wave guide with more uniform dispersion.
• The addition of a voltage controlled amplifier (VCA) on all three amplifier channels to minimize the effects of amplifier clipping. This lowers the maximum distortion produced at VERY high drive levels and offers additional protection for the speaker components.
• More durable FREE dust cover.
• Improved B-52 handles.

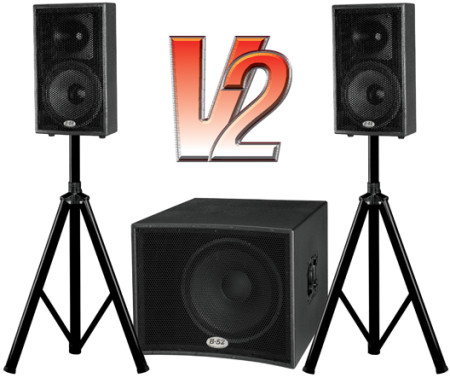

Stack, Rock and Roll
To transport the MATRIX-1000 V2, simply set the subwoofer on its casters and place the satellite speakers on to the subwoofer's front panel, facing down. Fasten the satellites with the included locking strap using the handles on either side of the subwoofer cabinet. Place the included cover over the entire system and you're ready to move the MATRIX-1000 V2 with ease.

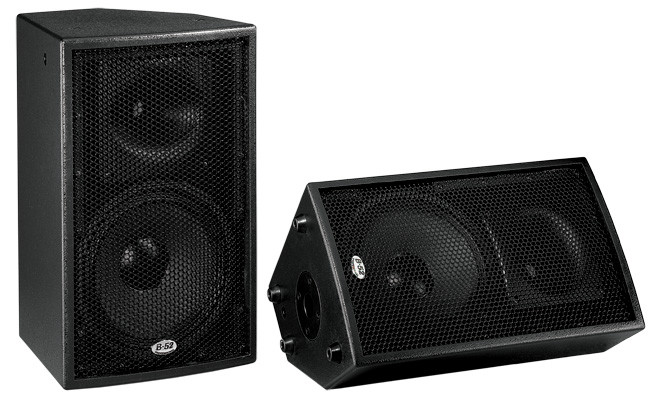

10" Two-Way SatellitesPole Mountable, Flyable Or Angled For Use As Stage Monitors
The MATRIX-1000 V2 satellites are loaded with a custom designed 10" speaker and 1" titanium diaphragm compression driver. The "horn" is a 900 by 600 elliptical waveguide that can be rotated 900 to optimize the dispersion pattern to best suit your particular application. These versatile speakers are pole-mountable and can sit as stage monitors. They also include internal 3/8" - 16tpi flying hardware for small venue permanent installations. The rounded front of the satellite speaker is a perfect fit for the convex face of the subwoofer, allowing a mobile entertainer to stack, roll and transport the entire MATRIX-1000 V2 in and out of a venue in record time.
Built-in 700-watt three-channel amplifier
The 15" subwoofer enclosure has two separate compartments. The front chamber serves as the cabinet for the custom B-52 15" subwoofer. The rear chamber houses all of the MATRIX-1000 V2's electronic circuitry. This includes a 400-watt amplifier for the subwoofer, 2 x 150-watt amplifiers for the satellites, electronic crossover, VCA compressor, electronic equalization, pre-amp and power supply.
Subwoofer Amp Output: 400 Watts
Satellite Amp Output: 2 x 150 Watts
Line in: XLR Female
Parallel out: XLR Male
Input Impedance: 48 k Ohms
Speaker Out: Speakon-style Connector
Crossover Frequency: 120 Hz; 24 dB / Octave
10" Two-Way Specifications
Speaker Input: Speakon-style connector (pin 1+ = +, pin 1- = -)
LF/MF Woofer: 10" Custom-built Transducer
HF Driver: 1" Titanium Diaphragm on Elliptical Wave Guide
HF Dispersion: 90 x 60 (upright)
Nominal Impedance: 8 Ohms
Active Freq. Response: 120 - 19K Hz +/- 3dB
Crossover Freq. (passive): 2.5k Hz; 12 dB / Octave
SPL (1w/1m): 101 dB (half space)
Max. SPL: 124 dB
Weight: 30 lbs
Dimensions (Upright): 19" (H) x 12" (W) x 11" (D)
Speaker: 15" Custom-built Subwoofer
Nominal Impedance: 8 Ohms
Sub. Freq. Response: 40 Hz - 120 Hz +/- 3dB
SPL (1w/1m): 102 dB (half space)
Max. SPL: 127 dB
Weight: 120 lbs
Dimensions (Transit): 28" (H) x 19" (W) x 23" (D)
Complete System Weight: 180 lbs
Dimensions (Transit): 39" (H) x 19" (W) x 23" (D)
DOES NOT INCLUDE CABLES
Requires (2) Speak-on to Speak-on speaker cables to connect sub to satelite speakers, and speaker stands if desired.
