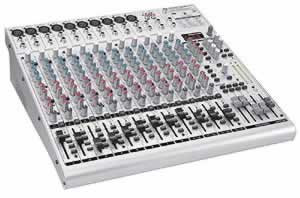

This is the big kahuna of the whole UB Series. You get all the features you'd expect in an ultra high-quality compact mixer: 16 balanced high-headroom line inputs with dedicated gain controls on stereo channels 13-16, 10 new state-of-the-art, studio-grade IMP "Invisible" Mic Preamps, and an effective, extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels.
There is also an integrated 24-bit digital stereo FX processor with 99 great-sounding VIRTUALIZER presets.
Because of their extensive and carefully thought-out routing possibilities, these consoles lend themselves equally to both live and studio use. The prime suspects are high-quality recording studios as well as MIDI-studio applications, small-size PA applications (solo entertainers, duos to quartets, small bands), video edits and similar setups.
FEATURES:• Ultra low-noise ULN design, highest possible headroom, ultra-transparent audio
• 10 new state-of-the-art, studio-grade IMP "Invisible" Mic Preamps with:
- 130 dB dynamic range for 24-bit, 192 kHz sampling rate inputs
- Ultra-wide 60 dB gain range
- Lowest possible distortion 0.0007% (20 Hz - 20 kHz)
• Integrated 24-bit digital stereo FX processor with 99 great-sounding VIRTUALIZER presets including reverb, delay, chorus, compressor, tube distortion, vinylizer and more plus 1 kHz test tone generator
• Effective, extremely musical 3-band EQ with semi-parametric mid band plus switchable low-cut filter on all mono channels
• Channel inserts and direct outputs on each mono channel plus main mix inserts for flexible connection of outboard equipment
• 16 balanced high-headroom line inputs with dedicated gain controls on stereo channels
13 - 16
• State-of-the-art 4580 operational amplifiers provide lowest noise and distortionbetter than 4560 op amps
• 2 headphones outputs
• 4 aux sends per channel: 2 pre/post fader switchable for monitoring/FX applications, 2 post fader (for internal FX or as external send)
• Peak LEDs, mute, main mix and subgroup routing switches, solo and PFL functions on all channels
• 4 subgroups with separate outputs for added routing flexibility
• 4 multi-functional stereo aux returns with flexible routing
• Balanced main mix outputs with TRS and gold-plated XLR connectors, separate control room, headphones and stereo tape outputs
• Control room/phones outputs with multi-input source matrix
• Tape inputs assignable to main mix or control room/phones outputs
• Switchable +48 V phantom power for condenser microphones
• Long-wearing 60 mm logarithmic-taper ALPS faders and sealed rotary controls
• BNC connector for standard gooseneck lamps
• Internal switch-mode power supply for maximum flexibility (100 - 240 V), noise-free audio, superior transient response plus lowest possible power consumption for energy saving
• Extremely rugged steel construction ensures long life even under the most demanding conditions
• Rack mount brackets included
• Manufactured under ISO9000 certified management system
