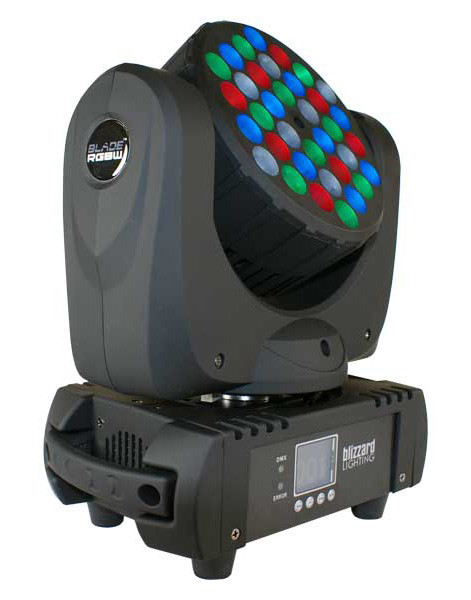

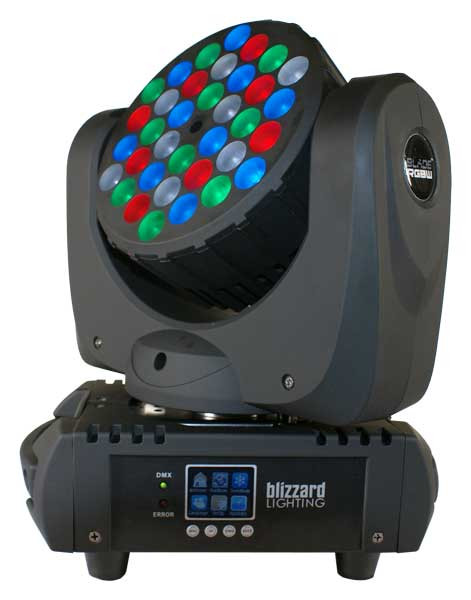

Packed with 36 5-Watt CREE Red/Green/Blue/White LEDs and coupled to an all-new, incredible 1.1 degree beam angle optic system, the Blade' RGBW is an incredible aerial performer packed in a tiny, lightweight package. Plus, thanks to advanced motor technology and innovative design, the Blade' is the fastest, most accurate moving head we've ever offered... by far!
The Blade' is a snap to program and easy on the eyes, too, thanks to its full-color LCD-TFT display with icon-based navigation. Plus, the fixture has plenty of extras usually only found on fixtures with a much higher price tag. PowerCON' compatible power in and out connectors make for secure power connections, user selectable 16-bit dimming, defeatable pan/tilt correction with trim adjustment, auto standby after DMX signal loss and fixture ID addressing are all included!
Finally the Blade' RGBW easily converts from a dazzling beam fixture to a versatile 8.8-degree soft-edged wash fixture by attaching the included diffuser lens. It's like having two fixtures in one!
So get ready to slice and dice, and pick up your Blade' RGBW's today!
• 36x 5-watt R/G/B/W CREE LED's
• User selectable 11 or 15 DMX channels
• Razor-sharp 1.1 beam angle + attachable 8 diffuser lens

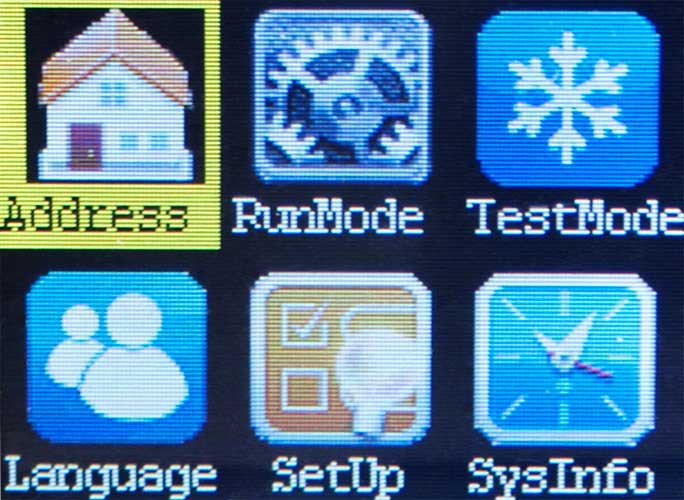

• 4-button menu with LCD-TFT icon-based display
• Full color mixing in standalone, master/slave and DMX modes
• Built-in automated programs via master/slave
• Built-in sound activated programs via master/slave
• User selectable 16-bit dimming
• Defeatable pan/tilt correction with trim adjustment
• Auto standby after DMX signal loss
• Fixture ID addressing
• 3-pin male input and 3-pin female output

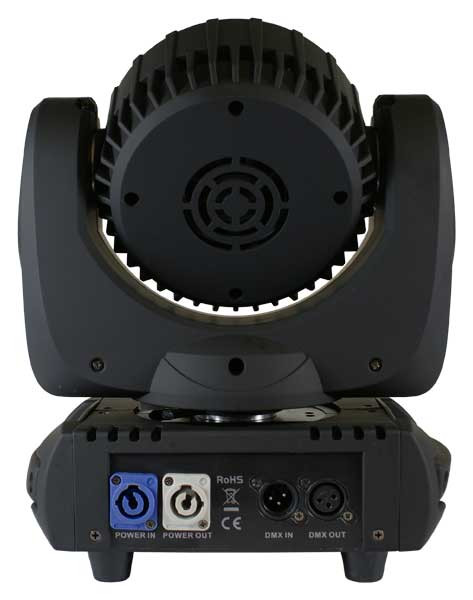

• PowerCon' compatible AC power In/Out connectors
• Compact, high quality housing
• Operating Voltage: AC 120VAC, 60 Hertz
• Power Consumption: 148W, 1.84A (full white)
• Power Factor: .67
• LED: 36x 5-watt R/G/B/W CREE LED's
• Beam Angle: 1.1 (8 with diffuser lens)
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
• Protocol: USITT DMX-512
• DMX Channels: 11 or 15 Channels
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset
Weight & Dimensions
• Length: 13.4 inches (34 cm)
• Width: 9.5 inches (24 cm)
• Height: 14.8 inches (37.5 cm)
• Weight: 11.5 lbs (5.2 kg)
• 2-year limited warranty, does not cover malfunction caused by damage to LED's.
