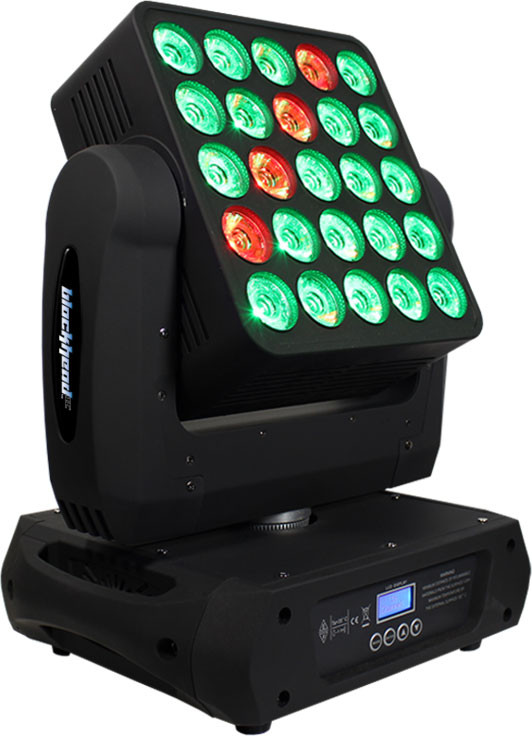

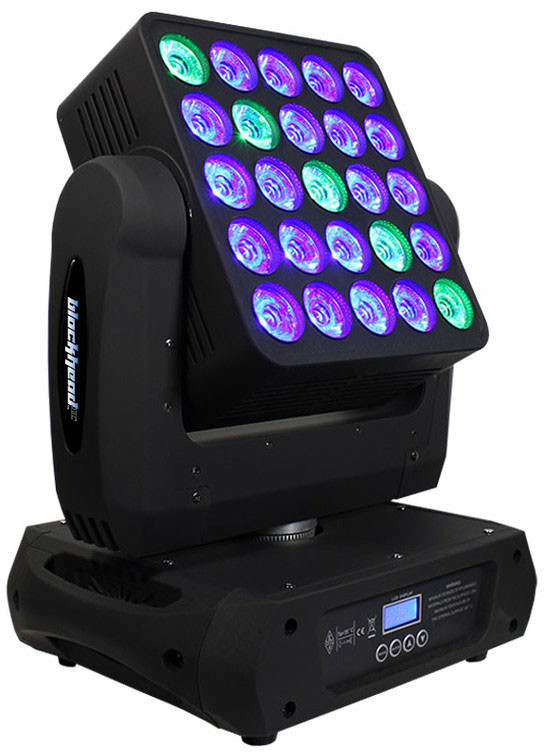

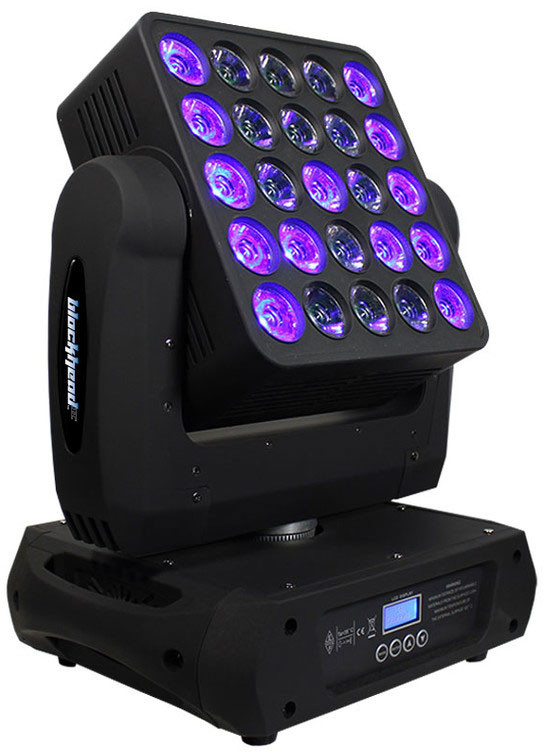

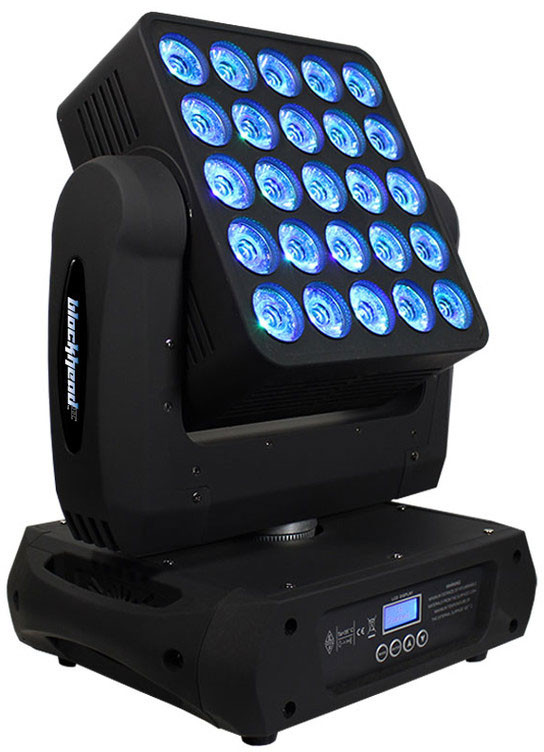

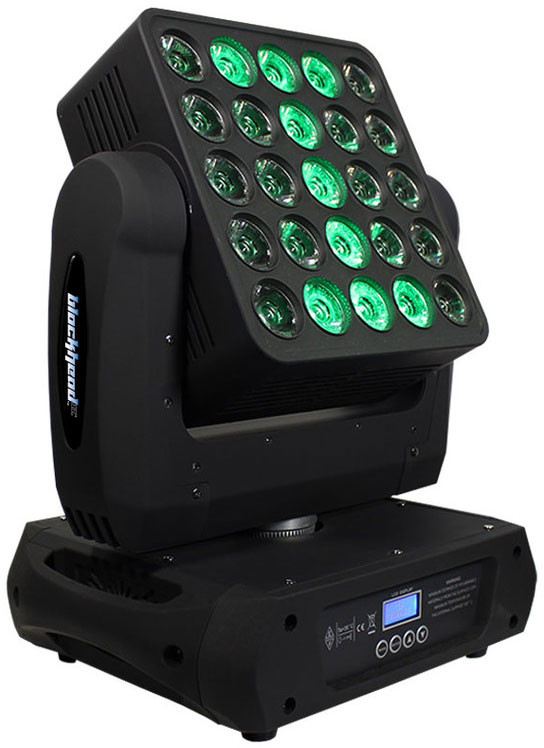

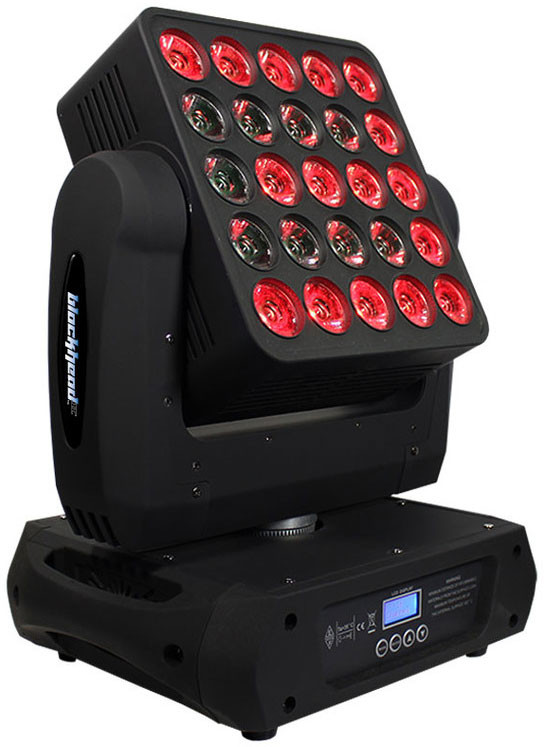

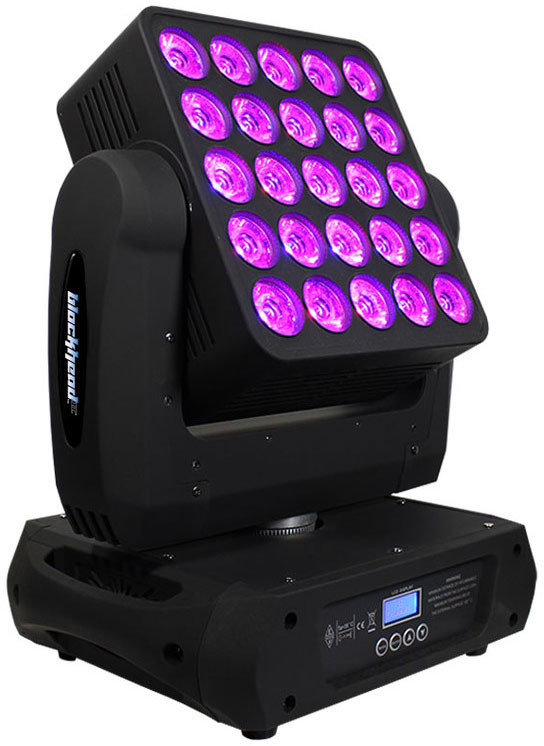

Don't let the name fool you, BlockHead II 5x5 LED pixel matrix moving head fixtures are an infinite pan & tilt marvel that is sure to be part of the hip crowd! They feature individual pixel control of each of their 25* 4-in-1 RGBW CREE LEDs, allowing personal customization for any user. BlockHead II fixtures are bright, super well-built, and feature rich professional pieces of equipment that are sure to be a hit on the highest level of lighting rigs.
VIDEO
BlockHead II Features • 5x5 pixel matrix moving head w/25x CREE 12w RGBW LEDs
• Infinite pan and tilt
• 3-phase pan/tilt motors with 16-bit resolution
• User selectable 19/29/117-channel DMX modes
• Individually controllable 4-in-1 LED pixels via 117ch DMX
• Full RGBW color in standalone & DMX mode
• Display built-in numbers, letters, and graphic effects
• 7 degree beam angle
• Built-in sound active programs
• Built-in automated programs via master/slave
• Built-in sound activated programs via master/slave
• 3-pin male input and 3-pin female output
• PowerCon' compatible AC power In/Out connectors
• Protocol: USITT DMX-512
• DMX Channels: 19/29/117
• Operating Modes: Standalone, Master/Slave, Auto, Sound Active
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• LCD 4-button control panel
• 7 degree beam angle
• Pan: Infinite
• Tilt: Infinite
• Operating Voltage: 90-260VAC, 50-60Hz
• Power Consumption: 284W, 2.58A, PF:.99
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
• Width: 15.25 inches (38.74 cm)
• Depth: 19 inches (48.26 cm)
• Height: 15.25 inches (38.74 cm)
• Weight: 32.6 lbs (14.8 kg)
Besides their never-ending movement and solid color blinding ability, BlockHead' II fixtures allow users to easily get their message across with built-in numbers, letters and graphic effects, even in lower channel DMX modes, making it easy to program words and images without having to use it in individual pixel mode. It has 3 user-selectable DMX modes with 17, 29 or 117 channels to choose from, and can be used with third-party software such as MADRIX', if the user so desires. Then with its tight 7 beam angle, it definitely creates some amazing effects while surrounded by fog!

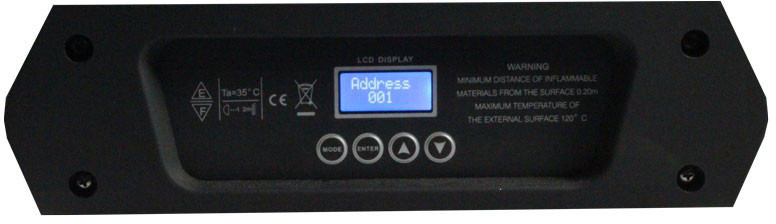

It comes equipped with an easy-to-use LCD 4-button control panel, industry standard PowerCON compatible power In/Out connections, DMX In/Out jacks, and dual quarter-turn "Omega" quick connect type clamp brackets, making this one highly engineered, superior moving head wash fixture.
BlockHead' II fixtures also come stocked with an excellent selection of built-in automated and sound active programs, as well as master/slave options.
Being an insanely bright and a beautiful model of what a high-quality fixture should look and perform like... the BlockHead' II cannot be overlooked!
