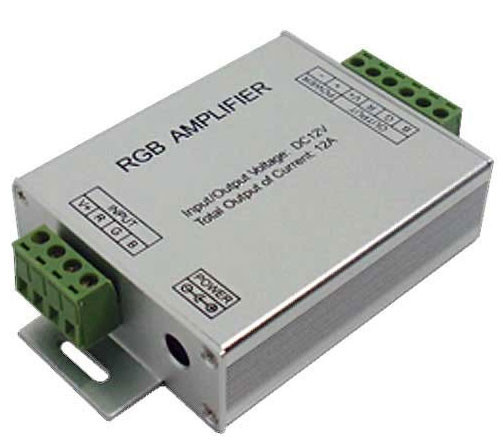

The Komply' RGB amplifier is designed to receive and amplify PWM (Pulse Width Modulation). With the addition of an RGB amplifier, the number of connected LEDs can more than double.
• Working temperature: -4-140F
• Supply voltage: DC12V
• Output: 3 channels
• Connection: common anode
• External dimension: 4.14 x 2.26 x 1 inches (105 x 65 x 25mm)
• Weight: 145g
• Static power consumption: <1W
