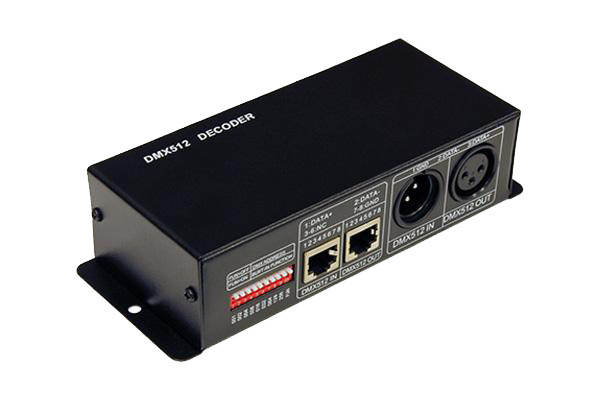

This is a 4-channel DMX512 decoder that can control up to 4 different 12V LED ribbon products or any one RGB(W) LED strip. It can run in stand-alone mode by via the DIP switches or under DMX512 control using XLR or RJ45 DMX512 Input/Output connections.
It converts DMX signal to PWM signal, which can be controlled by a DMX512 console with 256-grayscale levels per channel. It also includes one male, and one female 3-pin XLR connector.
• Easy to mount and configure
• DMX address configurable via dip switches
• 256 level brightness control
Overview:DMX In/Out: RJ45 and XLR
7x static colors + auto in standalone
Grayscale: 256/channel
PowerInput voltage: 12V to 24V
Input DMX Signal: DMX512/1990 digital
Output Signal: 4 channels @ up to 4A per channel
Output power: 12V:<108W, 24V:<192W
Dimensions: 6.5" L x 2.6" W x 1.6" H
Weight: 0.9 lbs
