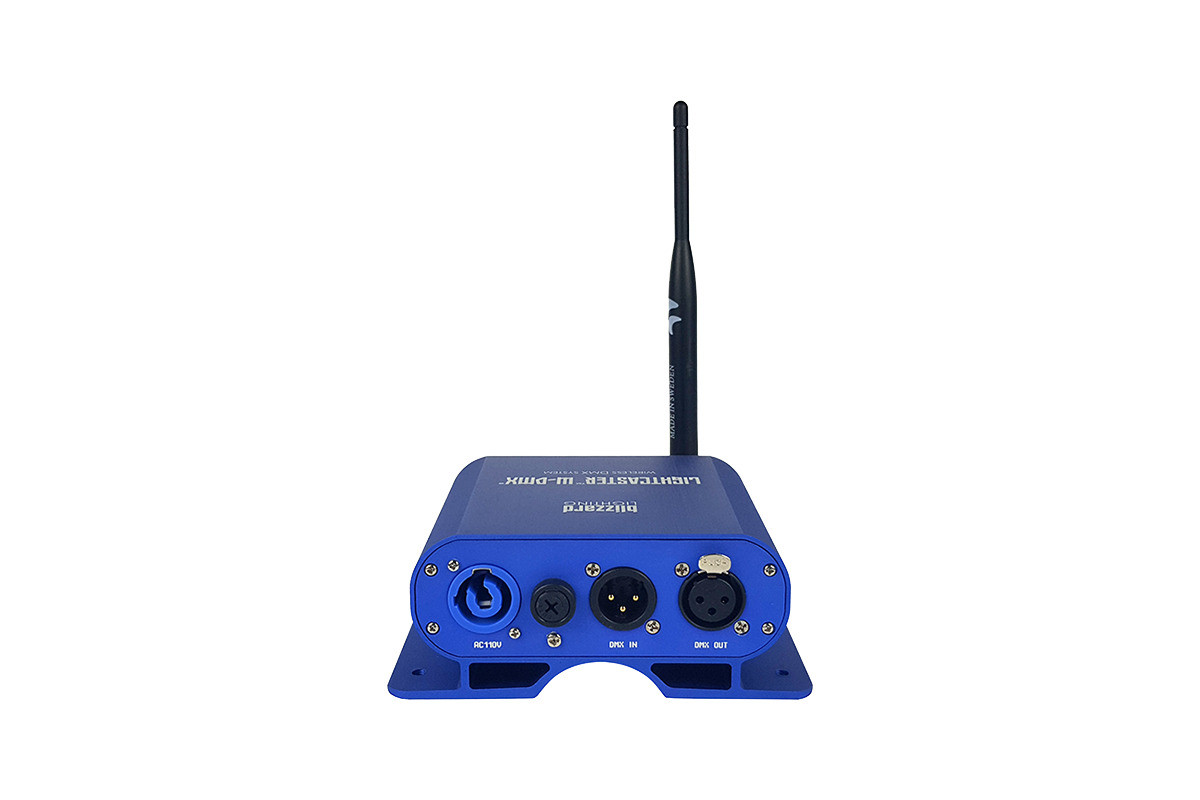

Meet the LightCaster' W-DMX 2.4 GHz wireless DMX system. A typical setup would consist of a Lightcaster' WDMX' Transceiver (to transmit signal) and at least one LightCaster' W-DMX Receiver to receive the signal. Users can expect a wireless range of up to 500 meters (line-of-sight), and leave any worries behind concerning loss of signal due to its built-in FHSS technology.

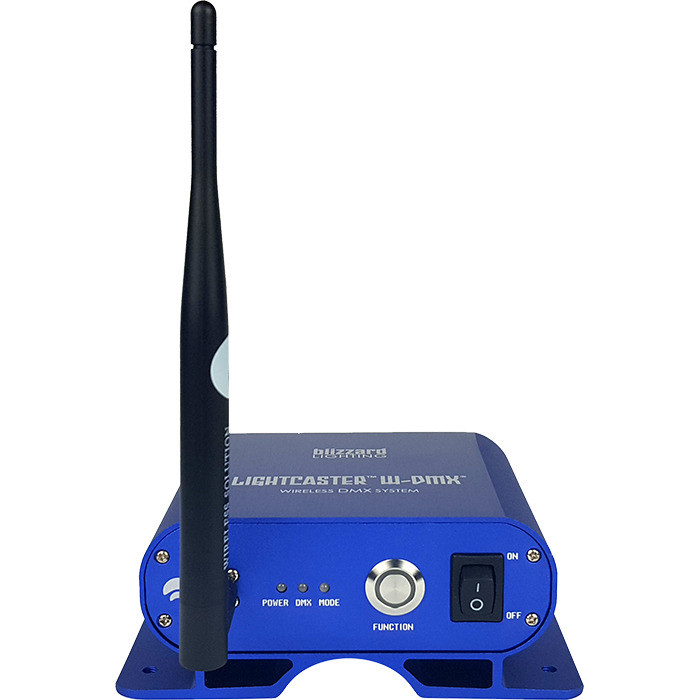

Setting up wireless DMX with the LightCaster' W-DMX is a very simple procedure. Each of the units have a single function control button, plus a power, DMX, and mode status LED indicator. Each unit also features an integrated clamp for mounting to 2" truss, is housed in a durable anodized aluminum casing, and is equipped with a powerCON compatible power connection.
• One button operation 2.4Ghz W-DMX wireless system
• W-DMX G5 Protocol backward compatible with G4S/G3
• Compatible with all DMX512 compliant equipment
OverviewOne button operation 2.4Ghz W-DMX wireless system
W-DMX G5 Protocol backward compatible with G4S/G3
Compatible with all DMX512 compliant equipment
FHSS (Frequency-Hopping Spread Spectrum) technology

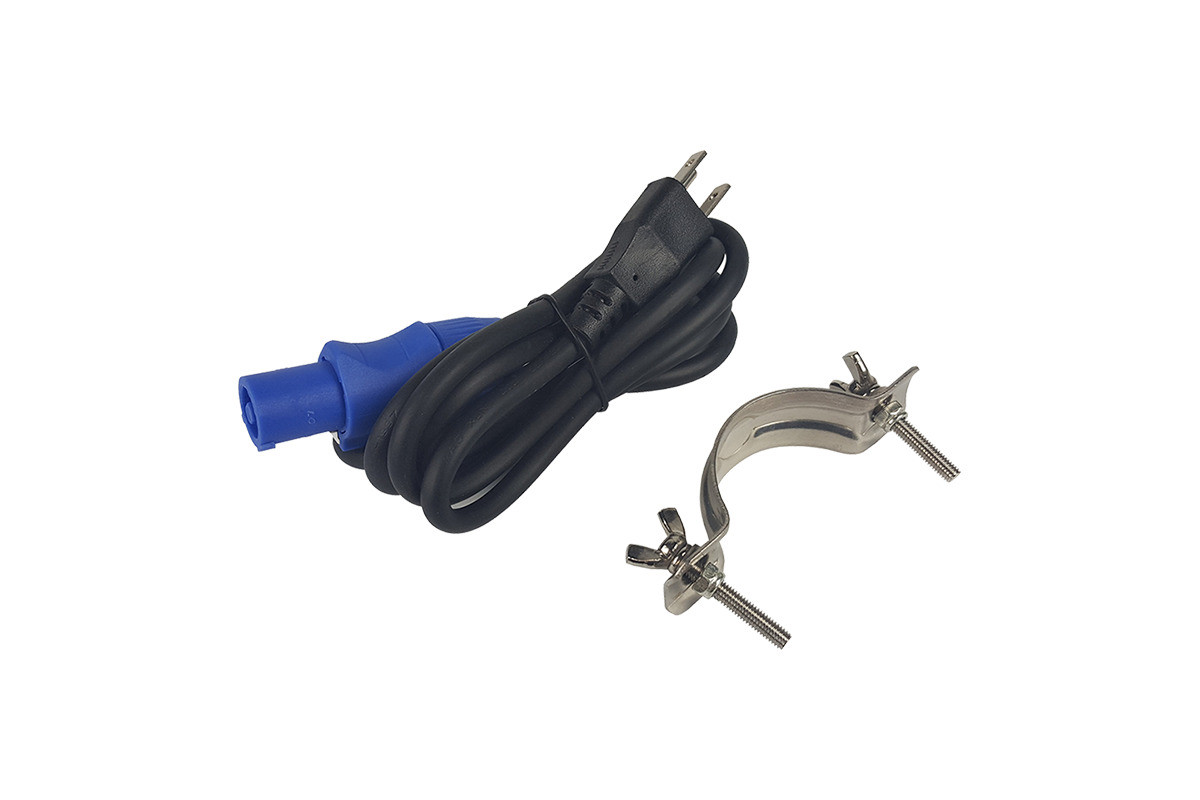

Integrated clamp for mounting to 2" truss
Tech SpecsReceiver sensitivity: 98dBm
Max Operating Range: 500 meters (line-of-sight)
Latency: < 5mS
Antenna type: 2dBi
PowerVoltage: 110VAC, 50-60 Hz
powerCON compatible power input
Dimensions: 5.7" L x 4.7" W x 2.4" H
Weight: 2.2 lbs
