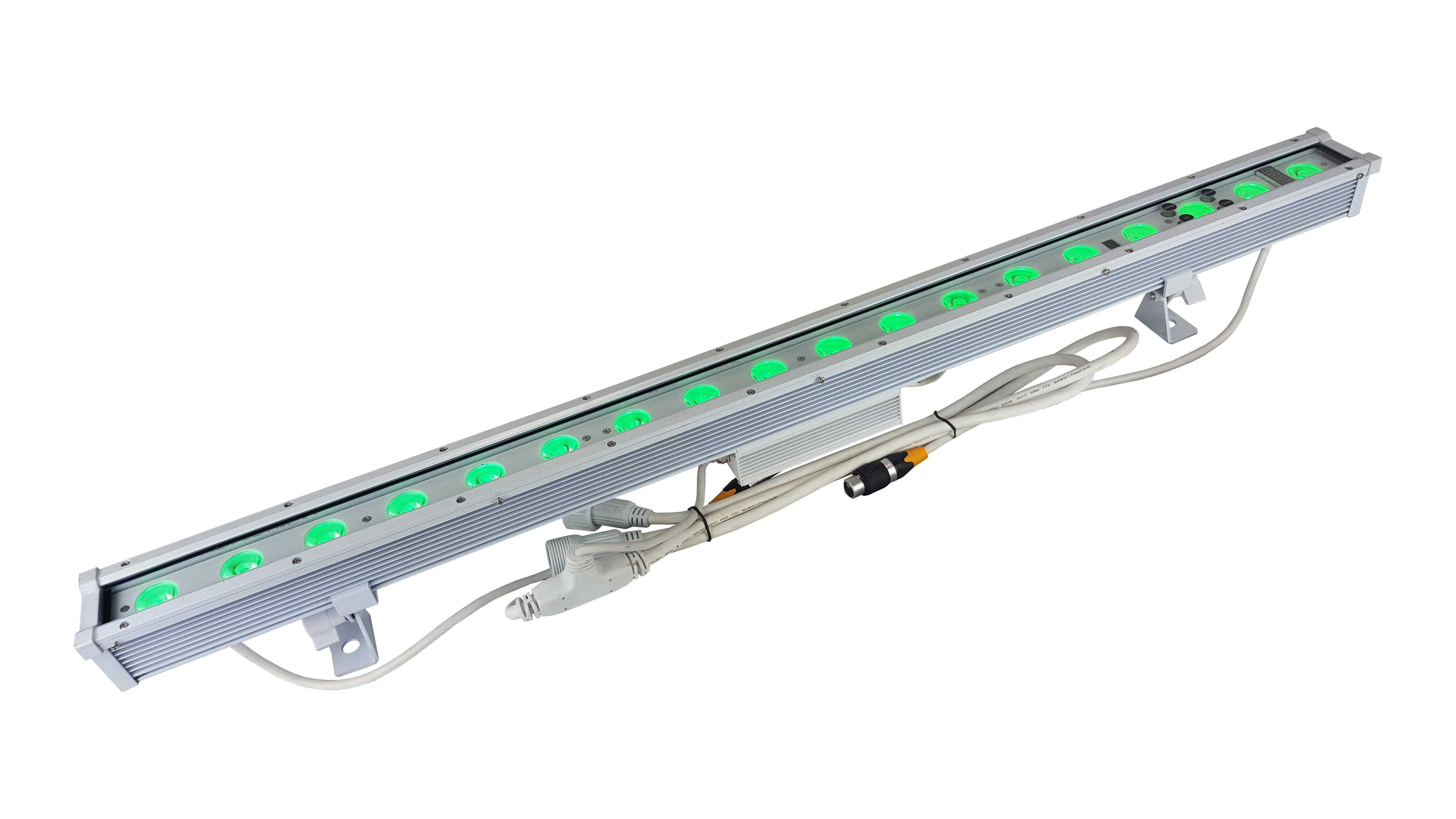

Motif' Vignette offers an 18x 10W RGB+WW LED light source, which when compared to fixtures with RGBW LEDs, the warm white can increase the CRI and better emulate the warmth of traditional tungsten filament fixtures. Perfect for sound sensitive environments, it also features a highly efficient, natural convection cooled housing.
This fixture can be controlled via 3/4/5/7 or 10-channels of DMX, or directly using the easy-to-use LED control panel found on the face of its water-tight tempered glass lens. It also comes with an IR remote control (IR-1 remote) that is super simple to use, and it offers the exact same functionality as the LED control panel.
• 18x 10W 4-in-1 RGB+WW LEDs
• Convection cooled design, zero fan noise
• IP65 rated, suitable for outdoor use
Optical18x 10W RGB+WW LEDs, 100,000 hours
Beam angle: 25 degrees
Luminous Intensity
6,030 Lux @ 1m, 2,895 Lux @ 2M
ControlUSITT DMX-512
DMX channels: 3/4/5/7 and 10-channels
3-pin DMX input/output
4-button LED control panel
IR-1 Remote (included)
Operating Modes: DMX512, M/S, Auto, Standalone
PowerOperating voltage: 100-264VAC, 50/60 Hz
Power Consumption: 83W, .98A, PF: .68
