Blizzard PIPELINE 19'' Rack Mountable DMX-512 Splitter

Dropships Ships Directly From The Supplier
Blizzard Lighting can usually ship this item directly to our U.S. customers after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
$159.99
Affirm Financing
Future Pay
X
    • BONUS! Buy Now and Earn 319 PDJ Bucks ($3.19)! MUST Be Logged In! Domestic U.S. customers only. Exact value may vary once logged in.

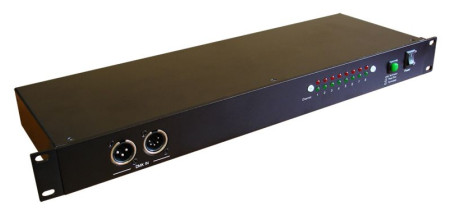

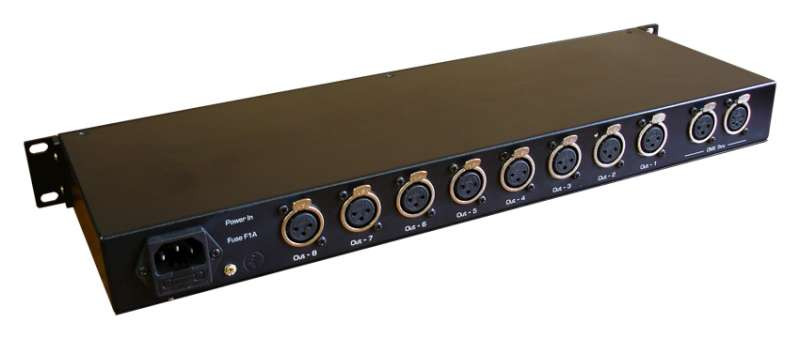

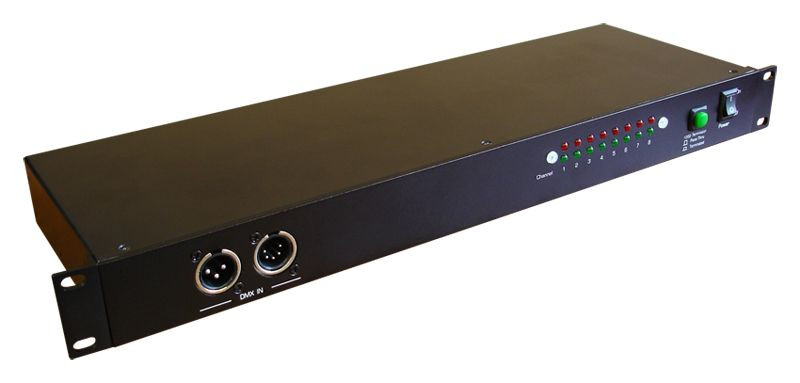

Blizzard Lighting is proud to introduce the Pipeline' 8-way DMX distributor. The unit has two inputs and eight outputs. It features absolute electrical isolation between input and outputs, and between all of the outputs. There are two types of DMX connectors (3-pin) for each individual channel. Each DMX output features an independent driver. With the Pipeline' you can run up to 32 units per one output channel.

FEATURES:
• Fully compliant to DMX-512 (1990)
• 3pin & 5pin DMX Input and DMX Thru
• 100% electrical isolation between in/output
• 100% electronic isolation between output/output
• Signal & power LED indicator for each output
• Termintor resistor switch for end of a DMX chain
• Power input via IEC connector on rear panel
• Removable rack wings for Rack mount or wall mount
• Anodized aluminum front panel

SPECIFICATIONS:
• Power input: AC120V 50Hz/60Hz
• Consumption: 10W
• Dimensions: 482 x 130 x 44mm
• Weight: 2.6KG

Additional Information

UPC662425034994
SKUPIPELINE
ManufacturerBlizzard Lighting
Product ConditionNew
ReturnableYes
