Solar System' features 3, 5 and 26 user selectable DMX channel modes. Simple RGB color mixing is a breeze in 3-channel DMX mode, while 5-channel mode gives you RGB mixing with master dimmer and strobe as well as color presets for each individual head. For the ultimate in control, 26-channel mode divides each head into 4 separate red/green/blue sections for pixel-mapping madness!
Auto and Sound Active modes feature 18 different built-in programs including a variety of unique 4-pixel chase effects in each of the 4 fixtures, plus static color and strobe effects.

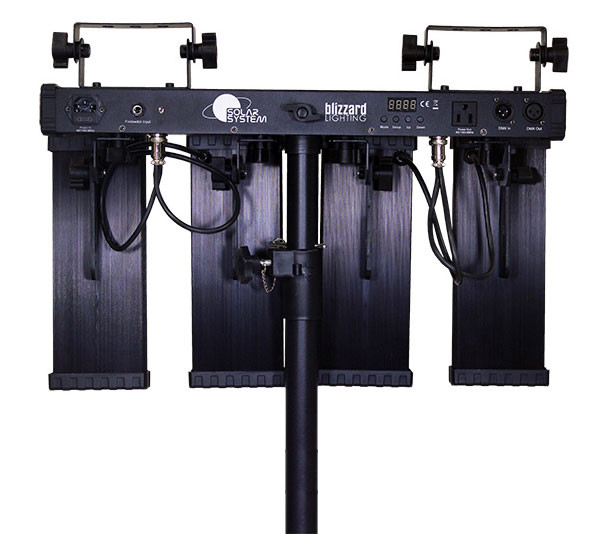

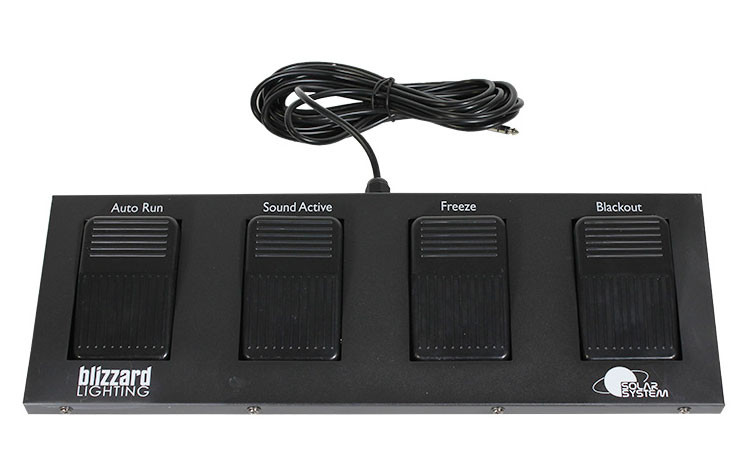

Controlling Solar System' is ultra-easy and ultra-flexible. Whether via DMX, a rear side 4-button LED control panel, or the included 4-pedal foot controller which allows you to step through the fixture's auto and sound active programs, freeze the fixture, or blackout. Solar System' is also wiCICLE enabled for easy use with our wiCICLE brand wireless DMX products. Plus, each fixture also swivels, tilts, adjusts to different heights for tons of positioning flexibility!
Solar System Features • User selectable 3/5/26 DMX channels
• 4x fixtures, each with R:48, G:36, & B:36 (480 total) 10mm LED's
• Independent fixture swivel/tilt positioning + height adjustment
• RGB color mixing in standalone, master/slave and DMX modes
• 4-pixel chase effects via 4 sections per each fixture
• Built-in automated programs via master/slave
• Built-in sound activated programs via master/slave
• Easy to use LED digital control panel
• 3-pin male input and 3-pin female output
• Adjustable stand, dual hanging brackets, & carrying case
• Heavy duty, black aluminum housing
Depth
• Main Unit: 6.5"(165 mm)
• Foot Controller: 6 inches (152.4 mm)
• Power Cord: 16 ft (5 meters)
Width
• Main Unit: 22.9"(580 mm)
• Foot Controller: 6 inches (152.4 mm)
Height
• Main Unit w/bracket: 11.62 inches (295 mm)
• Foot Controller: 2? inches (5.5 cm)
• Max. Safe Operating Height w/stand: 8 feet
Weight
• Main Unit: 10.15 lbs (4.6 kg)
• Foot Controller: 3.5 lbs (1.6 kg)
• Stand: 8 lbs (3.63 kg)
Power
• Operating Voltage: AC 120100-240VAC, 60 Hertz
• Power Consumption: 42W, 47A (full white)
• Fuse: 1A 125V
• Power Factor: .66
Light Source
• Light Source: 480* 10mm LEDs, 50,000 hours
Optical
• Beam Angle: 30 degree optics standard
Thermal
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
Control
• Protocol: USITT DMX-512
• DMX Channels: 3/5/26 Channels
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
• Operating Modes: Standalone, Master/Slave, Sound Active, Color Preset
Warranty
• 2-year limited warranty, does not cover malfunction caused by damage to LED's.
