• Single 150W white LED light source
• 16-bit smooth pan/tilt resolution
• Pan: 180 Tilt: 90 with 3-phase motors
• Automatic pan/tilt position correction
• User selectable 21/23/24-channel DMX modes

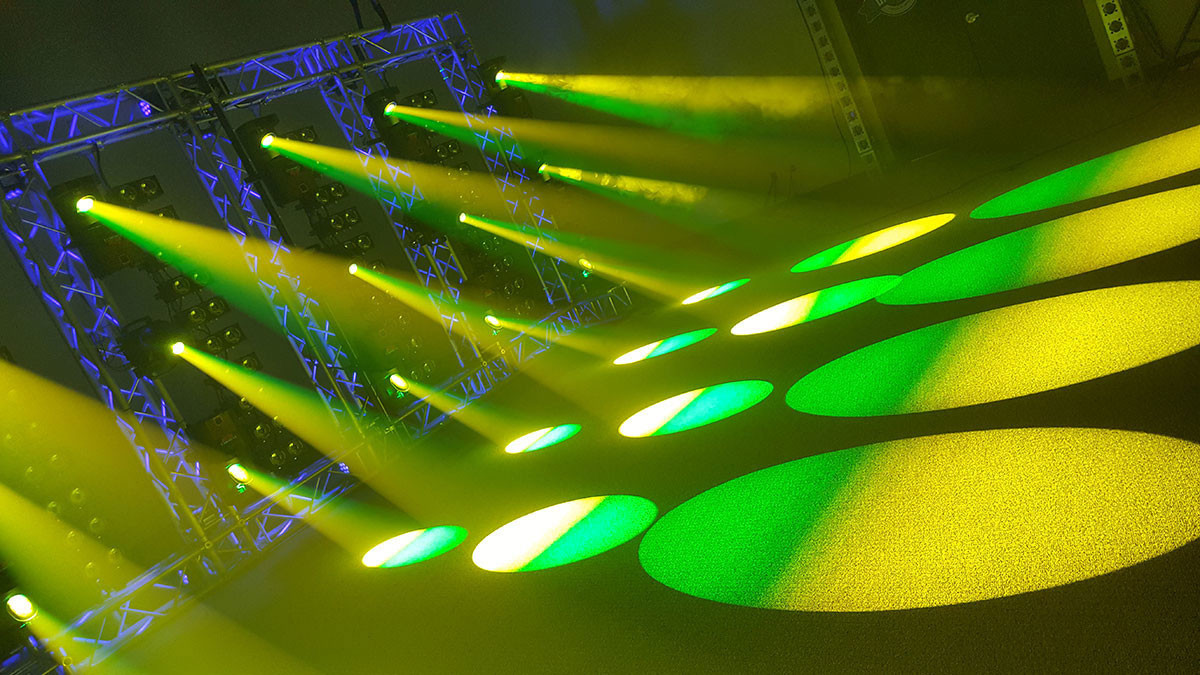

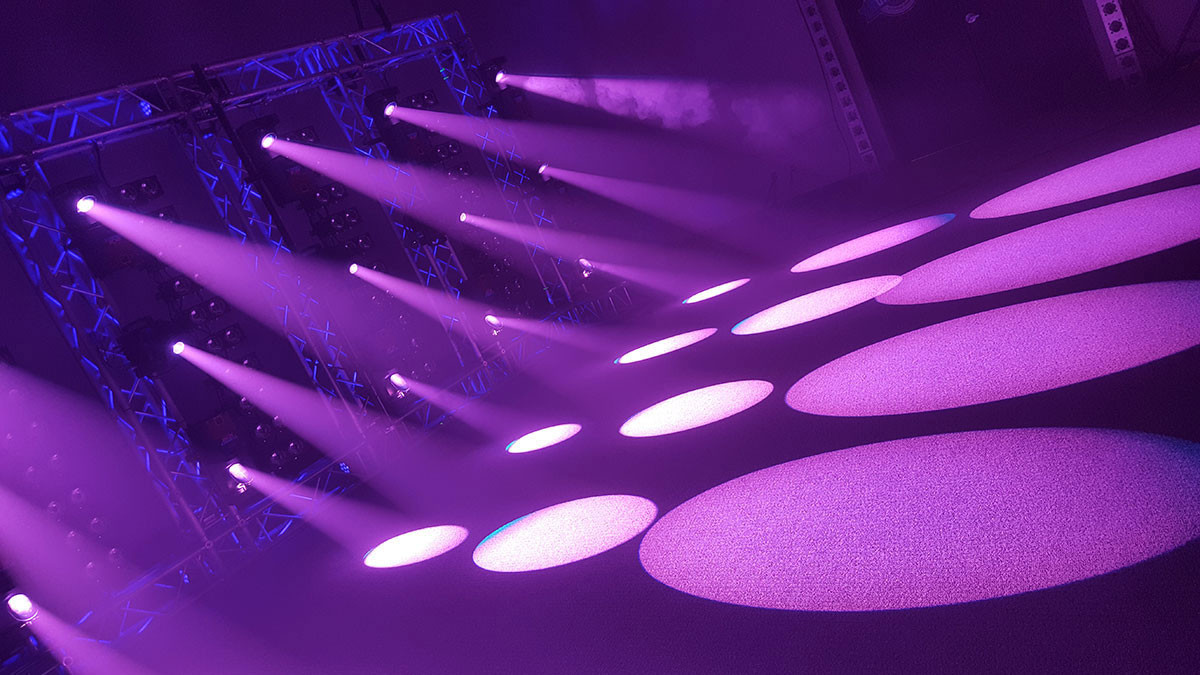

• 7 colors + open color wheel with half-colors
• 2 gobo wheels, 1 static/1 rotating both with 7 gobos + open
• 3/8-facet dual prism with variable speed and direction
• 0-100% linear LED dimmer
• Extremely silent cooling fans
• 3-pin and 5-pin male/female input and outputs
• PowerCon' compatible AC power In/Out connectors

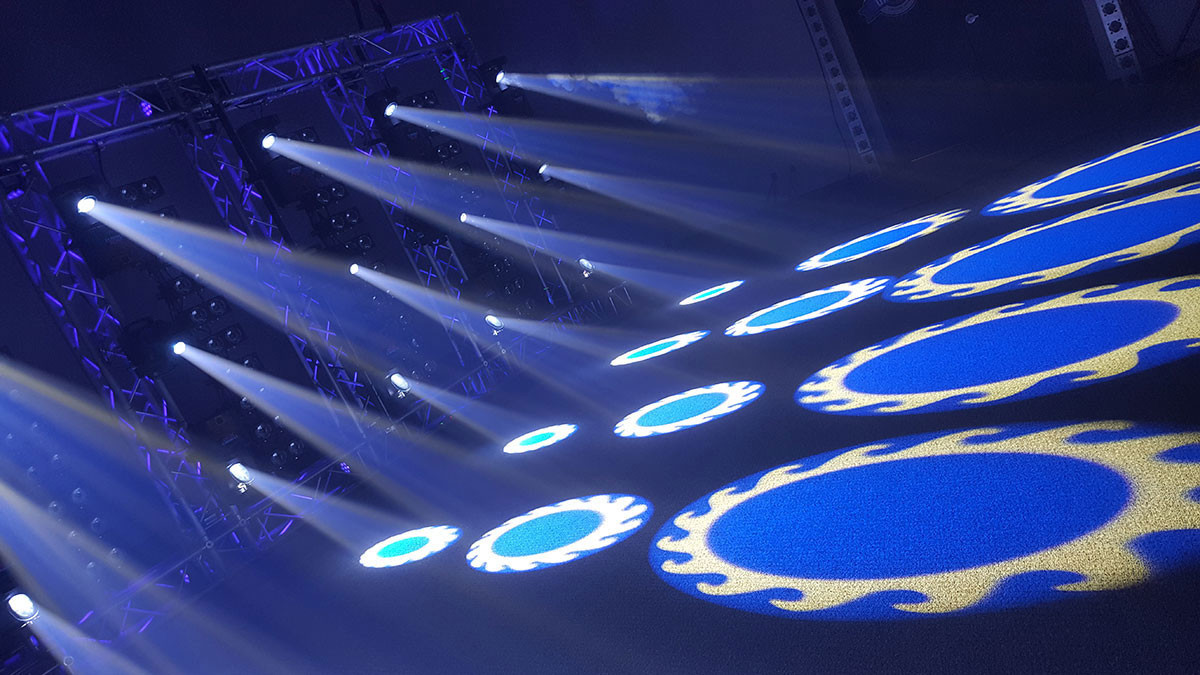

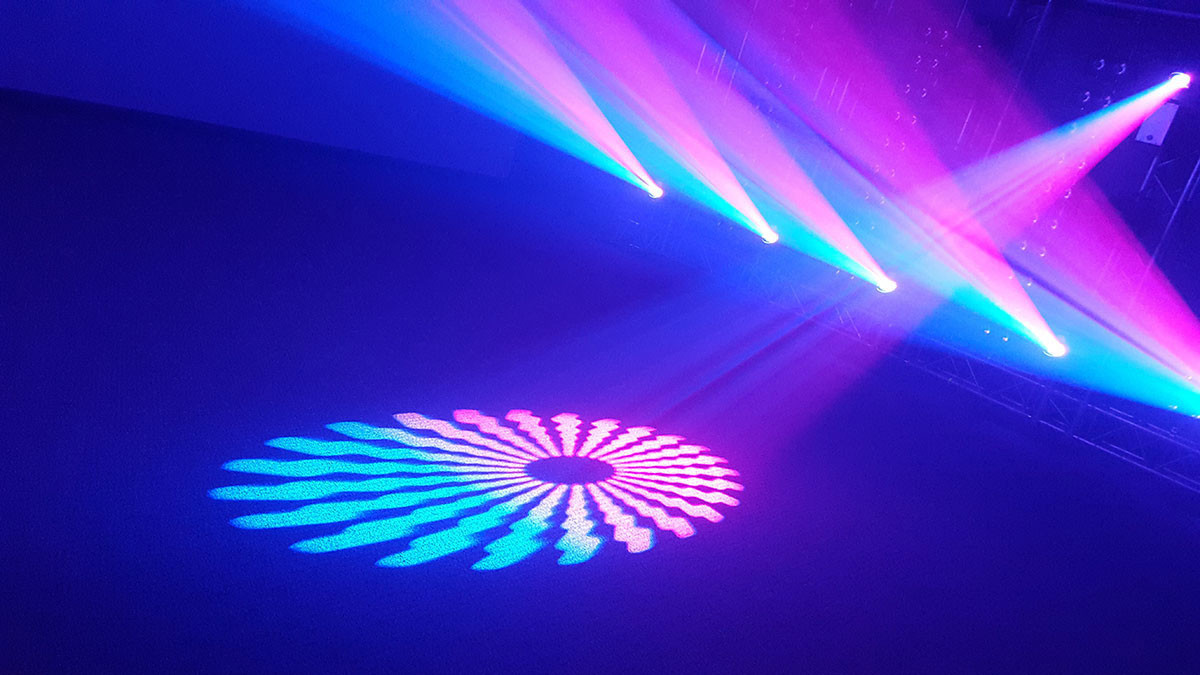

Turbo Scan' fixtures create crisp, clear beams and are equipped with two gobo wheels, each with 7 gobos, including 7 rotating, indexing and interchangeable. Glass? You bet! We've got 4 of them installed and ready to rock.

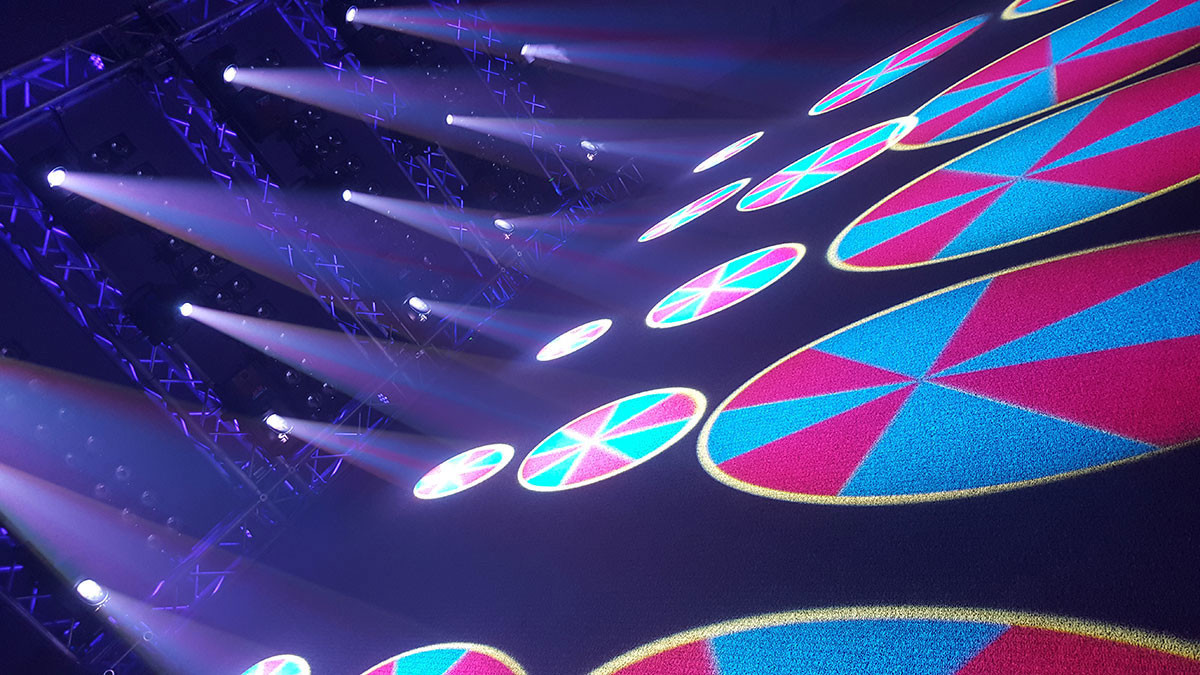

Break things up a little with Turbo Scan's 3-facet and 8-facet rotating, indexable prism. Going for a more smooth, sultry look? Try Turbo Scan's frost filter for that subtle glow that satisfies, then blow em out of the water with the pinpoint accuracy and beam shaping from Turbo Scan's smooth, multi-mode iris.

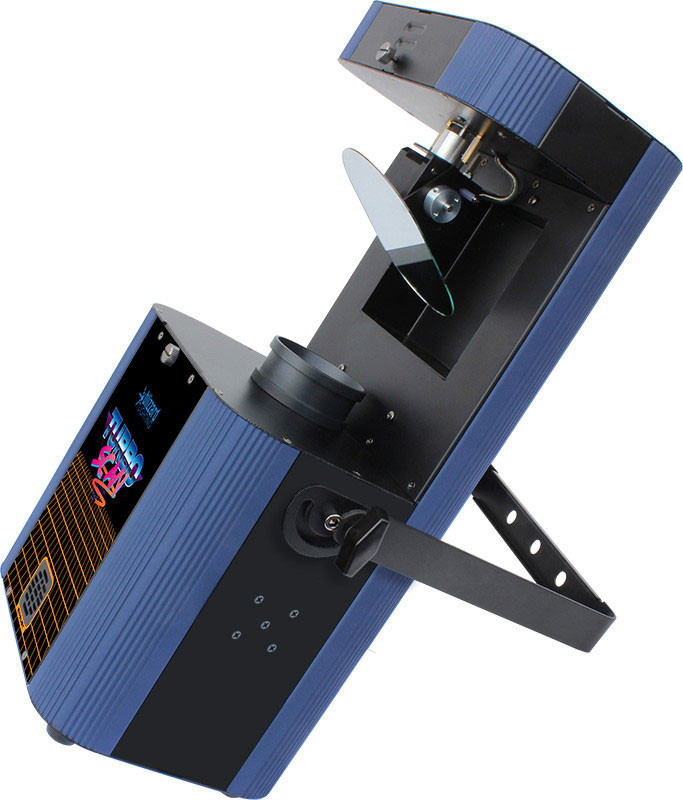

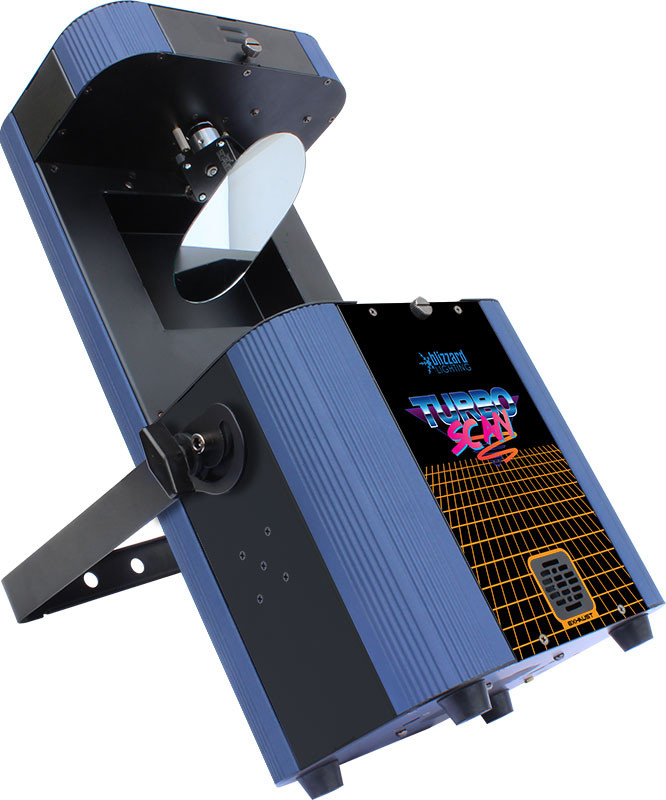

Did we mention speed? We didn't call it Turbo Scan' for nothing. That's "Turbo" as in "Maximum speed and performance," my friend. Its moving mirror with 3-phase motors is capable of 180 pan in 0.8 seconds, and 90 tilt in under 0.5 seconds.

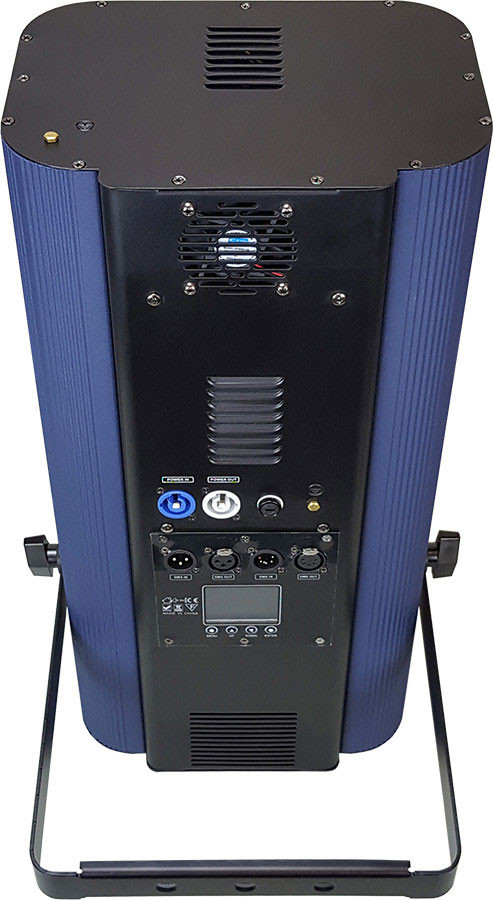

Then there's Turbo Scan's multiple built-in programs and sound-active mode, for when you just want to go where the beat takes you. Still want more? Try on a full color LCD display menu system for size. Then, rig it all up with 1/4-turn omega mounting brackets, POWERCON'-compatible power connections and 3 and 5-pin DMX.
Does all this sound familiar? If you own G-Max' 150 moving head fixtures it just might. Turbo Scan' fixtures share the exact same DMX architecture, optics and overall feature set as our G-Max' 150 moving head fixtures. This will make for super easy programming and consistent output between these fixtures!
• Protocol: USITT DMX-512
• DMX Channels: 21/23/24
• Operating Modes: Standalone, M/S, Auto, Sound Active

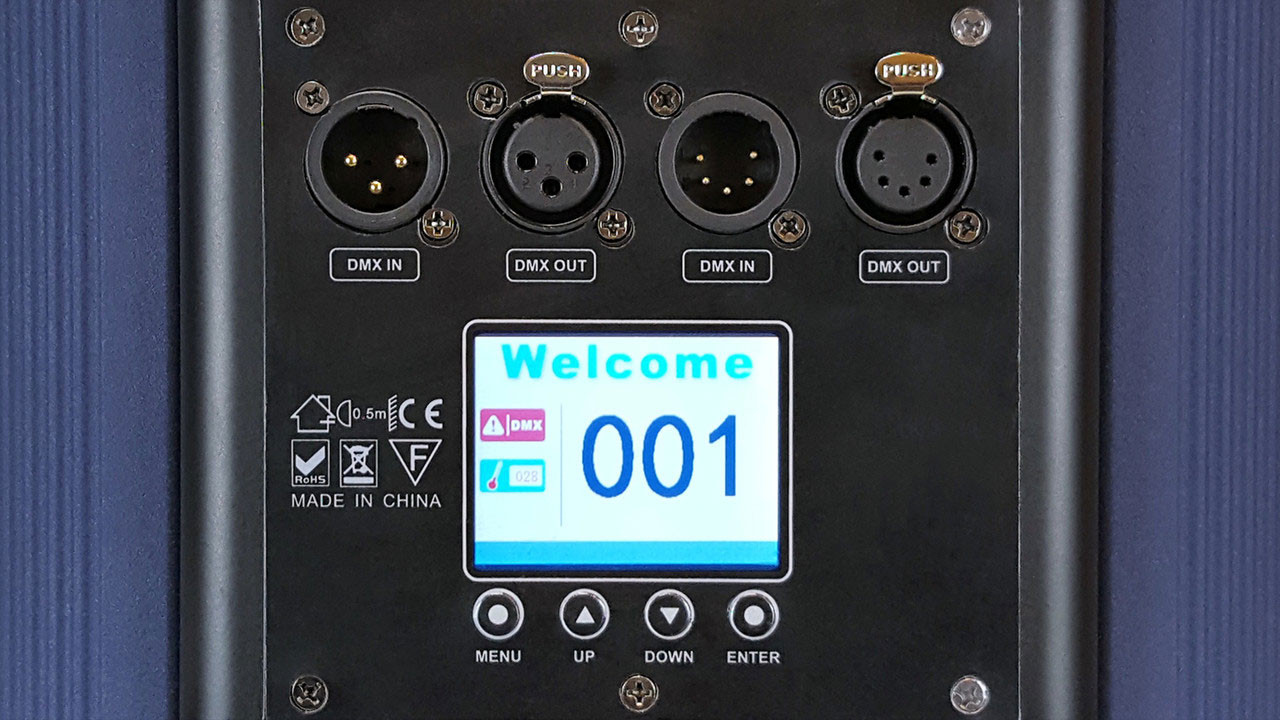

• Input: 3-pin/5-pin XLR Male
• Output: 3-pin/5-pin XLR Female
• LCD full-color 4-button control panel
• Pan: 180 (0.8 seconds), Tilt: 90 (0.5 seconds)
• Optical: 15 Beam Angle
• Gobo Size: 24.8mm, Image Size: 17.5mm
• Luminous Intensity: 32,121 Lux @ 2m | 6,017 Lux @ 5m
• Operating Voltage 90-260VAC, 50-60Hz
• Power Consumption: 184W, 1.6A, PF:.98
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient
• Width: 20.9" x 10.3" x 8.75" (530 x 260 x 222 mm)
• Weight: 26.5 lbs (12 kg)
And of course, Turbo Scan' is backed by Blizzard's 2-year warranty.
