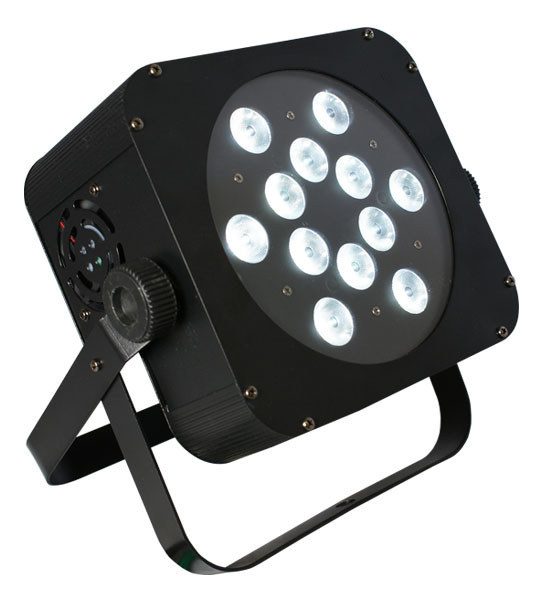

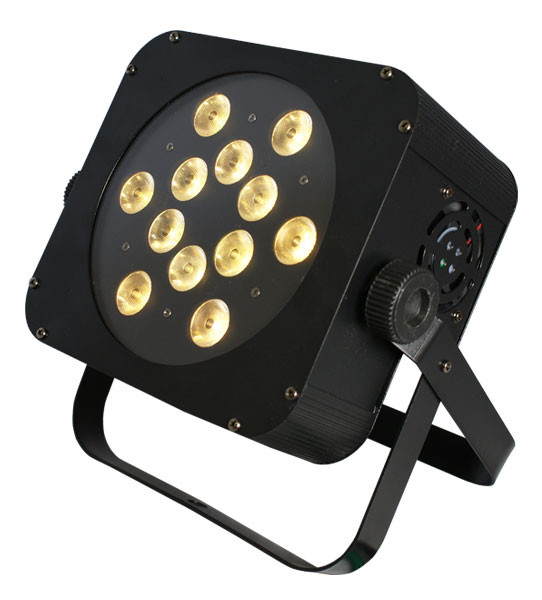

Using the newest in LED technology, the Puck Vari White' brings all that you've come to appreciate about the original Puck to a super affordable dual-color white light flat par fixture. Full cool and warm white intensity can be controlled in each of the 3, 4 or 5-channel user selectable control modes which means it works great with any type of controller, including the popular 4-channel easy controllers. Variable electronic strobe and electronic dimming is also available within either its 3, or 5 channel modes. The built-in 4 character/4 button LED control panel also allows total control over the fixture, including master/slave, color preset, and standalone settings. The control panel also allows for the LED display on/off feature, and service hour readout display.
And, take full advantage of Blizzard's wiCICLE wireless DMX system without the need for external power thanks to the wiCICLE enabled DMX jacks! An innovative design provides power to the system directly from the fixture's DMX jack, meaning even fewer cords and less setup time.
Beautiful white light in any color temperature you choose are yours with the Blizzard Puck Vari White' flat LED par can. Get yours today!
FEATURES: • White/Warm White color mixing
• Variable electronic strobe
• Variable electronic dimmer
• Full cool white/warm white color mixing in standalone and master/slave
• Lightweight and Compact (It kept its New Years' resolution!)
• 4-Button LED control panel for easy programming
• Light source: 12x 6-Watt 2-in-1 LEDs
• Dual bracket for flexibility in mounting
• Power outlet for fixture linking (up to 10 fixtures or 3 amps)
• wiCICLE Enabled functionality allows plug-and-play operation with our wiCICLE Brand Wireless DMX system
SPECIFICATIONS:Weight & Dimensions
• Length: 8.25 inches (210 mm)
• Width: 3.75 inches (95.25 mm)
• Height: 7.5 inches (190 mm)
• Weight: 4.2 lbs (1.9 kg)
Power
• Operating Voltage: 90-230VAC, 50-60 Hertz
• Fuse: 3A 250V
• Power Consumption: 70W, .95A Max, .23A Inrush
Light Source
• LED: 12x 6-Watt 2-in-1 LEDs
Optical
• Beam Angle: 25 degrees, 29 degree field
• Luminous Intensity: Full Color On: 9,900 Lux @ 1m, 3010 Lux @ 2m, Cool White: 5,520 Lux @ 1m, 1,610 Lux @ 2m, Warm White: 4,790 Lux @ 1m, 1,510 Lux @ 2m
Thermal
• Max. Operating Temp.: 104 degrees F (40 degrees C) ambient

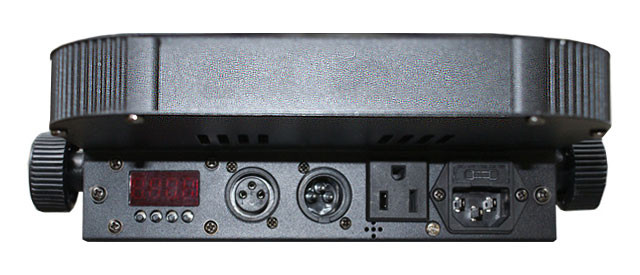

Control
• Protocol: USITT DMX-512
• DMX Channels: 2, 3, or 5 (User Selectable)
• Input: 3-pin XLR Male
• Output: 3-pin XLR Female
Operating Modes
• Standalone, Master/Slave, Color Preset, Standalone color mixing
Warranty
• 2-year limited warranty, does not cover malfunction caused by damage to LED's.
