DesignMax loudspeakers have the flexibility and style to deliver outstanding audio and aesthetics for any commercial space. With ten loudspeakers and two subwoofers to choose from including ceiling-mounted, surface-mounted, and outdoor-rated options it's easy to create tailored DesignMax solutions.
Hear the differenceDesignMax loudspeakers deliver instantly impressive sound, no EQ or DSP required. The Dispersion Alignment system on select models ensures a consistent listening experience throughout the room, matching the coverage pattern of the woofer to the wider performance of the tweeter. And enabling SmartBass processing and loudspeaker EQs via select Bose DSPs and amps delivers even better sound at any listening level.

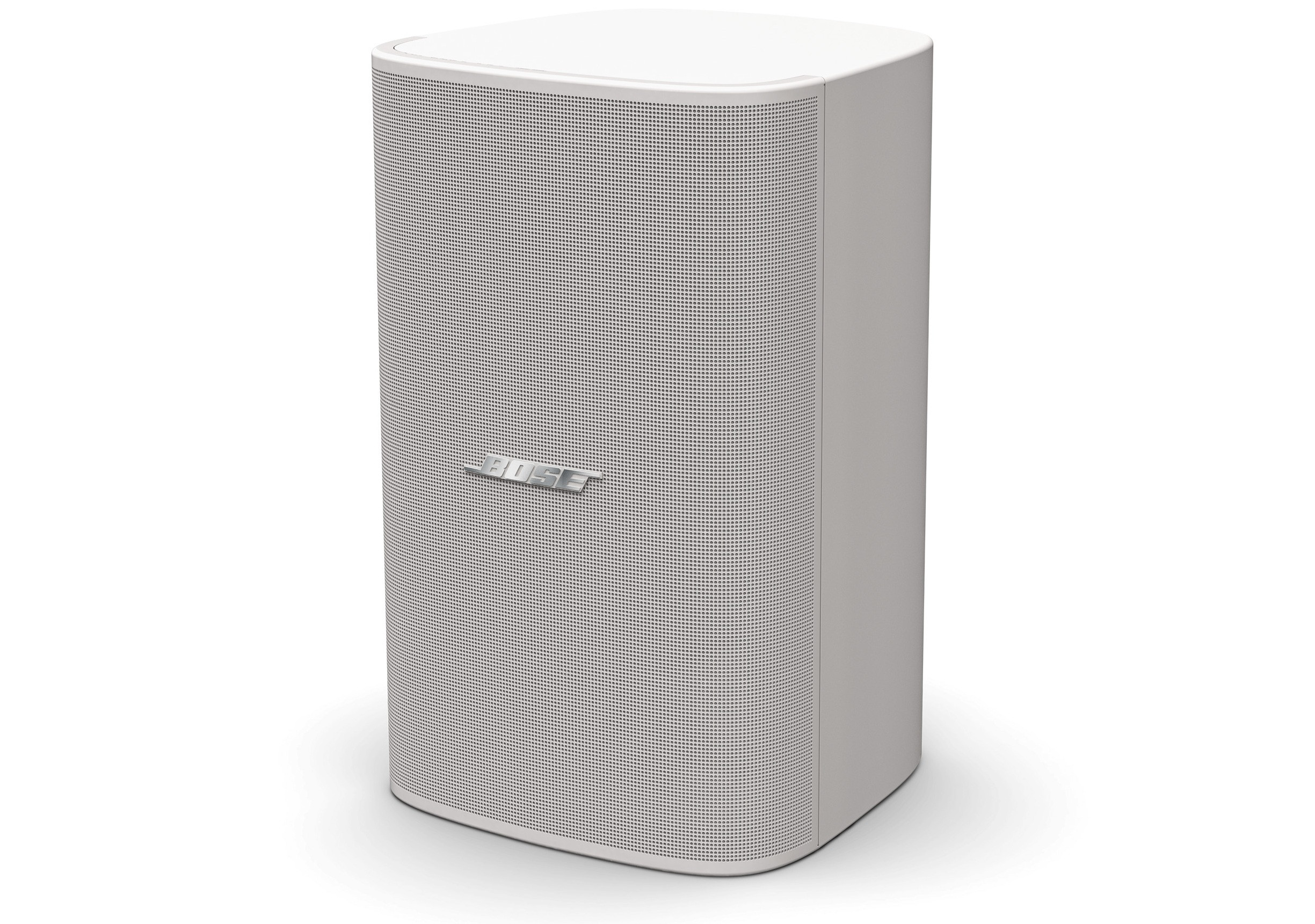

See the differenceSurface-mounted DesignMax loudspeakers feature hidden U-brackets. This unique design holds the loudspeaker closer to the wall, providing a much cleaner appearance. Sleek, minimum-bezel grilles, removable logos, and attractive styling allow you to blend DesignMax loudspeakers with any dcor. Every DesignMax loudspeaker is available with a black or white grille, which is also paintable.
Feel the differenceFor installers, patented QuickHold mounting mechanisms on each DesignMax loudspeaker make the job easier, reducing strain and hassle and saving substantial time. Instead of balancing the loudspeaker in one hand and a tool in the other, you'll now have both hands free.
For surface mounted models, just push the loudspeaker onto the QuickHold U-bracket and it snaps on securely. Then adjust the pitch as desired, lock the QuickHold levers to lock the loudspeaker in place, and you're done.
• Combine models to complete any design, big or small 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver instantly impressive sound with custom Bose drivers no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily includes Euroblock connectors; makes installation and troubleshooting easier
• Deliver high SPL for clear foreground music
Frequency Range (-10 dB): 60 20,000 Hz
Nominal Coverage Angle (H x V): 115 x 115
Power Handling, Long-term Continuous: Bose extended-lifecycle test: 125W AES component test: 150W
Calculated Maximum SPL @ 1 m: Bose extended-lifecycle test: 117 dB AES component test: 118 dB
Transformer Taps: 70V: 2.5, 5, 10, 20, 40, 80 W, bypass 100V: 5, 10, 20, 40, 80 W, bypass
Nominal Impedance: 8 ohms (transformer bypass)
Dimensions (H x W x D): 15.6" (395 mm) x 9.8" (249 mm) x 10" (253 mm)
Dimensions with Bracket (H x W x D): 15.6" (395 mm) x 9.8" (249 mm) x 10.7" (270 mm)
Net Weight: 22.8 lbs (10.3 kg)
