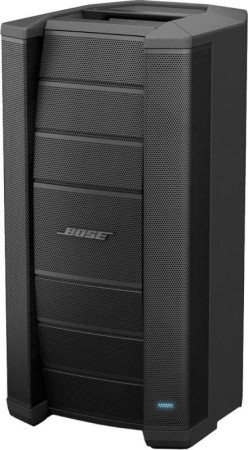

The Bose F1 Model 812 Flexible Array Loudspeaker is the first powered portable loudspeaker that lets you control its vertical coverage pattern. Simply push or pull the array into position to create "Straight," "C," "J" or "Reverse J" coverage patterns. And once set, the system automatically changes the EQ to maintain optimum tonal balance for each coverage pattern. So whether you're playing at floor level, on a stage, or facing raked seats or bleachers, you can now adapt your PA to match the room.

Engineered with a flexible array of eight high-output mid/high drivers, a high-powered 12-inch woofer, a lower crossover point and 1,000-watt amplifier, the loudspeaker delivers high SPL performance while maintaining vocal and midrange clarity that's dramatically better than conventional loudspeakers.

Key Features
Flex array is a flexible baffle that can be configured into four unique shapes ("Straight," "C," "J" or "Reverse J"), allowing the customer to choose the best possible coverage pattern for the application

Vertically oriented 8-driver mid/high line array, with each driver mounted on a custom 100 waveguide, helps deliver wide, consistent coverage

12-inch LF driver provides high performance at low frequency for strong low-frequency output

Bi-amplified design with 2 high-output, Class-D amplifiers to separately power the FLEX array and 12-inch LF driver

2 input channels with independent volume controls and Line Level/Mic switch on Channel 1

Technical Summary:
• Frequency Response (-3 dB): 52 Hz - 15.5 kHz
• Frequency Range (-10 dB): 43 Hz - 20 kHz
• Nominal Dispersion: C: 100 H x 40 V
• Maximum SPL @ 1 m: 132 dB SPL (peak)
• Rated Power: 1,000 W


F1 Model 812: High impact composite materials

F1 Model 812 loudspeaker: 26.1" H x 13.1" W x 14.6" D (664.66 x 334.3 x 372.5mm)
F1 system stack: 73.5" H x 16.1" W x 17.6" D (1868 x 410.16 x 448.5mm)

Net Weight
F1 Model 812 loudspeaker: 44.5 lbs (20.18 kg)
F1 system stack: 99.5 lbs (45.7 kg)


Package Contents
1 F1 Model 812
1 IEC Line Cord
1 Owner's Guide

Additional Information

ManufacturerBose Professional
Product ConditionNew
