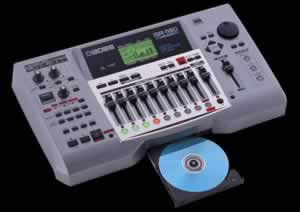

FEATURES:• Self-contained 10-track digital recording studio with stereo Master Track and 80 Virtual Tracks
• 20GB hard drive for massive song and project storage
• Built-in CD-RW drive (BR-1180CD), or optional upgrade (user-installable) for BR-1180
• Easy icon-based interface simplifies recording, bouncing and mixing
• New XLR Mic inputs w/phantom power, plus Hi-Z input and Line inputs
• Onboard COSM effects including 2 loop processors, 1 insert processor and Mastering Tool Kit
• Separate Rhythm Track with realistic drum sounds and patterns
• Import/export .wav files directly for loading drum loops, etc.
• FREE Discrete Drums CD with professionally recorded drum loops (BR-1180CD model)
SPECIFICATIONS:• Width 460 mm 18-1/8 inches
• Depth 273 mm 10-3/4 inches
• Height 87 mm 3-7/16 inches
• Weight 3.5 (Excl. AC Adaptor) kg 7 lbs. 12 oz.
• Tracks Track: 10 V-Track: 80 (8 V-Tracks per each Track)
(Up to 2 tracks can be recorded simultaneously, and up to 10 tracks can be played back simultaneously.)
• Maximum Useful Capacity/Recording Time Internal Hard Disk: 20 Gbytes
(Data type: Recording time)
• LIN: 60 hours
• MT1: 120 hours
• MT2: 160 hours
• LV1: 190 hours
• LV2: 240 hours
(conversion in 1 track, times approximate)*1*2
• Signal Processing AD Conversion: (24 bit AF Method*3 (Guitar/Bass)), (24 bit AF-AD (Mic)), (24 bit (Line)), (24 bit (Simul))
• DA Conversion: 24 bit
• Internal Processing: 24 bit (digital mixer section)
• Recording Data: 16 bit linear (data type: LIN)
• Sample Rate 44.1 kHz
• Frequency Response 20Hz to 20kHz (+1/-3dB)
• Total Distortion 0.15 % or less (INPUT SENS: CENTER, 1 kHz at nominal output level, data type: LIN)
• Nominal Input Level (Variable) GUITAR/BASS jack: -10 dBu, MIC 1, 2 jack: -40 dBu, LINE jack: -10 dBu
Input Impedance GUITAR/BASS jack: 1M ohms
• MIC 1, 2 jack (TRS): 2.2 k ohms (HOT-COLD), 1.1 k ohms (HOT-GND, COLD-GND)
• MIC 1, 2 jack (XLR): 2.2 k ohms (HOT-COLD), 1.1 k ohms (HOT-GND, COLD-GND)
• LINE IN jack: 50 k ohms
• Nominal Output Level LINE OUT jack: -10 dBu
• Output Impedance LINE OUT jack: 2 k ohms, PHONES jack: 100 ohms
• Recommended Load Impedance LINE OUT jack: 20 k ohms or greater, PHONES jack: 8 to 50 ohms
• Residual Noise Level LINE OUT jack: -87 dBu or less (INPUT SELECT: GUITAR/BASS, input terminated with 1 k ohms, INPUT SENS: CENTER, IHF-A, typ.)
• Effects Mixer Effects: (LoopEffects: Chorus/Delay/Doubling, Reverb), (EQ (Two-band equalizer. Independent for each track.))
• Insert Effects: 17 algorithms
• Speaker Modeling (Reference model are the Roland DS-90/90A and DS-50A)
• Mastering Effects
• Rhythm/Loop Phrase Resolution: 96 TPQN
• Rhythm Patterns: (Preset: 50, User*: 999, Song*: 999 (*User-programmable and SMF-importable)), Rhythm Arranges: (Preset: 50, User*: 10, Song*: 10 *User-programmable)
• Loop Phrases: (User: 400 (50 x 8 banks), Song: 50) (.WAV/AIFF-importable)
• Display 64 x 40mm (Backlit LCD)
• Power Supply DC 12 V; Supply AC Adaptor (Roland PSB-3U)
• Power Consumption 3A
