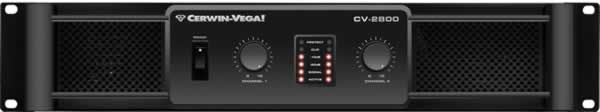

Engineered for superior sound reproduction, the CV Series line of professional amplifiers deliver top quality audio at an affordable price. The CV Series offer a standard of reliability and efficiency that makes them the perfect solution for every DJ, musician, and sound engineer. Welcome to a new level
of professional quality sound performance!
FEATURES:• Front panel LED displays indicate power, clip protect and
signal status
• Balanced XLR and TRS Input connectors
• Speakon NL-4 locking output connectors and binding posts
• Detented 21-position input level control knobs
• Defeatable limiter and high pass filter per channel
• Short circuit, thermal, current limit, DC offset, current inrus, RF protection, Turn on/ Turn off muting protection
• 5-way binding post and Speakon output connectors
• Flow-through cooling design prevents overheating with continuously variable speed, front to rear
SPECIFICATIONS:• Frequency Response: 0/-0.5dB ; 20Hz-20KHz, 0/-3dB: 5Hz-60KHz
• Rated Output Power (Stereo): 600 watts at 8 ohms; 900 watts at 4 ohms; 1400 watts at 2 ohms
• Rated Output Power (Mono): 1800 watts at 8 ohms; 2800 watts at 4 ohms
• At Full Power @4 ohms: 32A / 16A
• Signal to Noice Ratio: 20 Hz - 20k Hz - 104dB
• Distortion (SMPTE-IM): .04%
• Output Circuitry: H
• Damping Factor (400 Hz): 350
• Weight 46 lbs / 18 kg
• Dimensions (WxHxD) 19" x 3.5" x 16.5"
