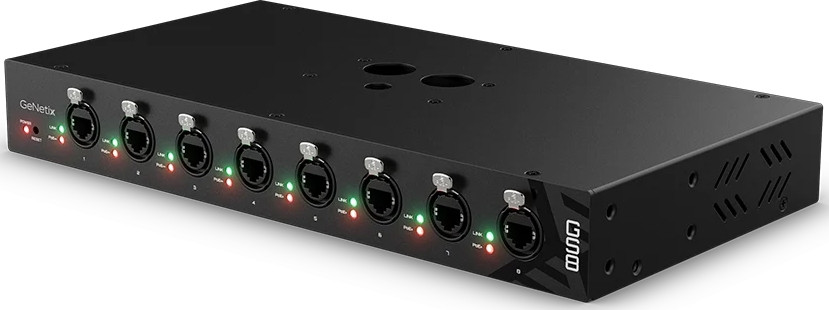

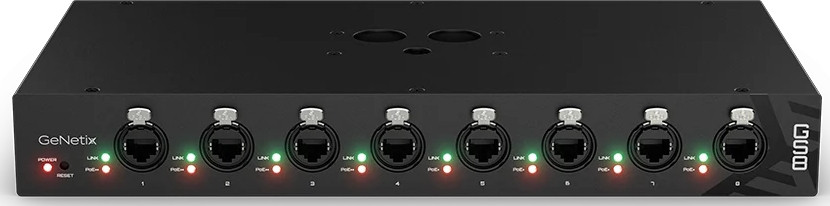

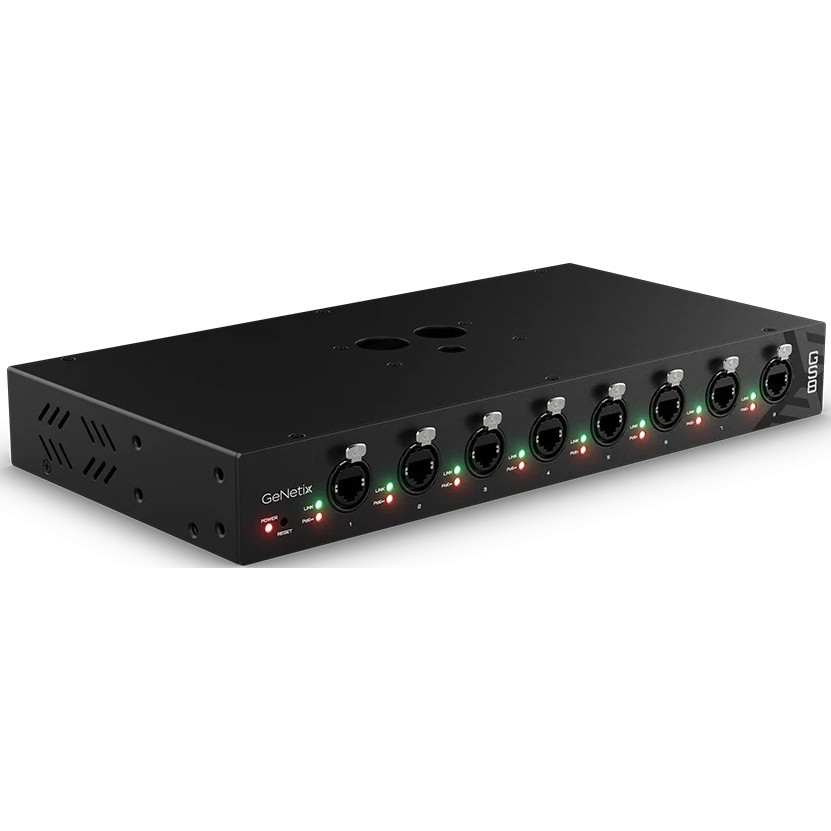

GeNetix Switch 8 is an eight-port unmanaged Gigabit PoE network switch that provides a total output of up to 200W of Power over Ethernet across its 8 ports. Ports 1-4 support IEEE 802.3bt up to 100W per port. In modes A & B, all ports support 802.3af and 802.3at standards. This rack mountable switch features a rear PowerCon True1 Mains input connector and is also truss mountable via its M12 threaded insert.
• 200w 8 port Unmanaged Gigabit PoE Network Switch
• Supports Multiple PoE Specifications: Ports 1-4 802.3bt and on all ports 802.3af, 802.3at in Modes A & B
• Ports 1-4 Support PoE++ (up to 100w per port), Ports 5-8 PoE+ (up to 30w per port) up to 200w switch limit
• Locking Ethernet Connectors

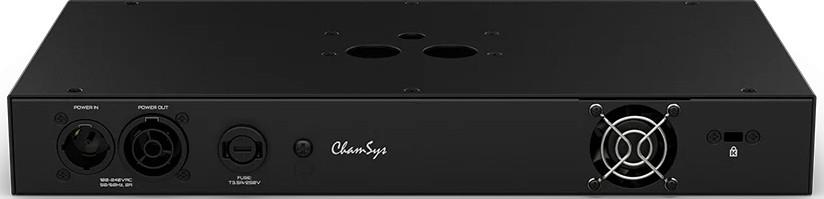

• PowerCon True1 Top Mains Input
• Desktop or 19" Rack Mountable (1U)
• M12 Threaded Insert for Clamp Mounting
GeNetix NodesGeNetix Nodes provide a solution for remote data distribution in a wide variety of applications. Supporting industry standard protocols like Art-Net, sACN, RDM along with advanced features including DMX Fallback, Merging and Scene Storage
Hardware Specifications:• Network Ports: 8
• Mains Input: PowerCon True1 Top
• Port Status LEDs: Yes
• 802.3af and 802.3at in Modes A & B: Yes
• 802.3bt up to 100W per Port: Ports 1-4
• Removable Rack Ears: Yes
• Max Power Consumption (mains): 8.2w
Software Specifications:• Gigabit Ethernet: Yes
• Unmanaged Network Switch: Yes
Included Accessories:• Neutrik powerCON TRUE1 Power Cable: 1
Node Weights and Dimensions:• Width (No Rack Ears): 330mm (12.99 inches)
• Width (With Ears): 482mm (18.98 inches)
• Depth: 172mm (6.77 inches)
• Height: 43mm (1.69 inches)
• Weight: 2.05 KG (4.52 lb)
