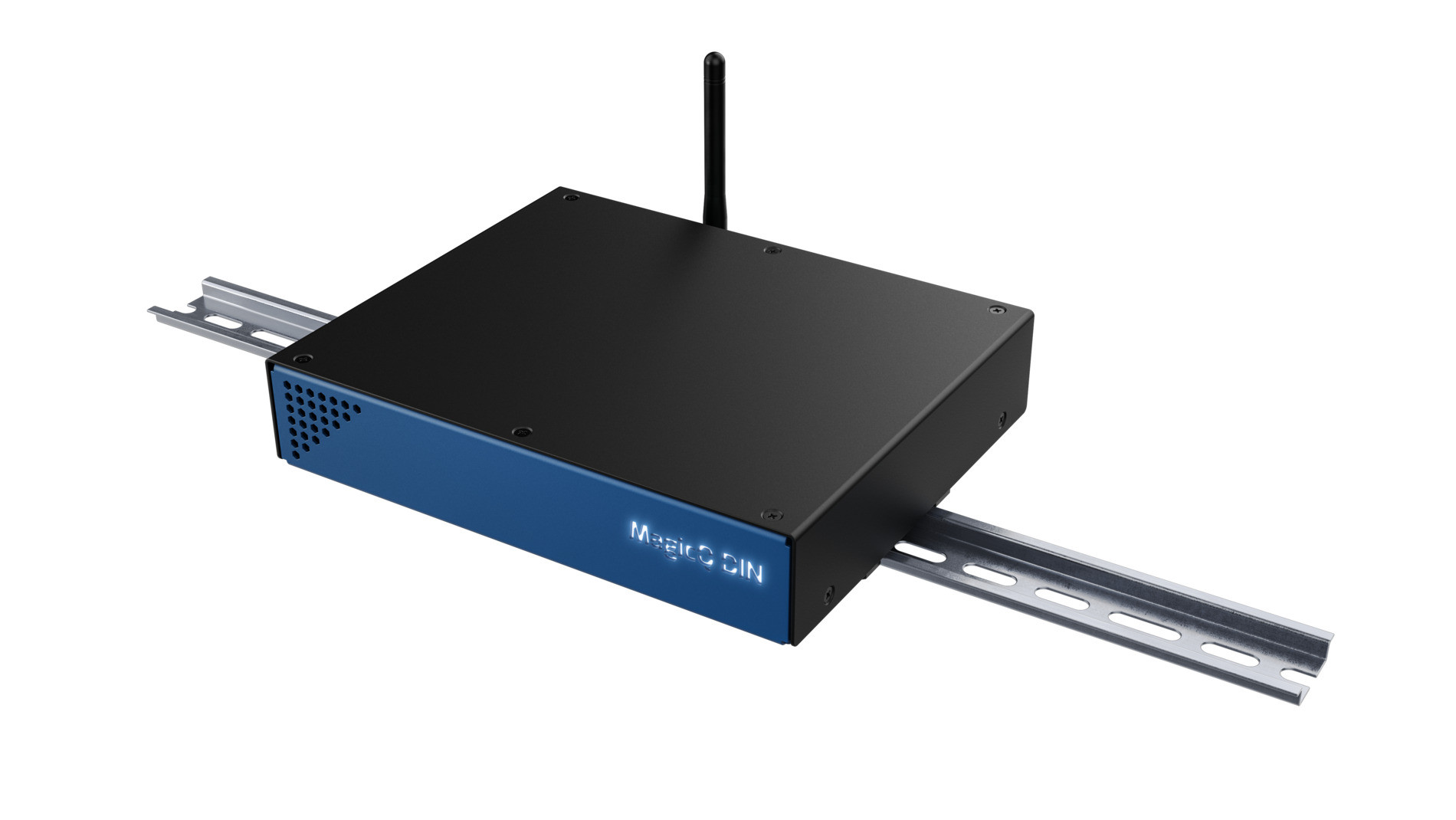

The full power of MagicQ software in a DIN rail mount solution. MagicQ DIN supports all MagicQ features, including scheduled events, UDP, OSC and other remote protocols, making it ideal for cabinet installation in control rooms and suitable for theatres, houses of worship, and any venue requiring powerful control that offers the advanced capabilities of MagicQ such as pixel mapping and multi-element fixture control.
Its 24 universes of DMX output are expandable to 48 and connectivity features include two RDM-enabled DMX outputs, inbuilt Wi-Fi for programming and remote control, and four 10Scene ports for connecting up to forty 10Scene wall plates
Overview:• Ideal for installations and architectural settings
• 24 universes direct, expandable to 48
• Two RDM enabled DMX Outputs (Phoeonix Screw Terminal connectors)
• Inbuilt Wi-Fi for programming and remote control
• Four 10Scene ports for connection of up to forty 10Scene wall plate
• Features the same software as MagicQ Consoles
MagicQ Stadium SoftwareIn addition to its rich feature set of core lighting control, MagicQ MQ500M Software has inbuilt plot and visualisation, audio timeline editor, and a multi emitter colour picker.

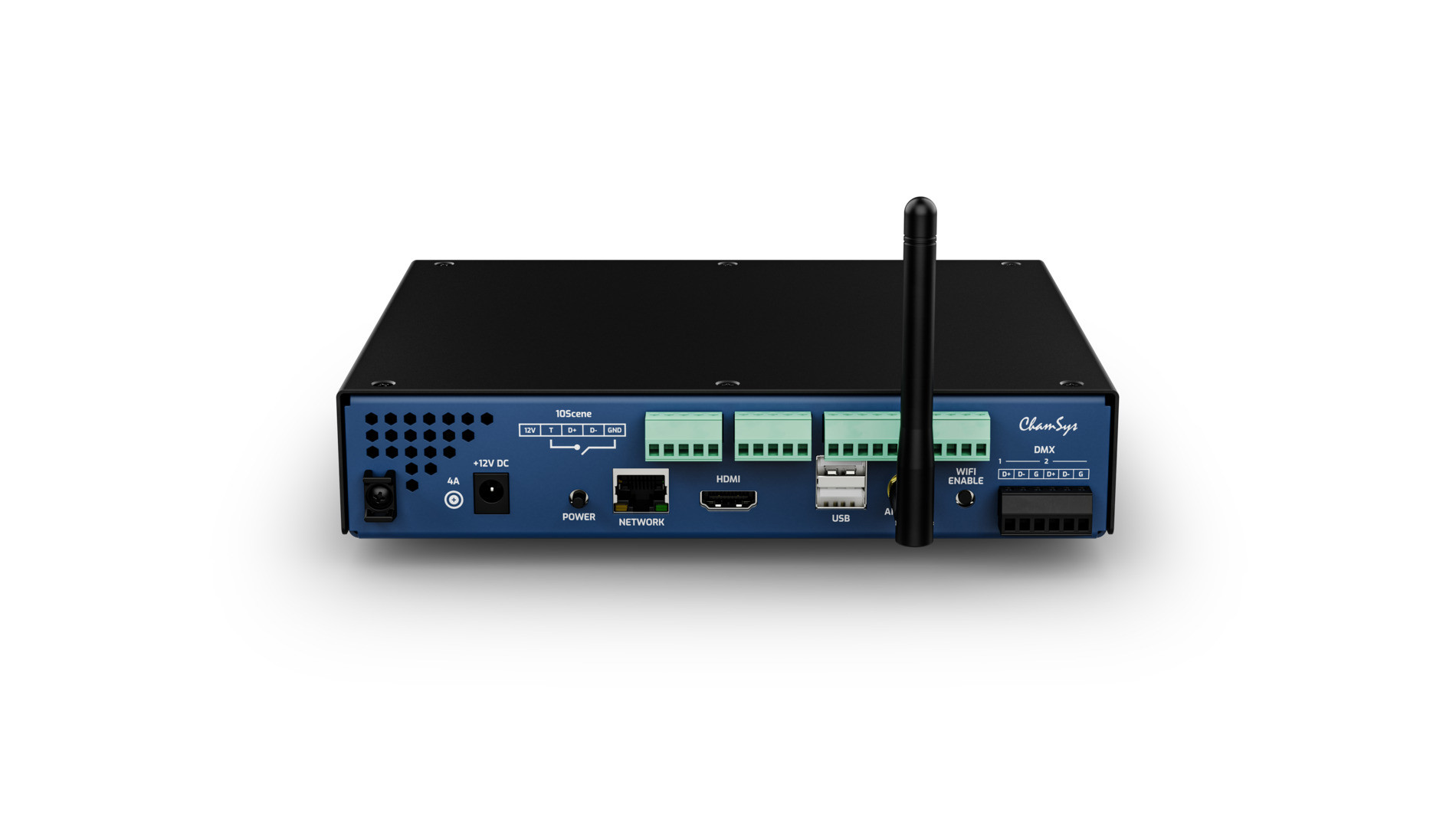

Hardware Specifications: Universes supported: 24, expandable to 48 via licence upgrade
DMX Outputs Pheonix Screw Terminal: 2
External Monitor: 1920 x 1080 HDMI
Inbuilt Wi-Fi: Yes
Network Port: 1
USB Ports: 2
Power Input: 12v DC
Max Power Consumption (mains): 60w
Software Specifications: Max Number of DMX Channels: 12288 *expandable to 24576
Max Number of Fixtures Supported: 12288 *expandable to 24576
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
OSC Supported: Yes
RDM Autopatch for fast show patching
Fixture library of over 48,000 fixture files
Built in FX generator
Colour picker and Gel inbuilt Gel library
Included Accessories: Wi-Fi Antenna: 1
DIN Rail Mount Clips: 2
10Scene Connectors: 4
12v Power Supply: 1
Rack Weights and Dimensions: Width : 200mm (7.8 inches)
Depth: 165mm (6.5 inches)
Height: 40mm (1.6 inches)
Weight: 0.65kg (1.43lb)
