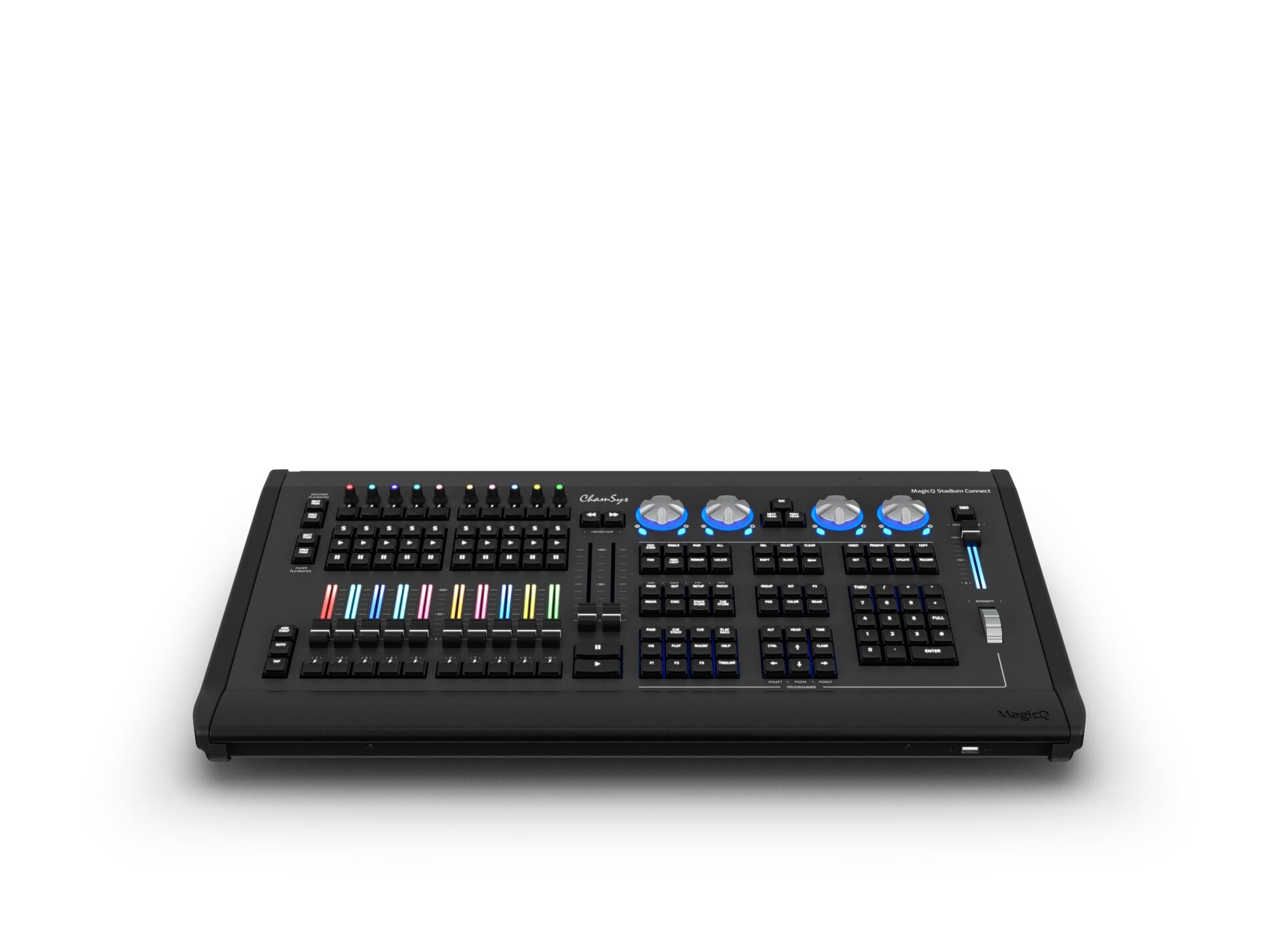

MagicQ Stadium Connect is a PC-based programming interface with the same programming keyset and dual crossfaders as the MQ250M and MQ500M. Outputting 64 universes directly from the Connect, and the ability to pre-vis up to 256 universes, MagicQ Stadium Connect is the ultimate solution for complete control on-the-go. With 10 backlit and motorised faders and 10 backlit playback encoders with executors, the MagicQ Stadium Connect provides plenty of programmable real estate for your show.
• 10 fully motorised fader playbacks
• 10 encoder playbacks
• RGB illumination of playbacks
• Backlit buttons
• 64 universes direct from MagicQ for Art-net/sACN output
• 256 visualisation universes for pre-programming
• Network port acts as network interface for PC
• Dual 100mm Manual Cross Faders
• 2 dedicated high power USBs for charging of phones/tablets
MagicQ Stadium SoftwareIn addition to its rich feature set of core lighting control, MagicQ Stadium Software has inbuilt audio timeline editor, multi emitter colour picker, 3D trackers support and plot.
Hardware Specifications:Direct DMX Outputs: 4
Motorised Playbacks: 10
Encoder Playbacks: 10
Total no of Playbacks: 20 (10+10)
Dual Cross Faders: Yes
Attribute Encoders: 4
Backlit Keys: Yes
Illuminated Playback/Encoders with RGB control: Yes
Intensity Wheel: 1
Network Ports: 1
USB Ports : 4
Audio Input Sound to Light: Yes
MIDI Ports 1 in and out: Yes
LTC Timecode Ports in and out: Yes
10Scene Port: 1
Power Input, Neutrik powerCON TRUE1 110 to 240 VAC
Software Specifications:Universes direct from software (via Artnet/sACN/Pathport): 64
Visualisation Universes: 256
Max Number of DMX Channels: 32,768
Max Number of Fixtures Supported: 32,768
Max Number of Cues: 5000
Max Number of Cue Stacks: 2000
Max Number of Groups: 5000
Max Number of Palettes: 4096
Number of Media Server Layers Supported: 50 (each different content)
Included Accessories:Dual Colour Desk lights: 2
Dust cover: 1
Neutrik powerCON TRUE1 Power Cable: 1
USB Cable: 1
Flight Cased Weights and Dimensions:Width: 761mm (29.9")
Depth: 467mm(18.3")
Height: 197mm (7.7")
Weight (stadium connect in flightcase): 20.0kg (44.1lbs)
Stadium Connect Weights and Dimensions:Width: 680mm (26.8")
Depth: 364mm (14.3")
Height: 85mm (3.3")
Weight: 8.7kg (19.1bs)
