The intuitive simplicity of QuickQ software in a space-saving DIN rail mount solution. QuickQ DIN supports all QuickQ features including Events, 10Scene and Executes, making it ideal for any installation where space is at a premium and control in a small package is required.
Control up to 4 universes from the device via Art-Net or sACN, the QuickQ DIN also features two RDM-enabled DMX outputs. Easily build installed lighting control systems with connectivity features that include inbuilt Wi-Fi for programming and remote control, and four 10Scene ports for connecting up to forty 10Scene wall plates.
Overview• Ideal for installations and architectural settings
• Featuring four Universes of DMX output
• Two RDM enabled DMX outputs
• Inbuilt Wi-Fi for programming and remote control
• Four 10Scene ports for connection of up to forty 10Scene wall plate
• Features the same intuitive software as QuickQ Consoles
• Simple Hot-Takeover mode allowing an external console to take control
Hardware Specifications: Universes supported: 4
Direct DMX Outputs Pheonix Screw Terminal: 2
External Monitor: 1920 x 1080 HDMI
Inbuilt Wi-Fi: Yes
Network Port: 1
USB Ports: 2
Power Input: 12v DC
Software Specifications: Max Number of DMX Channels: 2048
Max Number of Fixtures Supported: 2048
OSC Supported: Yes
RDM Autopatch for fast show patching
Fixture library of over 48,000 fixture files
Built in FX generator
Colour picker and Gel inbuilt Gel library
RDM Autopatch for fast show patching
Offline designer software available for Windows and Mac
Supported fixtures: All LEDs, Dimmers & Moving Lights
Included Accessories: Wi-Fi Antenna: 1

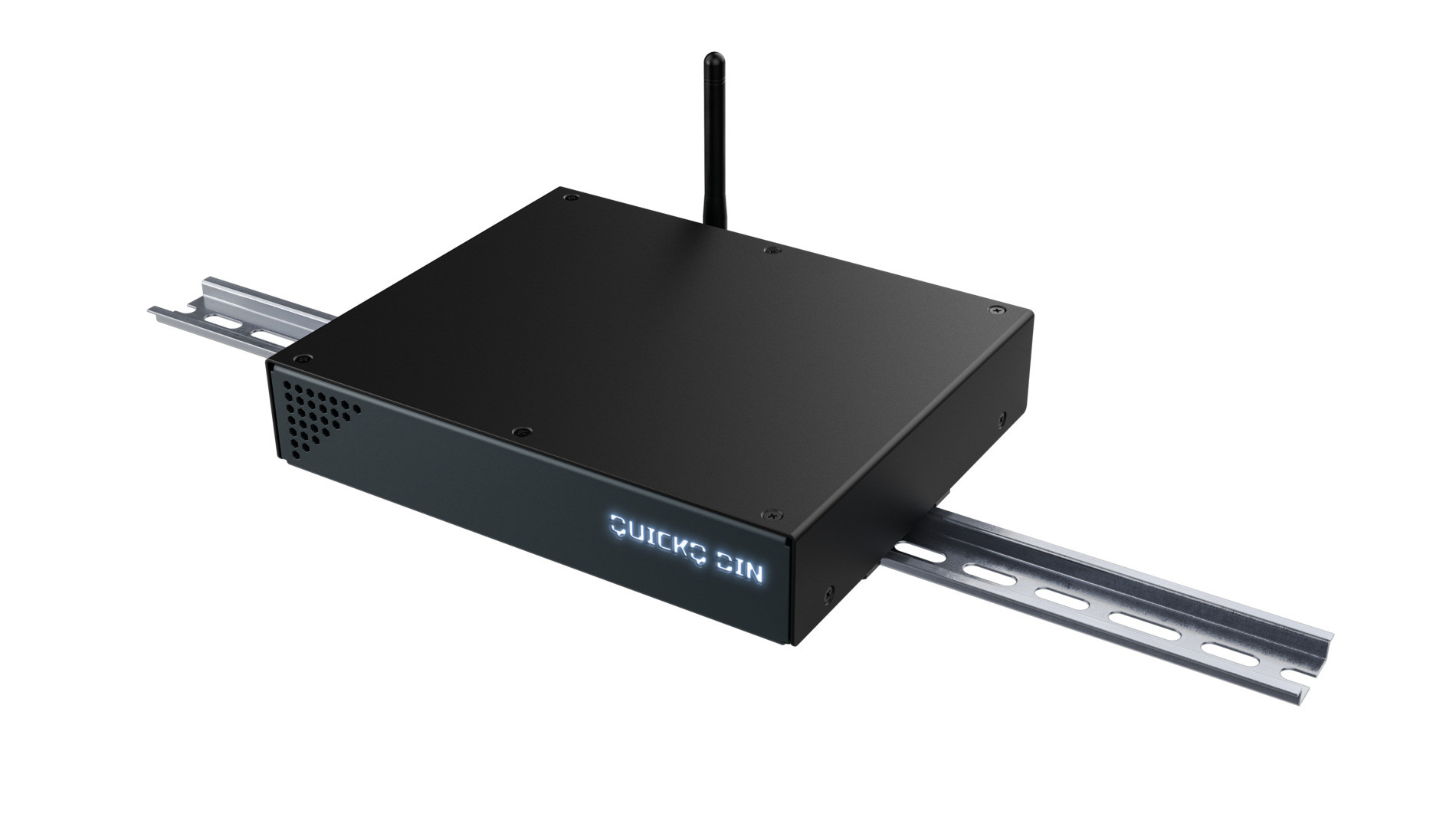

DIN Rail Mount Clips: 2
10Scene Connectors: 4
12v Power Supply: 1
Rack Weights and Dimensions: Width : 200mm (7.8 inches)
Depth: 165mm (6.5 inches)
Height: 40mm (1.6 inches)
Weight: 0.65kg (1.43lb)
