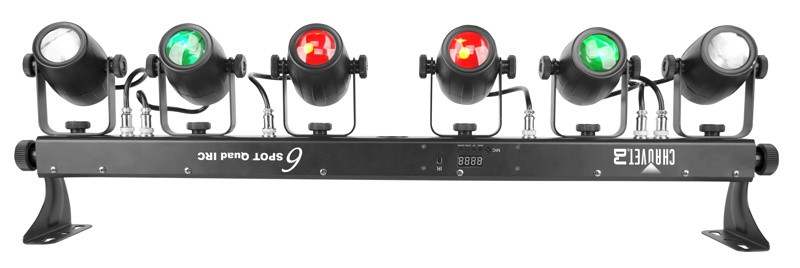

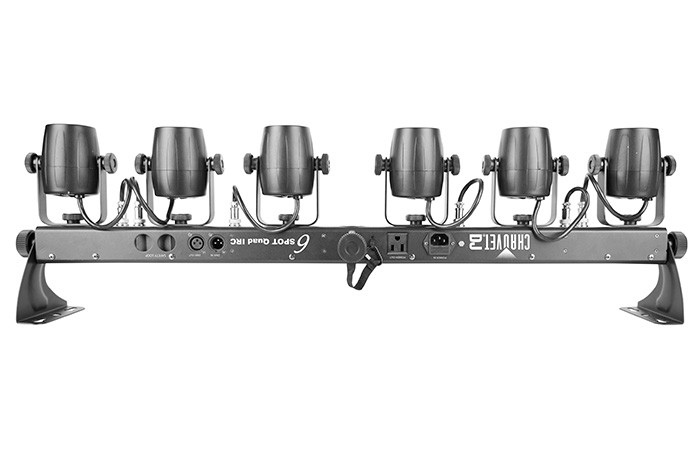

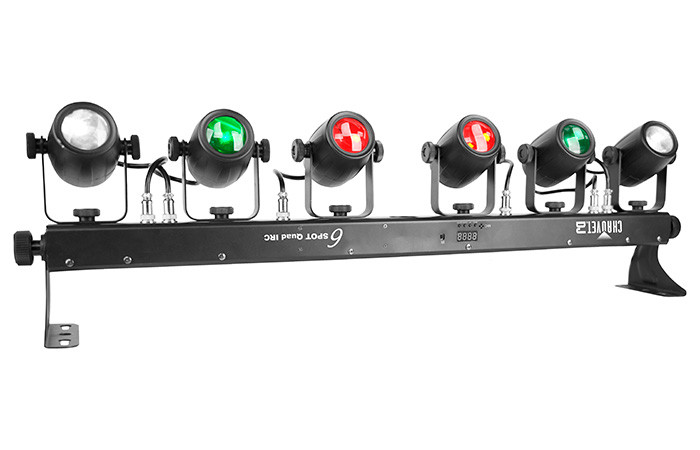

The 6Spot Quad IRC is an all-in-one fixture consisting of six movable heads on a single bar containing high-powered quad color (RGBW) LEDs. The six movable heads make pin spotting multiple locations or achieving total room or stage coverage easy.
Features• Complete and affordable spot and effect lighting solution fitted with high-intensity quad-color (RGBW) LEDs
• Achieve total room or stage coverage with 6 individually adjustable heads
• Easy setup and teardown with included carrying bag
• Multiple mounting options including L-brackets for floor or truss mounting
• Generate a synchronized show in Master/Slave mode with easy-to-access, built-in automated programs
• Wireless control when using the optional IRC-6 remote control
• Save time running cables and extension cords by power linking multiple units

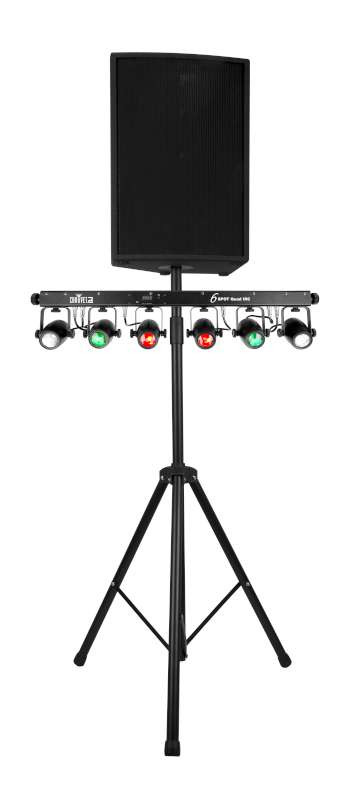

• Mounts to almost any universal tripod and the popular 4BAR' system
• Sound-activated programs dance to the beat of the music
Specifications• DMX Channels: 4, 10 or 28
• DMX Connectors: 3-pin XLR
• Light Source: 6 LEDs (quad-color RGBW) 6.3 W (2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 33 Hz
• Beam Angle: 15
• Illuminance: 483 lux @ 2 m (per pod)
• Power Linking: 9 units @ 120 V; 18 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 55 W, 0.8 A @ 120 V, 60 Hz
• Power and Current: 54 W, 0.4 A @ 230 V, 50 Hz
• Fits Tripod Sizes: 1.25 to 1.5 in (35 to 38 mm)
• Weight: 11.6 lb (5.3 kg)
• Size: 37.25 x 3.9 x 10.8 in (946 x 100 x 276 mm)
• Optional Controllers: IRC-6
• Approvals: CE
