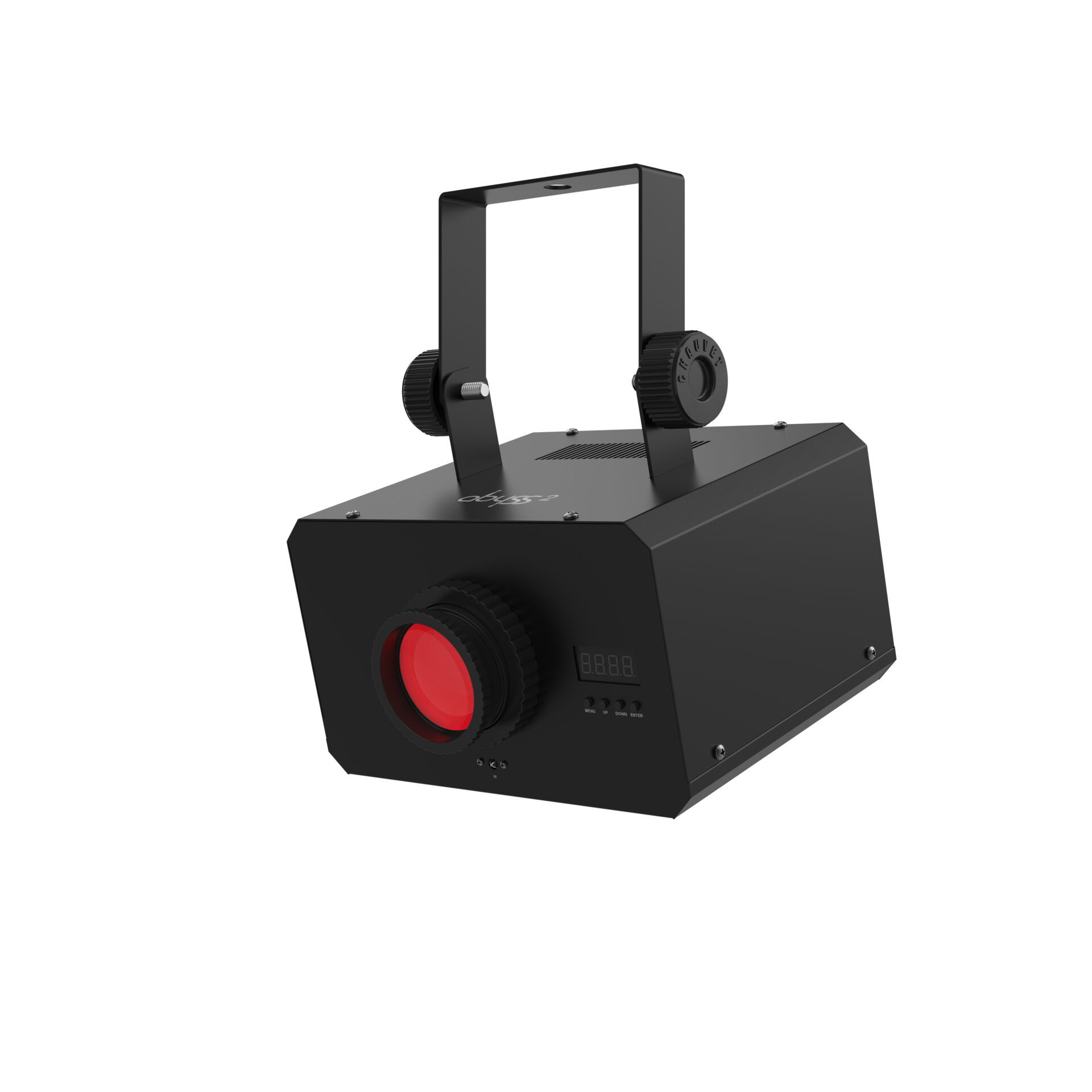

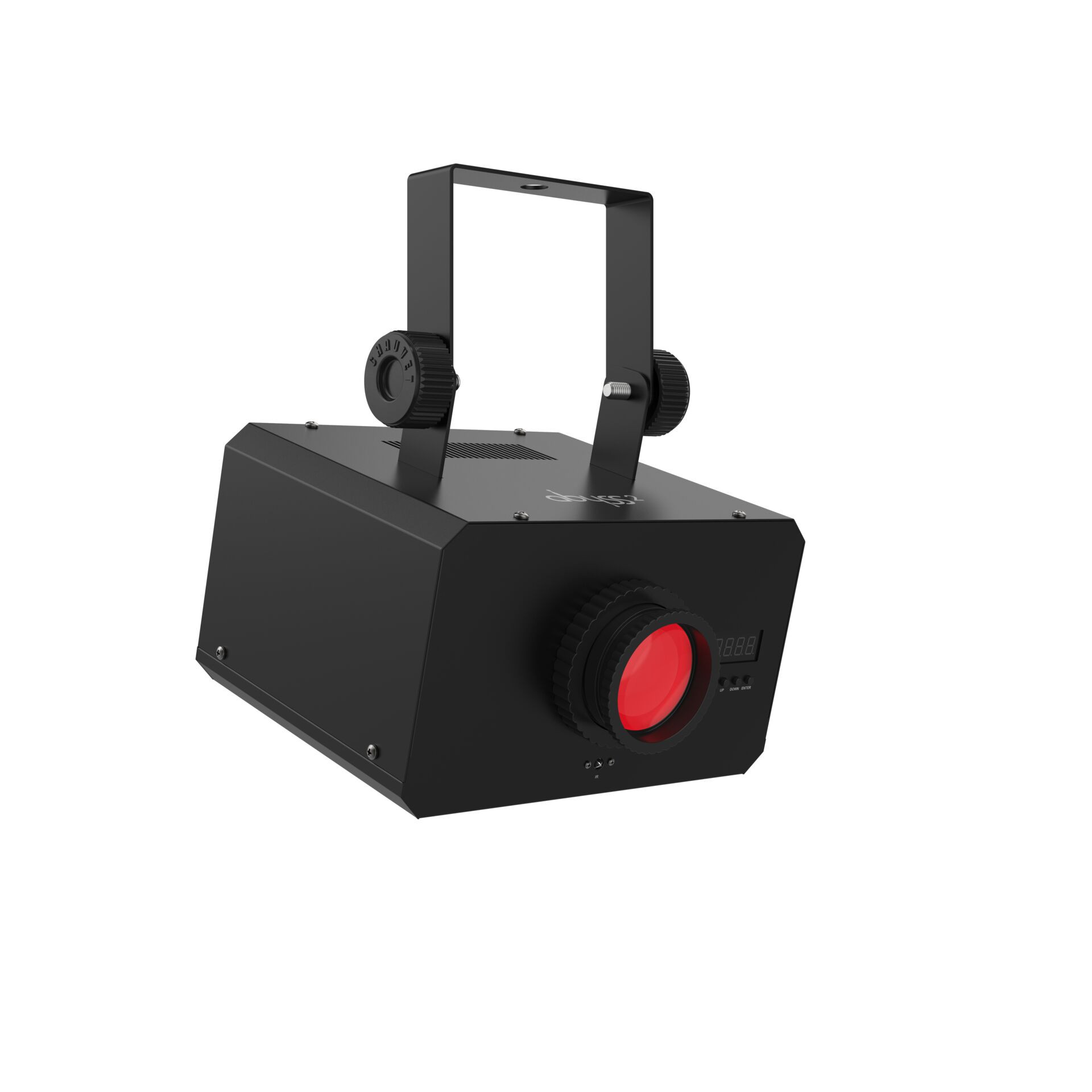

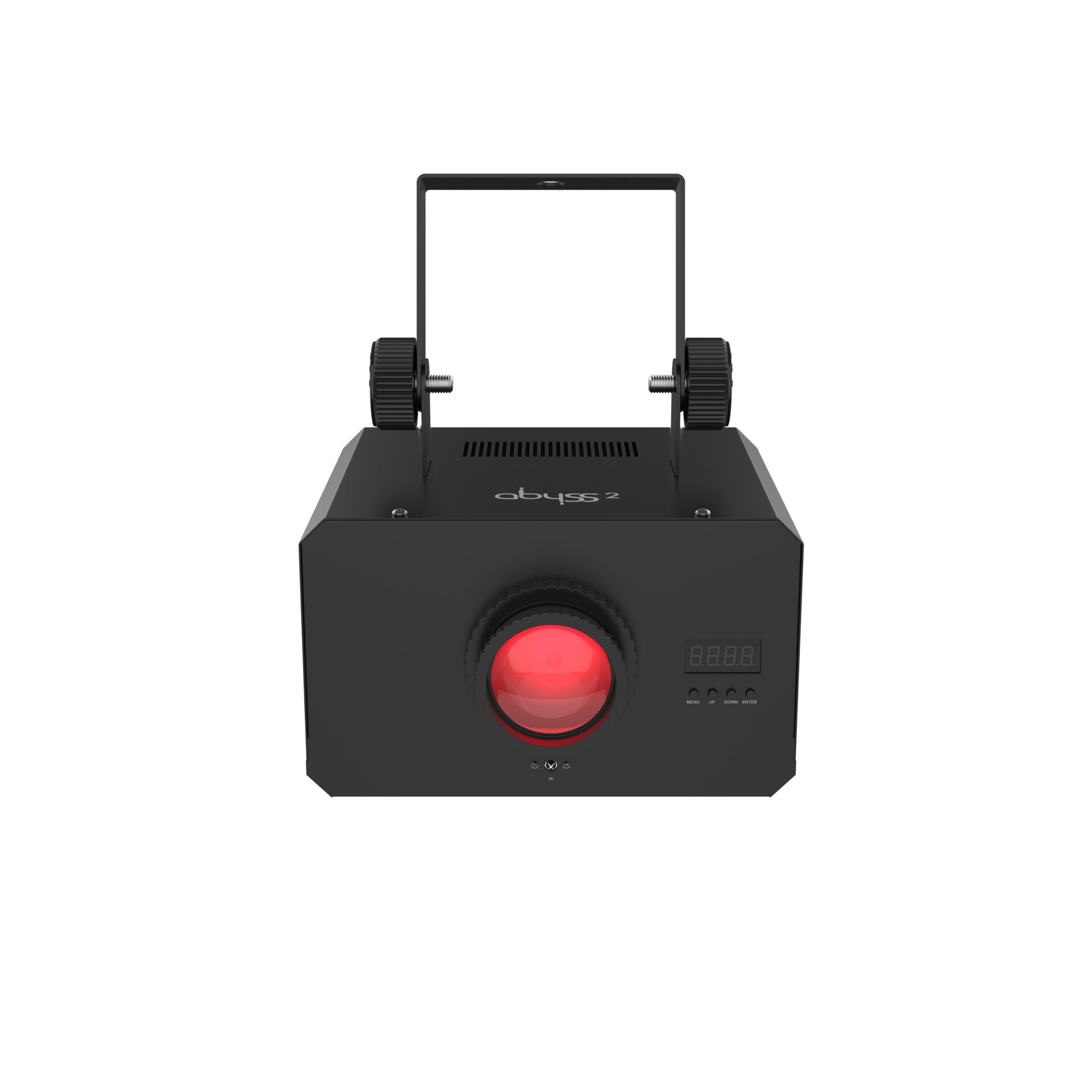

Make a splash at any event or production with this stunning LED effect light that simulates a multicolored water effect. Abyss 2 shines through any environment with or without fog and provides independent control of the ripples and color. A manual focus knob ensures proper focus at most distances and non-DMX control of most settings is available via the digital display or optional IRC-6 remote.
VIDEO
• Eye-catching, LED effect light simulates a multicolored water effect
• D-Fi' USB compatibility for wireless Master/Slave or DMX control
• Shines through any environment with or without fog using upgraded, high-power LEDs
• Achieve optimal projection and effects using 1 dichroic color wheel and 2 glass effect wheels
• Increase design options with independent control of effect and color wheels
• Access non-DMX control in Standalone mode from digital display and IRC-6
• Save time running cables and extension cords by power linking multiple units
• Fits best in the CHS-40 Gear Bag
Specifications DMX Channels: 3
DMX Connectors: 3-pin XLR
Colors: 5 + white, Rainbow scroll
Light Source: 1 LED 60 W, (2 A), 50,000 hours life expectancy.
PWM Frequency: 4K Hz
Coverage Angle: 60
Illuminance: 5,010 lux @ 2 m
Power Linking: 7 units @ 120 V; 13 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 80 W, 1.1 A @ 120 V, 60 Hz
Weight: 6.2 lb (2.8 kg)
Size: 8 x 7 x 6 in (203 x 178 x 152 mm)
Approvals: CE
What's Included • Abyss 2
• Power cord
• Quick Reference Guide
