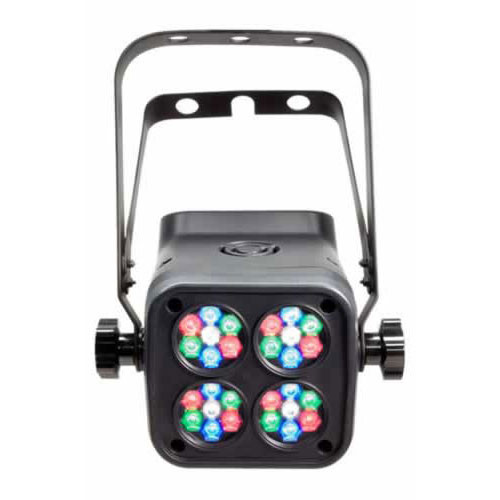

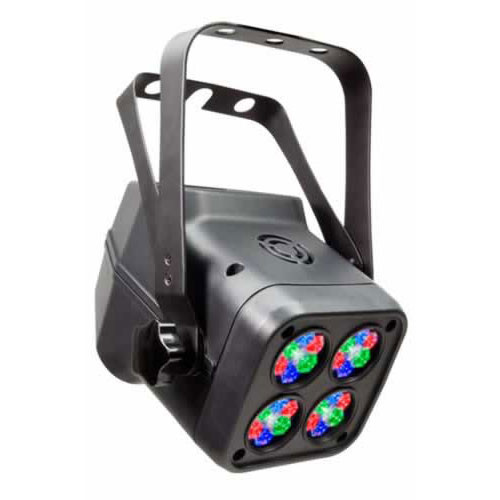

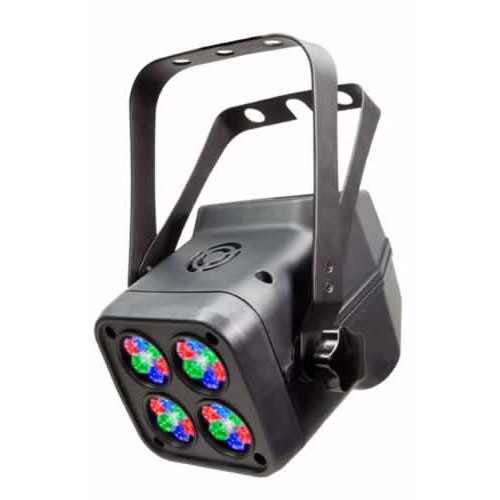

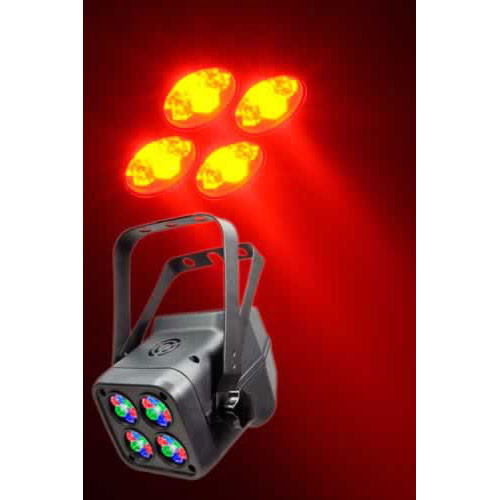

The COLORdash' Block wash fixture contains 28 1W RGBW LEDs packed into four clusters. Thanks to its white LEDs, this unit offers a virtually limitless range of colors, including pastels and true white.
Use it as a wash light or take control of individual pods to create pixel mapping-like effects. Select built-in automated programs or customize your own to create the right show for your application.
FEATURES:• 3, 4, 5, 9, 11, or 12-channel DMX-512 LED wash light (with ID addressing)
• Operating modes
3-channel: RGB control
4-channel: RGB, dimmer
4-channel: RGBW control
5-channel: RGBW, dimmer
9-channel: RGB, ID, dim, macro, strobe, automatic, custom
11-channel: RGBW, ID, dim, macro, strobe, automatic, custom
12-channel:RGB for individual block control
• RGBW color mixing with or without DMX controller
• Built-in automated programs via master/slave, DMX Recall custom programs via master/slave or DMX
• Adjustable fan speeds
• High-power, 1W (350mA) LEDs
• Double-bracket yoke doubles as floor stand
• LCD display with password protection
• Transfer custom programs between fixtures
• Additional (IEC) power output: max 20 units @ 120V (see manual for details)
• Includes 6.6ft (2m) power extension cable
SPECIFICATIONS:• 18 optics
Beam angle:17
Field angle: 32
Lux: 2510 @ 1m, 1690 @ 2m
• Light source: 28 (8 red, 8 green, 8 blue, 4 white) LEDs 50,000hrs
• Power and current: 120V, 60Hz: 41.2W, 0.35A operating
230V, 50Hz: 40.2W, 0.18A operating
• AC power: Autoswitching 100V - 240V 50/60Hz
• Weight: 4.4lbs (1.9Kg)
• Size: 9.8in x 7.6in x 5.9in (249mm x 192mm x 149mm)
