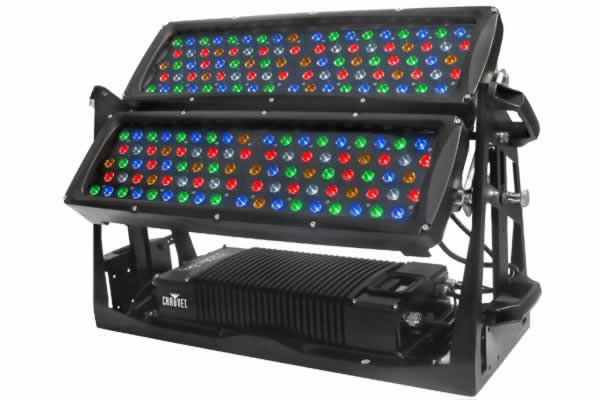

It's a true LED powerhouse with a combined total of 180 5W, RGBWA LEDseven the monsoon conditions of festival season will not dampen its output. With two independently adjustable heads, you can cover anything from a cyc, to an entire stage, or a building with just one fixture.
FEATURES:• 3, 4, 5, 6, 7, 10, or 17-channel RGBWA LED indoor/outdoor wash light
• Operating modes:
3-channel: RGB control
3-channel: HSV control
4-channel: RGB, dimmer
5-channel: RGBWA control
6-channel: RGBWA, dimmer
7-channel: RGBWA, dimmer, strobe
10-channel: RGBWA block mode (control each panel individually)
17-channel: dimmer, block 1 RGBWA, block 2 RGBWA, color macro, strobe, auto/custom, speed, dimmer speed, ID addressing
• RGBWA color mixing with or without DMX control
• Color temperature presets (3,200 10,000 K)
• Built-in automated programs
• Recall auto and custom programs via DMX
• Five distinct dimming curves
• LCD display with password protection
• Die-cast aluminum, powder coat finish housing
• Ingress protection IP66
• Color Calibration
• Omega bracket mounting system
SPECIFICATIONS:• 15 installed optics
Beam angle: 12
Field angle: 25.1
Lux: 2782 @ 5 m 30 optional optics
Beam angle: 25.5
Field angle: 50
Lux: 1198 @ 5m
• Light source: 180 x 5 W LEDs, 50,000 hrs (1,000 mA green, blue, white,)(700mA red, amber)
• Power and current: 120 V, 60 Hz; 527 W, 6 A (operating), 8.6 A (inrush) 230 V, 50 Hz; 529 W, 2.6 A (operating), 3.9 A (inrush)
• AC power: Auto-ranging 100240 V 50/60 Hz
• Power cable with plug: 65 in (1,651 mm)
• IP66 power extension cable: 103 in (2,604 mm)
• IP66 signal extension cable: 103 in (2,604 mm)
• DMX input cable: 6.5 in (165 mm)
• DMX output cable: 6.5 in (165 mm)
• Weight: 89 lbs (40.3 kg)
• Size: 31.8 x 10 x 22 in (808 x 252 x 560 mm)
