Chauvet DJ COLORado Ridge IP

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to amazon.com

chauvet colorridge
chauvet colorridge Chauvet DJ COLORado Ridge IP Chauvet DJ COLORado Ridge IP Chauvet DJ COLORado Ridge IP Chauvet DJ COLORado Ridge IP Chauvet DJ COLORado Ridge IP

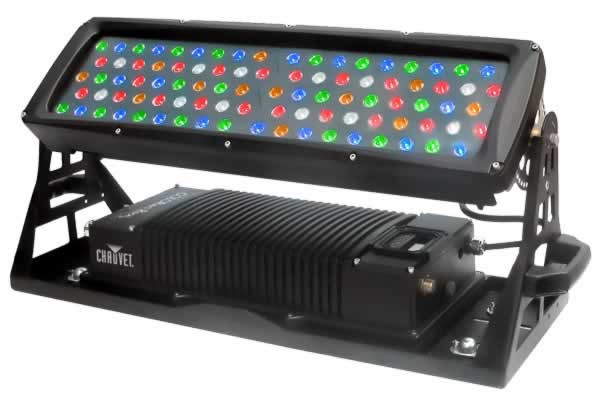

It packs a major punch and is perfect for outdoor productions and festivals. It consists of a single panel with 90 5W, RGBWA LEDs packed in a tough and sturdy frame. We added white and amber LEDs to the existing red, green and blue to offer more color mixing and better color rendering. As with the COLORado' Range IP, the COLORado' Ridge IP creates all the color effects you expect from the best cyclorama lights, yet still remains economically and ecologically sound.

CONTROL FEATURES:
• 3, 4, 5, 6, 7, or 11-channel RGBWA LED indoor/outdoor wash light
• Operating modes:
3-channel: RGB control
3-channel: HSV control
4-channel: RGB, dimmer
5-channel: RGBWA control
6-channel: RGBWA, dimmer
7-channel: RGBWA, dimmer, strobe
11-channel: RGBWA, dimmer, strobe, macro, auto/custom, dimmer curve, auto speed
• RGBWA color mixing with or without DMX control
• Color temperature presets (3,200 10,000 K)
• Built-in automated programs
• Recall auto and custom programs via DMX

ADDITIONAL FEATURES
• Five distinct dimming curves
• LCD display with password protection
• Die-cast aluminum, powder coat finish housing
• Ingress protection IP66
• Color Calibration
• Omega bracket mounting system

SPECIFICATIONS:
• 15 optional optics single head 30 installed optics single head
Beam angle: 12 Beam angle: 25.5
Field angle: 25.1 Field angle: 50
Lux: 1,037 @ 5 m Lux: 617 @ 5m
• Light source: 90 x 5 W LEDs, 50,000 hrs (1,000 mA green, blue, white,)(700mA red, amber)
• Power and current: 120 V, 60 Hz; 275 W, 2.3 A (operating) 230 V, 50 Hz; 262 W, 1.3 A (operating)
• AC power: Auto-ranging 100240 V 50/60 Hz
• Power cable with plug: 65 in (1,651 mm)
• IP66 power extension cable: 103 in (2,604 mm)
• DMX input and output cable: 65 in (1,651 mm)
• Weight: 53 lbs (24 kg)
• Size: 31.8 x 10 x 12 in (808 x 252 x 310 mm)
• Approval: ETL

OPTIONS
• Optical systems: 15 (CLENS1590)
• 16.4 ft (5 m) power extension cable (IP5POWER)
• 16.4 ft (5 m) signal extension cable (IP5SIG)

POWER SPECS FOR BOX
• AC power: • Auto-ranging 100 240 V 50/60 Hz

Additional Information

UPCN/A
SKUCOLORRIDGE
ManufacturerChauvet DJ
Product ConditionNew - On Clearance
ReturnableNo
