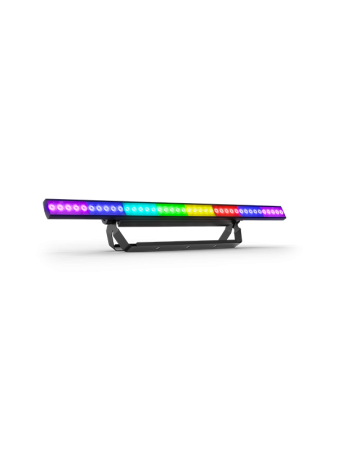

Create standout event visuals with COLORstrip PiX ILS. This strip light produces wash light and eye candy effects like you've never seen before thanks to its custom lenses. It has 40 tri-color LEDs (Red, Green, Blue). ILS compatibility makes creating coordinated light shows with this unit and different fixture types easy as 1, 2, 3. Master the beauty and power of color with this innovative fixture.
• Full-size LED strip light functions as a pixel mapping effect, uplight, or for great eye-candy effects
• ILS compatibility for use in the ILS ecosystem
• Create dazzling effects by linking multiple units together to make runway chases
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Create amazing animations and video effects with individual LED control
• Ideal for quiet applications due to silent operation and no moving parts
• Wireless, non-DMX operation is available with the optional IRC-6 remote
• Easily transports in the optional CHS-60 VIP Gear Bag
SpecificationsDMX Channels: 3, 8, 120, 122
DMX Connectors: 3-pin XLR
Light Source: 40 LEDs (tri-color) 2 W, (0.8A), 50,000 hours life expectancy.
Strobe Rate: 0 to 20 Hz
Beam Angle: 14
Field Angle: 24
Illuminance: 4,967 lux @ 2 m
Lumens: 1,491
Power Linking: 7 units @ 120 V; 10 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 79 W, 1.2 A @ 120 V, 60 Hz; 77 W, 0.8 A @ 230 V, 50 Hz
Weight: 6.2 lb. (2.8 kg)
Size: 38.9 x 2 x 6.2 in (987 x 49 x 157 mm)
Approvals: CE, ROHS
Cable Length: 5 ft (1.52 m)
Bracket Mounting Hole: 13mm
Optional Controllers: IRC6, ILS Command
WHAT'S INCLUDEDCOLORstrip Pix ILS
Power cord
Quick Reference Guide
