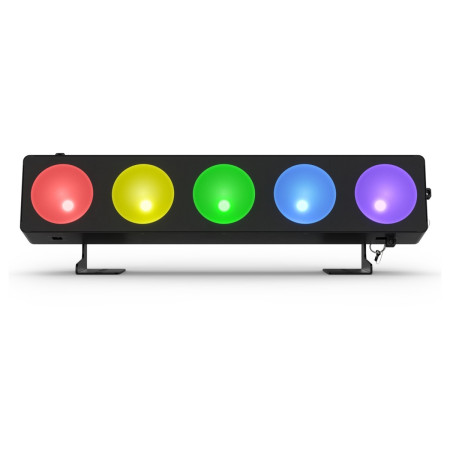

Core 51 ILS projects smoothly saturated color with COB technology and a large reflector design ideal for bringing the most natural color tones to live setups. Create custom shapes with built-in tool-free connecting hardware.
Add a D-Fi' USB (sold separately) to wirelessly sync Core 51 ILS with multiple ILS fixtures of different types. Floor mount for a perfect uplight or attach multiple fixtures together for high-impact pixel-mapped looks, runway chase effects, blinder bursts or color washes.
• Multi-purpose effect light functions as a pixel-mapping effect, chase effect, blinder, or wash light.
• Attach multiple fixtures together using the built-in, toolless connecting hardware
• ILS compatibility for use in the ILS ecosystem (D-Fi' USB sold separately)
• Connect up to 6 fixtures together vertically using the toolless linking hardware
• Generates a broad spectrum of colors and achieves natural-looking color temperatures with COB technology
• Withstand the harshness of traveling from gig to gig with a robust housing
• Offers multiple control options, including stand-alone, DMX, ILS, RF, or master/slave
SPECIFICATIONS:DMX Channels:4, 8, or 22
DMX Connectors:3- and 5-pin XLR
Light Source:5 LEDs (quad-color RGB+WW) 35W, (1.2A) 50,000 hours life expectancy
Strobe Rate:0 to 20 Hz
Beam Angle:54
Field Angle:75
Illuminance:953 lux @ 2 m
Lumens:2,875
Power Linking:6 units @ 120 V; 10 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:120 W, 1.8 A @ 120 V, 60 Hz
Power and Current:113 W, 1.1 A @ 230 V, 50 Hz
Weight:11 lbs (5 kg)
Size:23.6 x 3.1 x 4.7 in (600 x 79 x 120 mm)
Approvals:CE, RoHS
Cable Length: 5 ft (1.52 m)
Bracket Mounting Hole: 13 mm
Optional Controllers: ILS Command, RFC, RFC-XL
What's IncludedCORE 5X1 ILS
Power cord
Quick Reference Guide
