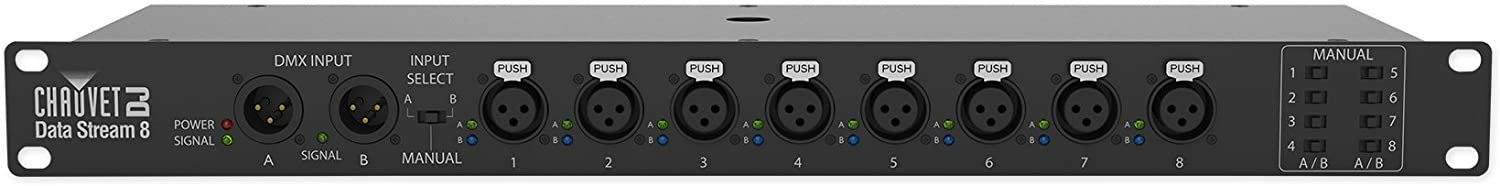

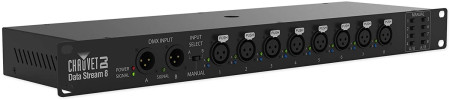

Data Stream 8 is a flexible DMX splitter designed to distribute and boost incoming DMX signals from dual inputs into 8 separate outputs via a master 3-position switch. Each input can be used simultaneously and sent to any output. Individual 2-position switches can also send data from either the A or B input separately. Each of the outputs is optically isolated from the others providing protection in the event of a short. A threaded insert allows the unit to be safely secured to trussing.
Features• Flexible DMX splitter provides up to 8 outputs from dual inputs
• Each input can be used simultaneously and sent to any output
• Individual 2-position switches send data from either the A or B input
• Master 3-position switch quickly sends A or B input to all 8 outputs
• Optically isolated outputs provide protection in the event of a short
• Threaded insert to safety secure housing to overhead truss
Specifications• DMX Connectors: 3-pin XLR•Rackmount: 1U
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 2 W, 0.04 A @ 120 V, 60 Hz
• Power and Current: 2 W, 0.03 A @ 230 V, 50 Hz
• Weight: 4.6 lbs (2.1 kg)
