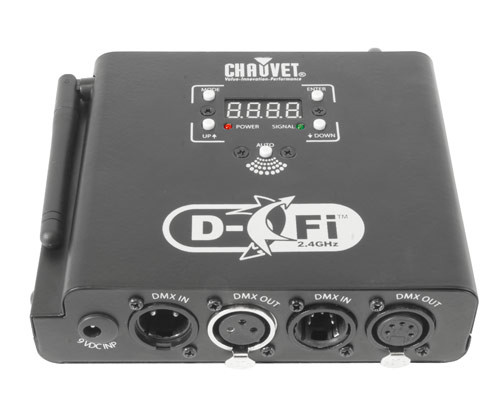

D-Fi' 2.4GHz is the latest addition to the D-Fi' family of easy to use, wireless DMX units which can function as either a transmitter or receiver. For more stable communication between units, this version operates on a 2.4 GHz frequency range and includes an "auto" function which automatically finds the best frequency and syncs the units effortlessly.
Simply plug your DMX lighting controller (hardware or software based) into one of these (to act as the wireless transmitter) and then a second or more are set as the wireless receivers wherever in the area that you need DMX lighting available without DMX cables!
FEATURES:• Wireless DMX receiver and transmitter in one
• Up to 656 ft (200 meters) range
• Auto search function finds the clearest channel available
• Sync unlimited receivers with one transmitter
SPECIFICATIONS:• DMX connectors: 3-pin & 5-pin
• Max unobstructed distance: 656 ft (200 m)
• Input voltage: 9 VDC 500 mA (external power supply: 115 V 60 Hz)
• Operating frequency: 2.4 GHz
• RF output: 18.5dBm
• Refresh rate: 15 Hz
• Weight: 0.8 lbs (0.4 kg)
• Size: 5.8 x 6.1 x 1.6 in (152 x 156 x 40 mm)
• Operating frequency: 2.433 - 2.481 GHz
