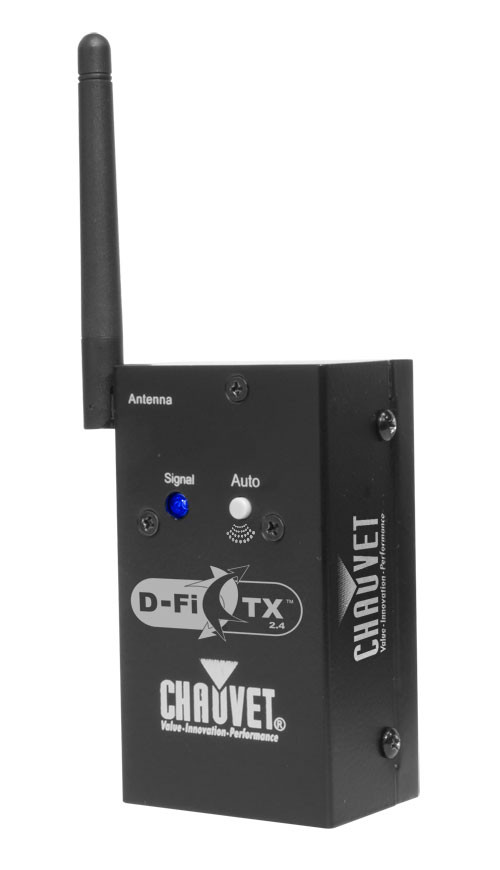

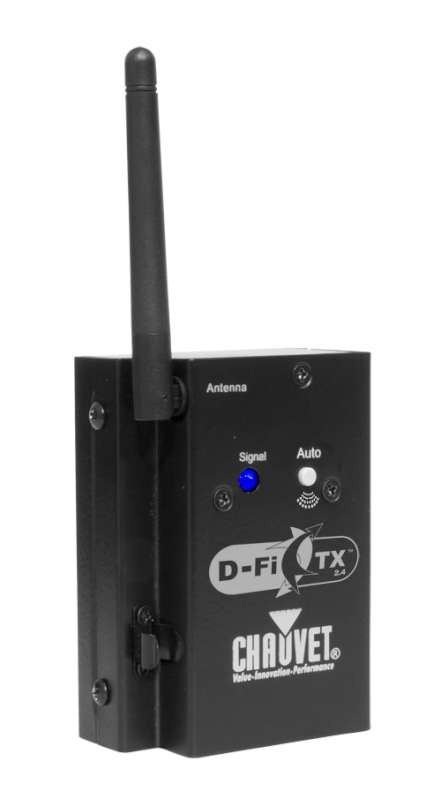

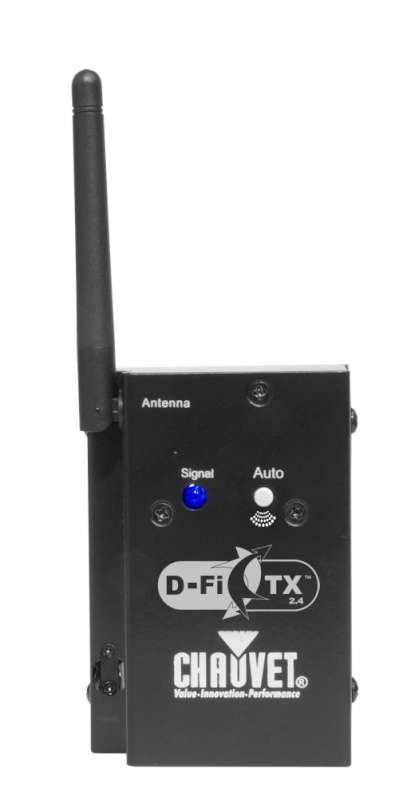

D-Fi' Tx 2.4 is the latest addition to the D-Fi' family of easy to use, wireless DMX units. The super-compact Tx model acts solely as a transmitter for any product that receives the D-Fi' 2.4GHz signal including: D-Fi' Rx 2.4, D-Fi' 2.4GHz and Freedom' Series.
For more stable communication between units, this version operates on a 2.4 GHz frequency range and includes an "auto" function which automatically finds the best frequency available and effortlessly syncs the units.
FEATURES:• Compact, easy to use Wireless DMX transmitter
• Up to 656 ft of DMX communication (line of sight)
• Compatible with all CHAUVET DFI 2.4 Ghz Products
• Wirelessly sync multiple receivers to a single CHAUVET DFI 2.4 transmitter
• Quick and easy single button sync process
• Adjustable antenna complete with a safety transport clip

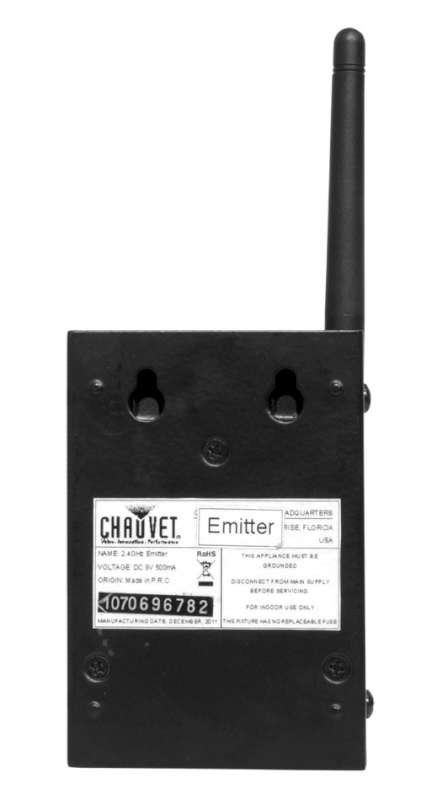

• Multiple mounting options include a M12 threaded hole for clamp, and teardrop holes for wall mounting.
SPECIFICATIONS:• DMX connectors: 3-pin
• Max unobstructed distance: 656 ft (200 m)
• Input voltage: 9 VDC, 500 mA (external power supply: 100240 VAC, 50/60 Hz)
• Operating frequency: 2.433 - 2.481 GHz
• RF output: 18.5 dBm
• Refresh rate: 15 Hz
• Antenna connection: RP-SMA
• Weight: 0.4 lbs (0.18 kg)
• Size: 3.8 x 2.6 x 1.5 in (97 x 66 x 38 mm)
• Approvals: CE, FCC
