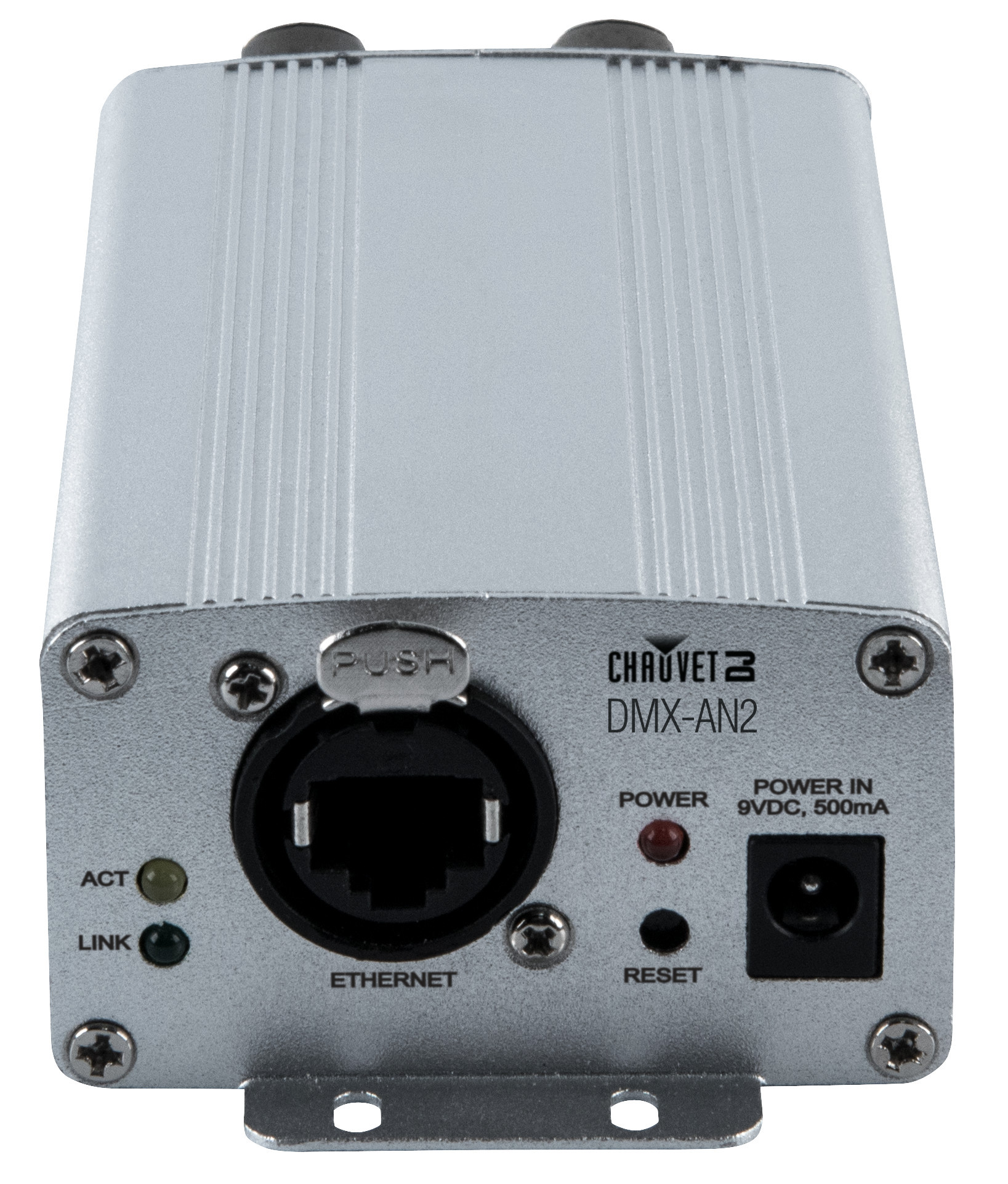

The Chauvet DJ DMX-AN2 is a multipurpose Art-Net/sACN node that converts one Ethernet cable to two DMX universes. With its optical and electrical isolation, the DMX-AN2 is ready for any situation, while the durable Neutrik etherCON in/thru port ensures reliable performance. Both outputs can be set to either Art-Net or sACN, and the DMX-AN2 functions as an Art-Net to DMX or DMX to Art-Net interface. The unit supports Power over Ethernet (POE) or can be powered by the included external power supply.
VIDEO
Features: • Multipurpose Art-Net/sACN node converts 1 Ethernet cable to 2 DMX universes
• Optical and electrical isolation is ready for any situation
• No universe/subnet setup with the built-in web-based GUI
• Durable Neutrik etherCON in/thru port ensures reliability
• Automatically redirect the web page if the IP address is changed
• Supports Power over Ethernet (POE) or an external power supply
• Both outputs can be set to either Art-Net or sACN
• Functions as an Art-Net to DMX or DMX to Art-Net interface
• Onboard LED indicators quickly inform status
• Integrated mounting bracket to quickly install into any location
Specifications • DMX Channels: 1024

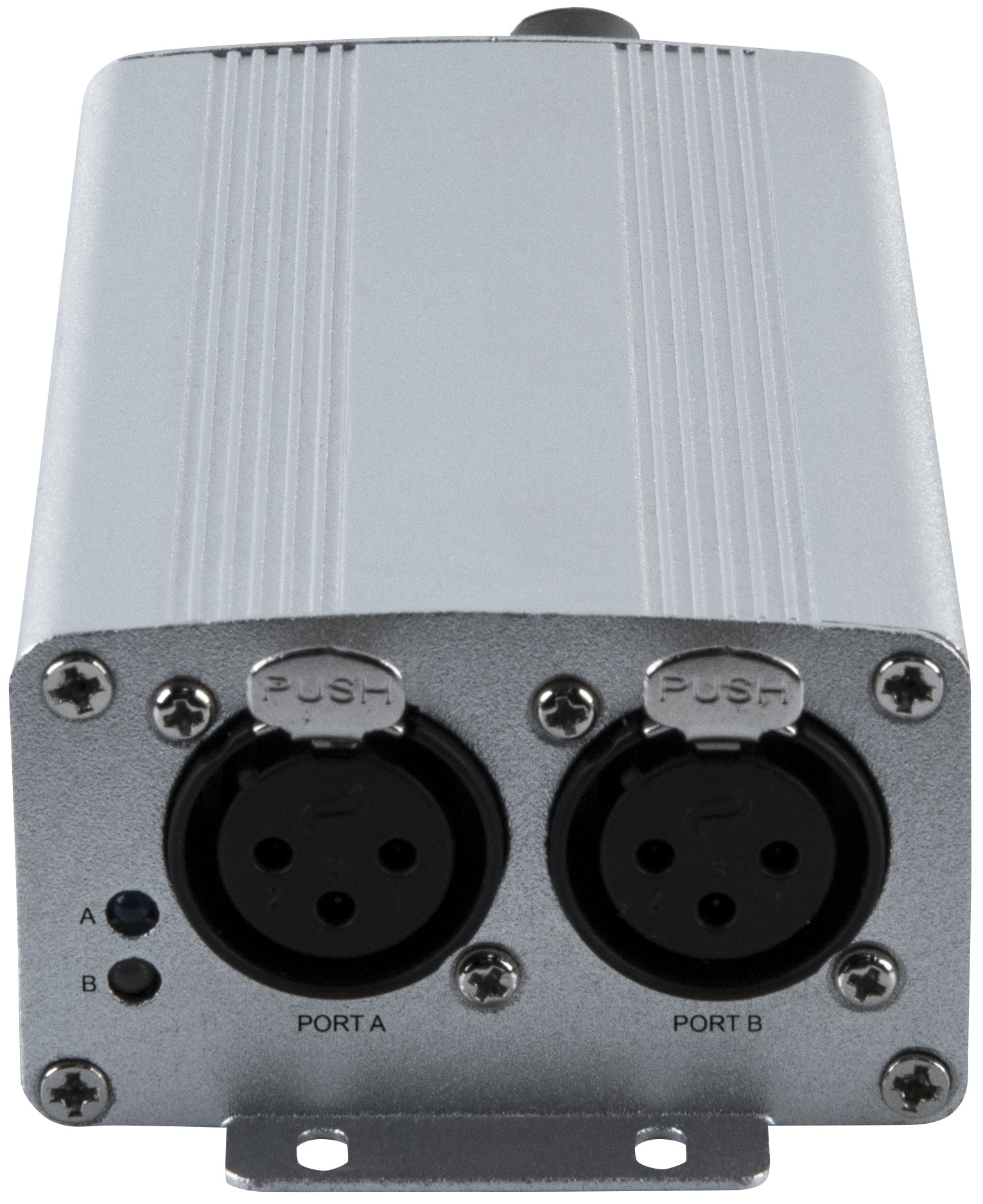

• DMX Connectors: 2 x 3-pin XLR
• Input Voltage: (DC) 9 VDC, 500 mA (external power supply: 100 to 240 VAC, 50/60 Hz) (POE) 48V 0.4 A
• Weight: 0.4 lb (0.2 kg)
• Size: 4.7 x 2.5 x 1.5 in (120 x 64 x 39 mm)
• Approvals: CE
• Control Protocol: Art-Net, DMX, sACN
• Art-Net Version: 3
What's Included • DMX-AN 2
• Power Adapter
