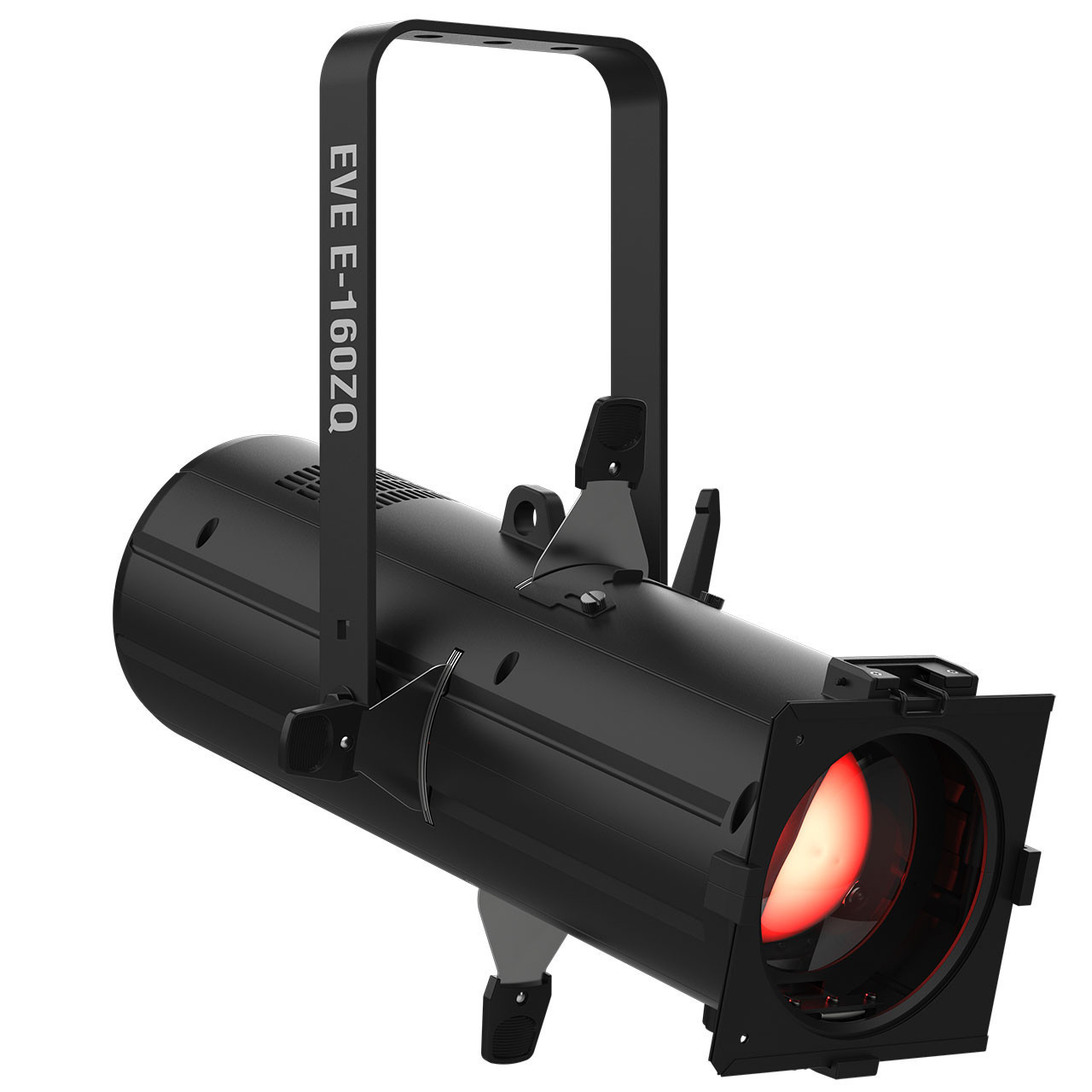

Upgrade your small stage lighting with EVE E-160ZQ. This full-color ellipsoidal is designed for both mobile and install applications. With a 160W quad-color (RGB+WW) LED this fixture is at the top of its class. Its pre-set color temperature ranges simplify the lighting design process. Enjoy effortless stage lighting with EVE E-160ZQ.
• Full-color ellipsoidal designed for mobile and installation applications
• Integrated zoom optics ensure subject remains in the spotlight from a wide range of distances
• Pre-set color temperature ranges eliminate the need for manual color blending
• Flicker-free operation suitable for on-camera use
• D-Fi USB compatibility for wireless master/slave or DMX control
• powerCON-compatible power input/output connections for power linking
Specifications• DMX Channels:3, 4, 11
• DMX Connectors:3- and 5-pin XLR
• Light Source:1 LED (quad-color RGBW) 160 W, 7.3 A), 50,000 hours life expectancy
• Zoom Angle:24 to 37
• Lumens:5231
• Power Linking:9 units @ 120 V; 16 units @ 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Gobo Size:M (66 mm outside, 48 mm image, 2 mm max thicknes
• Weight:12.2 lb. (5.5 kg)
• Size:18.4 x 9.8 x 16.9 in (467 x 248 x 429 mm)
• Approvals:CE, RoHS, MET
• Accessory Holder Size: 6.25 in
• Color Temperature Range: 2800 K 8000 K
• Strobe Rate: 1 to 30 Hz
• Illuminance (24): 7072 lux @ 2 m
• Illuminance (37): 2964 lux @ 2 m
• Illuminance (24): 1132 lux @ 5 m
• Illuminance (37): 474 lux @ 5 m
• Power and Current: 150 W, 1.3A @ 120 V, 60 H
• Power and Current: 150 W, 0.7 A @ 230 V, 50 Hz
What's Included• EVE E-160ZQ
• Power cord
• Gel frame
• Metal gobo holder
• Glass gobo holder
• Quick reference guide
