The Freedom' Par Quad-5 pairs the familiar Freedom' Par form with high-power quad-color LEDs. Five, 5-watt RGBA quad-color LEDs produce vivid, saturated colors and nearly eliminate multicolored shadows. A completely wireless DMX control option is available and made easy using built-in battery power and an integrated D-Fi' 2.4 GHz system. For even easier operation when wireless DMX isn't needed, point-and-shoot operation is available using the IRC (infrared remote control).
VIDEO
FEATURES: • 100% TRUE wireless, battery-operated, RGBA LED Par with built-in D-Fi' 2.4GHz wireless control
• Create rich colors and pastels with amber LEDs
• Master/slave wirelessly using D-Fi 2.4 GHz with other Freedom' fixtures for a coordinated light show
• Create coordinated light shows by linking other Freedom' fixtures in master/slave mode
• Set up and tear down in a fraction of the time by eliminating the need for DMX or power cables
• Convenient wireless control using D-Fi' 2.4GHz or IRC remote
• Send and receive wireless DMX signals with the built-in D-Fi' 2.4GHz transceiver
• Extended run time of up to 20 hours with the rechargeable, lithium-ion battery
• Achieve pristine color mixing with 180 RGBA LED (46 red, 42 green, 46 blue and46 amber)
• Wireless control of sectional, eye-catching chase effects via DMX or IRC remote
• Extend the battery's life span with built-in discharge protection
• Shine light where it is needed using the adjustable tilting head
• Access built-in, eye-catching automated and sound-activated programs via wireless DMX, IRC remote or master/slave mode
• Functions as a D-Fi' 2.4GHz receiver or transmitter to transmit wireless DMX to any D-Fi' 2.4GHz receiver fixture including Freedom' Par and Freedom' Strip Mini fixtures
• IRC remote provides wireless non-DMX control
• Easily connects to Freedom' Par and Freedom' Strip Mini using backward compatibility mode
• Enhance light shows with adjustable electronic strobe and dimmer effects

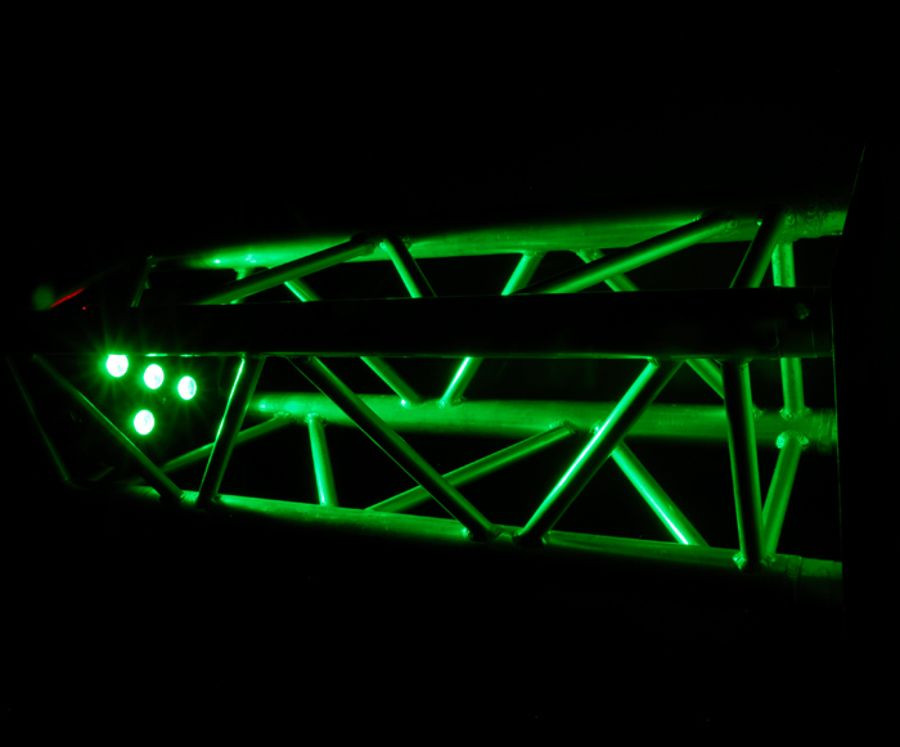

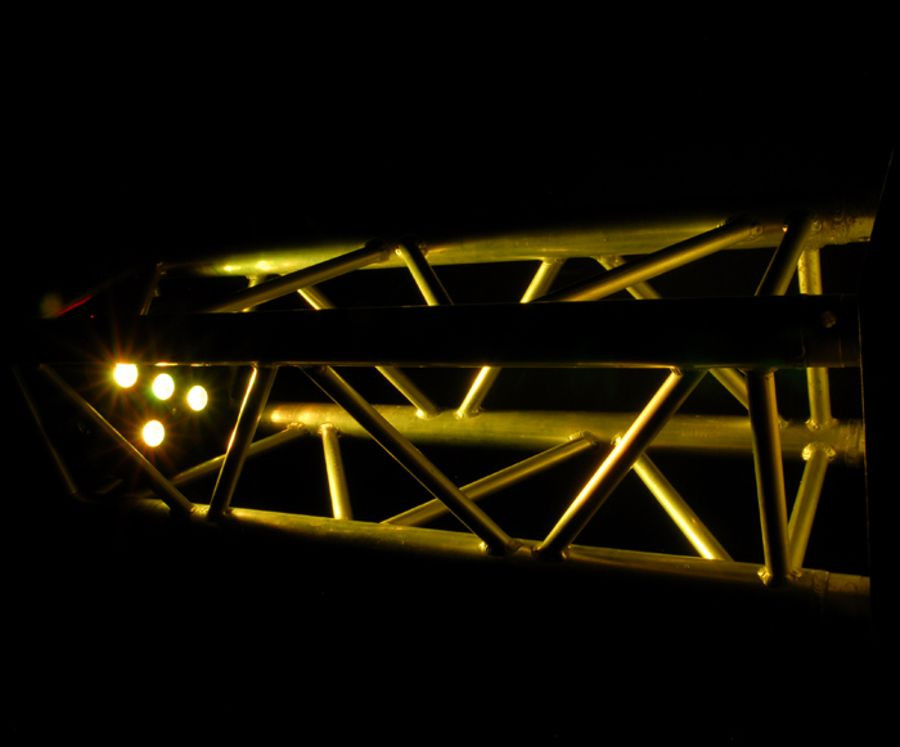

• Compact design easily fits inside sticks of TRUSST
• Easily charge, store and transport your fixtures from gig to gig in the Freedom' Charge P
SPECIFICATIONS: • DMX Channels: 4 or 5

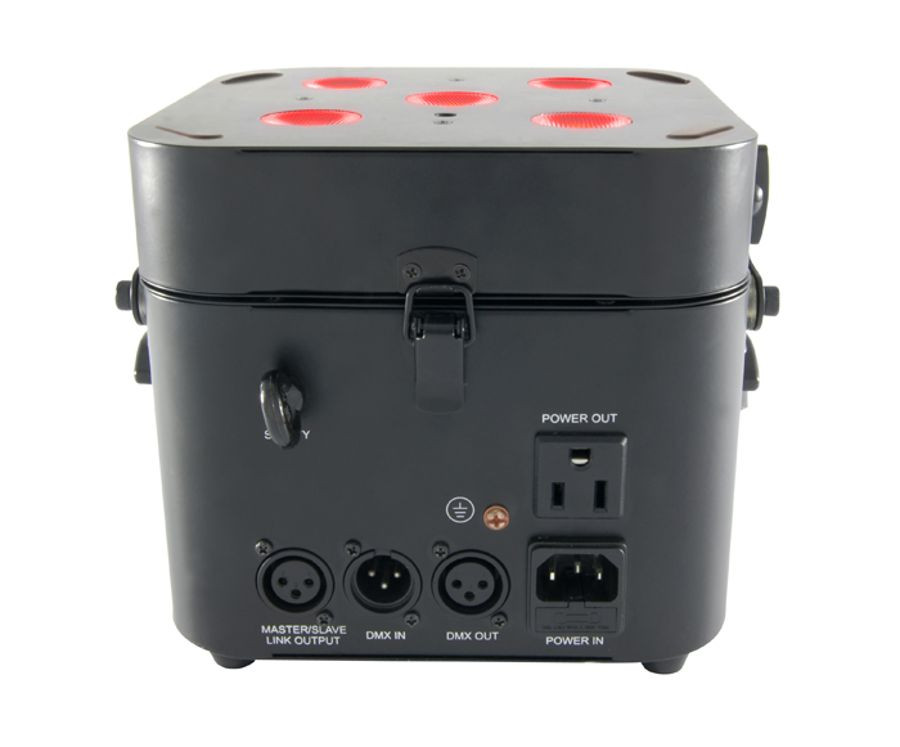

• DMX Connectors: 3-pin
• Light Source: 5 (quad-color) 5W (350mA x 4) LEDs 50,000hrs
• Beam Angle: 15
• Field Angle: 24
• Operating Frequency: 2.433 - 2.481GHz
• Illuminance: 1,390lux @ 2m
• Maximum Run Time (all on): up to 8hrs
• Maximum Run Time (single color): up to 20hrs
• Recharge Time: 6hrs
• Power Linking: 16 units @ 120V; 25 units @ 230V
• Input Voltage: Auto-ranging 100-240VAC 50/60Hz
• Power and Current: 71W, 0.6A @ 120V 60Hz
• Power and Current: 94W, 0.4A @ 230V 50Hz
• Weight: 8.2lbs (3.7kg)
• Size: 9.3 x 8.5 x 8.8in (236 x 215 x 223mm)
• Included Controllers: IRC
• Approvals: CE, FCC
