Experience the next generation of 100% TRUE wireless, battery-operated event lighting power with Freedom Par Q9. This quad-color (RGBA) LED uplight not only has the favorite built-in D-Fi transceiver for wireless DMX control, but even more wireless options are available with a built-in RF receiver for use with the RFC (optional) or RFC-XL (included) remote. Brilliant color mixing comes from new secondary optics and a magnetic diffuser pops on or off with ease to widen the coverage area. Adjusting settings has never been easier with the OLED display with full-text and now you can adjust run times to keep the Freedom power going all event long!
VIDEO
• 100% TRUE wireless, battery-operated, quad-color (RGBA) LED uplight with built-in D-Fi transceiver
• New secondary optics provide perfect color blending with nearly no artifacts
• Magnetic diffuser pops on or off with ease and widens the coverage area
• Adjustable run times ensure the fixture will last the length of the event
• OLED display allows for full-text and to easily change fixture's settings
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• Adjust the projection angle using the spring-loaded kickstand
• Built-in glare shield protects light spillage and eye fatigue
• Extend the fixture's lifespan with the onboard charge and discharge protection circuitry
• Achieve smooth LED fading with built-in dimming curves
• Compact and lightweight design easily fits inside sticks of TRUSST
Specifications: DMX Channels: 4, 6 or 14
Max Unobstructed Distance: 600 ft (183 m)
Light Source: 9 LEDs (quad-color RGBA) 6 W, (2.3A), 50,000 hours life expectancy
Strobe Rate: 0 to 22 Hz
Beam Angle: 19
Field Angle: 35
Recharge Time: 3 hours
Operating Frequency: 2.412 to 2.484 GHz
Illuminance: 3580 lux @ 2 m
Lumens: 1,161
Input Voltage: 24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
Power and Current: 31 W, 0.3 A @ 120 V, 60 Hz ; 30 W, 0.2 A @ 230 V, 50 Hz
Weight: 4.6 lbs (2.1 kg)
Size: 4.7 x 4.7 x 4.9 in (120 x 120 x 126 mm)
Approvals: CE, UKCA, RoHS, FCC
Beam Angle (with diffuser): 37
Field Angle (with diffuser): 68
Illuminance (with diffuser): 529 lux @ 2 m
Lumens: 1,161
Run Time (adjustable): 3, 5, 8, or 12 hrs
Mounting Hole: M12
Optional Controllers: RFC, RFC-XL, FlareCON

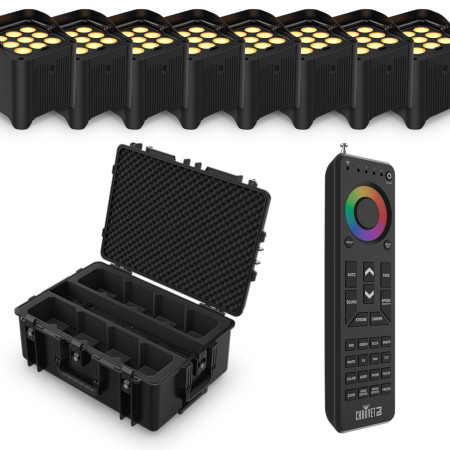

What's In The Box: • (8) Freedom Par Q9
• (8) External power supplies
• (8) Magnetic diffuser
• (8) Quick reference guide

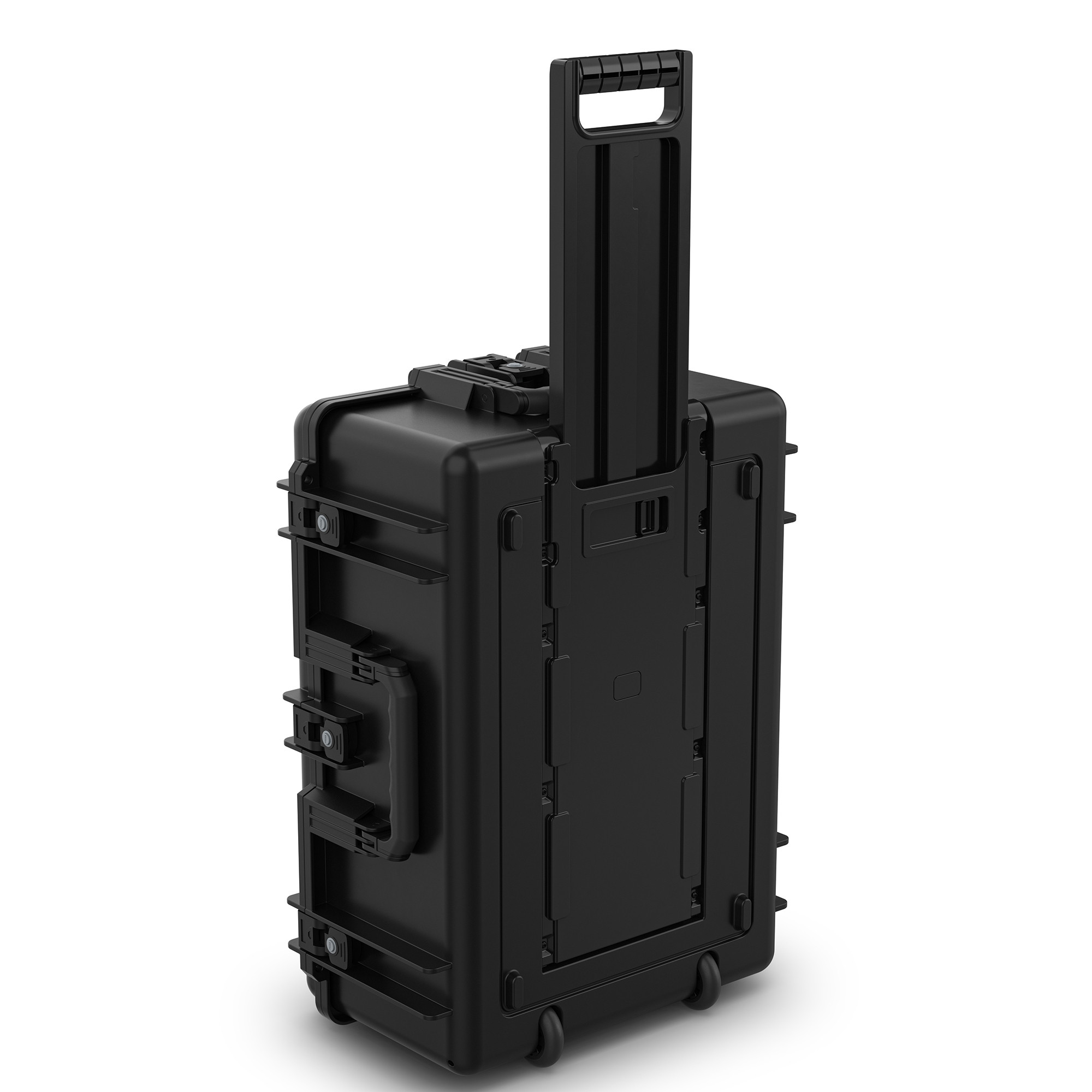

• (1) Freedom Charge 8P Pelican-Style Transport Charging Case
• (1) RFC-XL Handheld Remote Control
