Designed for DJs, event hosts, and performers on the go, this all-in-one 3-in-1 lighting kit makes setup and teardown quick and hassle-free. It includes a sturdy tripod, a convenient wireless footswitch, and durable carry bags for easy transport.The GigBar 3 ILS combines multiple effects in one compact unit: vibrant LED pars deliver wide color wash coverage, dynamic LED derbies project sweeping multicolor beams across the dance floor, and an integrated LED strip adds extra visual flair for a complete light show experience.Expand your setup with up to four additional compatible fixtures to build a customized lighting rig tailored to any venue or event.

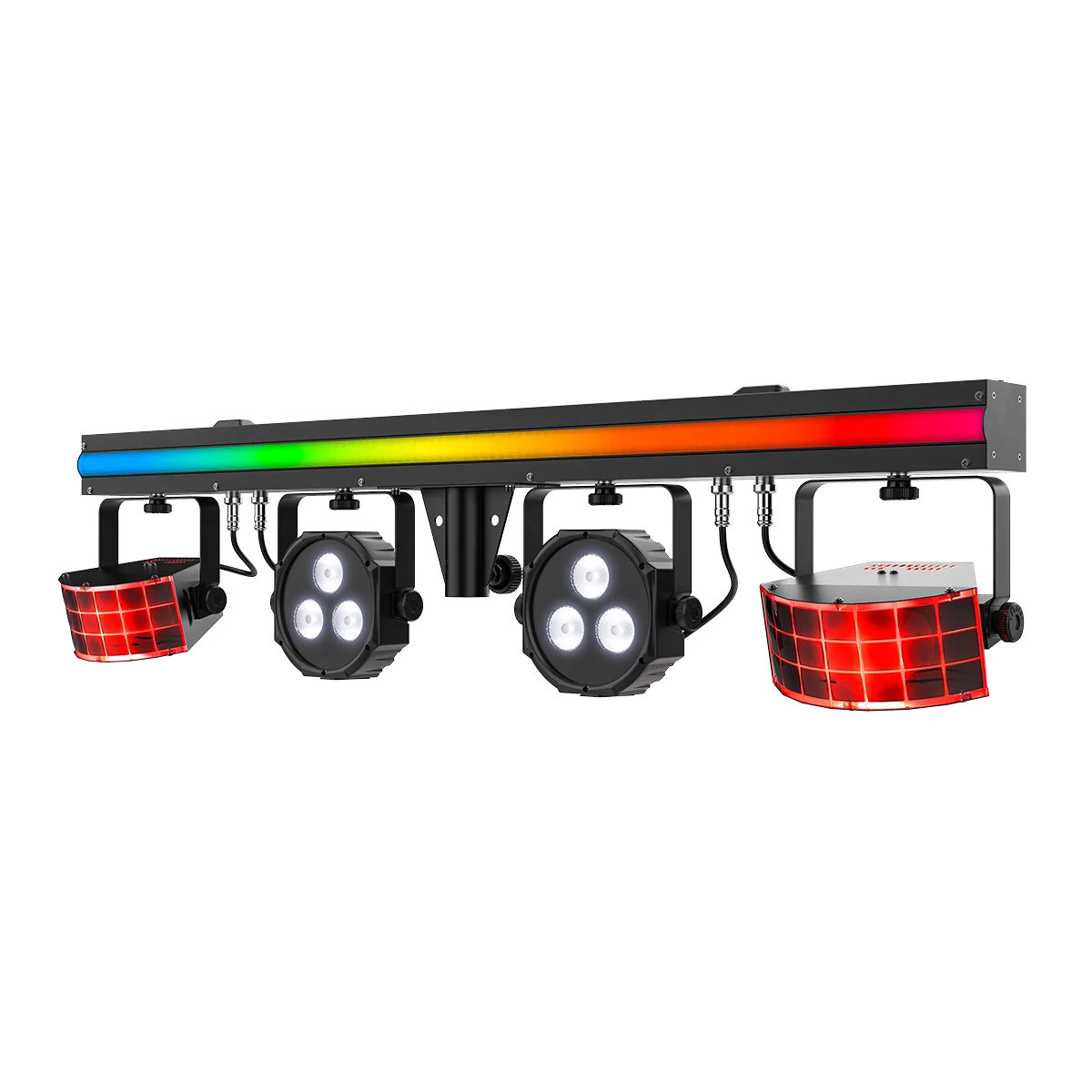

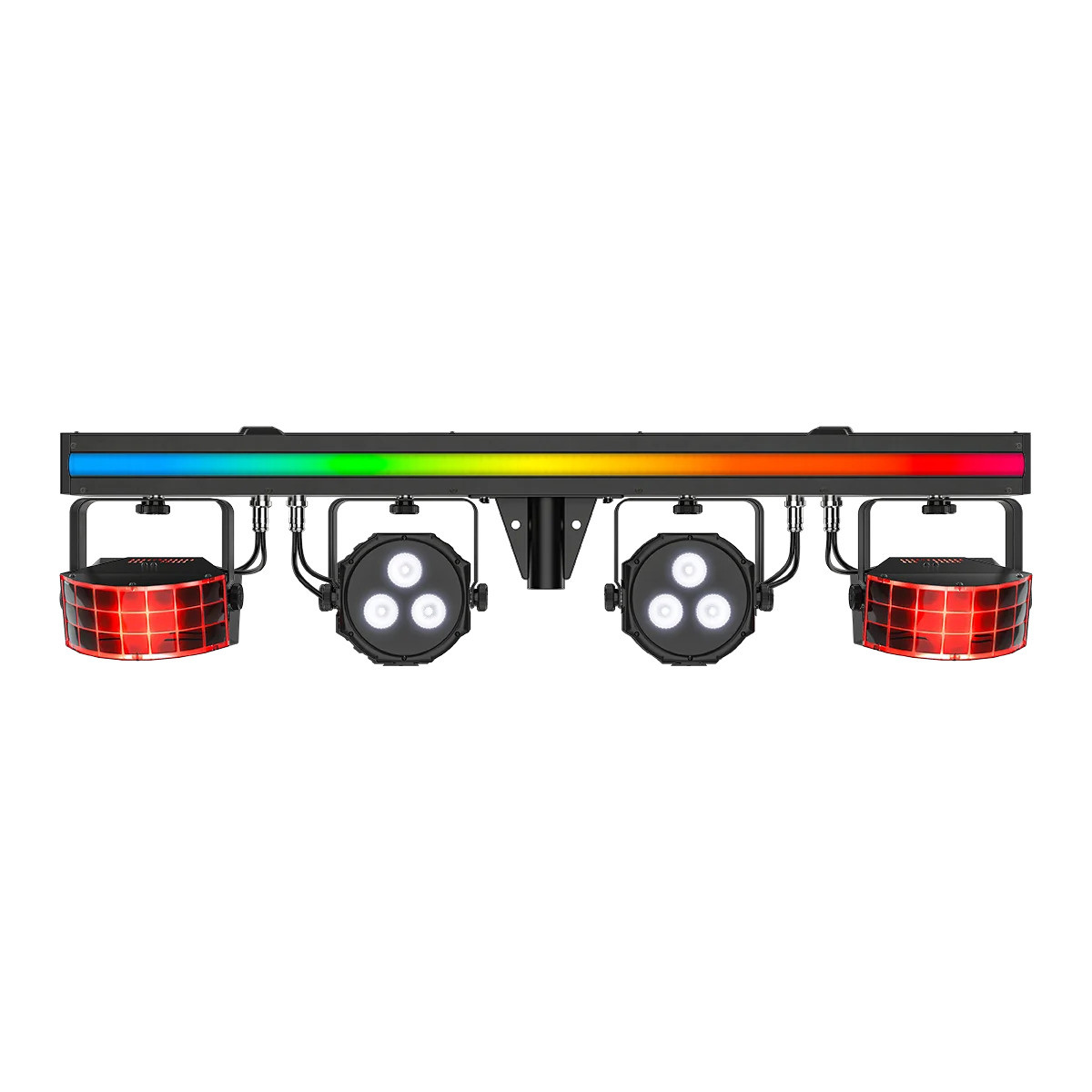

• 3-in-1 light that includes a pair of LED derbies, LED pars, and an LED strip, all mounted on one bar
• Built-in LED strip adds pizazz and eye-candy effects to mobile entertainment setups
• ILS compatibility for use in the ILS ecosystem
• Create the ultimate light show by mounting up to 4 additional fixtures to the top of the GigBar 3 ILS
• Reversible tripod bracket allows for upside down mounting
• Easy navigation and access all functions directly from the full-color LCD display

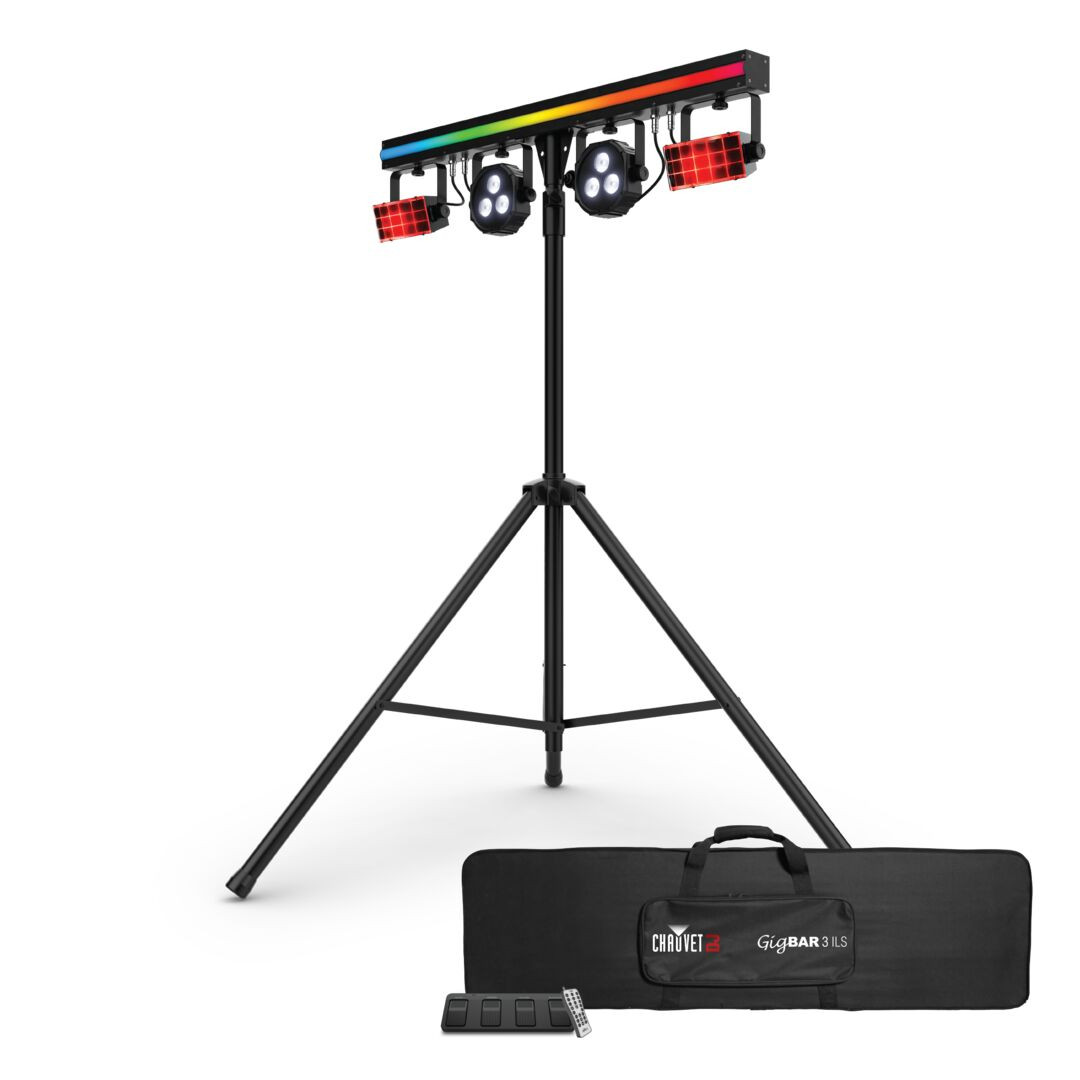

• Get in and get out quickly with the included tripod, wireless footswitch, and FREE carry bags
• Phenomenal, built-in, automated, and sound-activated programs that include all 3 effects to make one complete show
• Easy control from the display, included RF Remote, wireless foot switch or DMX to take your gig to a higher level
• Save time running cables and extension cords by power linking multiple units
• DMX Channels:2, 21, or 132
• DMX Connectors:3-pin XLR
• Strobe Rate:0 to 20 Hz
• Operating Frequency:2.412 to 2.484 GHz
• Power Linking:11 units 120 V; 18 units 230 V
• Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 47 W, .7A 120 V, 60 Hz; 45 W, .4 A 230 V, 50 Hz
• Weight:13.2 lbs. (6 kg)
• Size:41.2 x 3.7 x 10.7 in (1047 x 94.5 x 272 mm)
• Approvals:CE, ROHS, FCC
• Light Source (pars): 6 LEDs (quad-color RGB + UV) 3.7 W 1A), 50,000 hours life expectancy
• Light Source (LED Strip): 74 LEDs (red, green, blue) 5 W (.03 A), 50,000 hours life expectancy
• Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 3 W (.6 A), 50,000 hours life expectancy
• Stand Height: 4.8 ft to 7.8 ft (1.5 to 2.4 m)
• Tripod leg width: 3.9 ft (1.2 m)
• Fits Tripod Size: 1.5 in (37.4 mm)
• Beam Angle (pars): 13
• Field Angle (pars): 24
• Coverage Angle (Derby): 114
• Coverage angle ( LED Strip ) : 174
• Cable Length: 9 ft (2.844 m)
• Foot Switch Operating Frequency: 433 MHz
• Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
• Footswitch battery: 9 V 300mA
• Optional Controllers: ILS Command, RF Remote
What's Included• Gig Bar 3 ILS
• Power cord
• Stealth filter
• Wireless footswitch
• RF remote
• Tripod
• Carrying bag
• Tripod bag
• User Manual
