Chauvet DJ GIGBAR IRC 4-in-1 Portable Lighting Setup

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

chauvet gigbarirc
chauvet gigbarirc Chauvet DJ GIGBAR IRC 4-in-1 Portable Lighting Setup Chauvet DJ GIGBAR IRC 4-in-1 Portable Lighting Setup Chauvet DJ GIGBAR IRC 4-in-1 Portable Lighting Setup Chauvet DJ GIGBAR IRC 4-in-1 Portable Lighting Setup
Images may show accessories or configurations not packaged with this item.

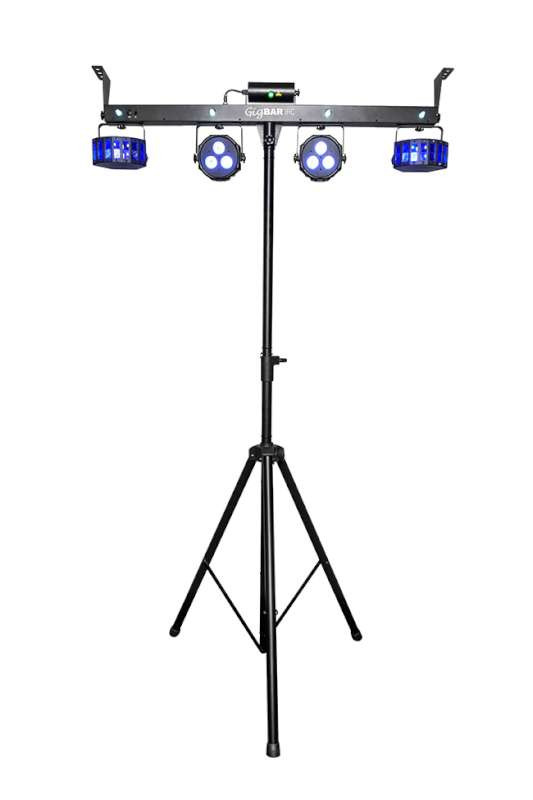

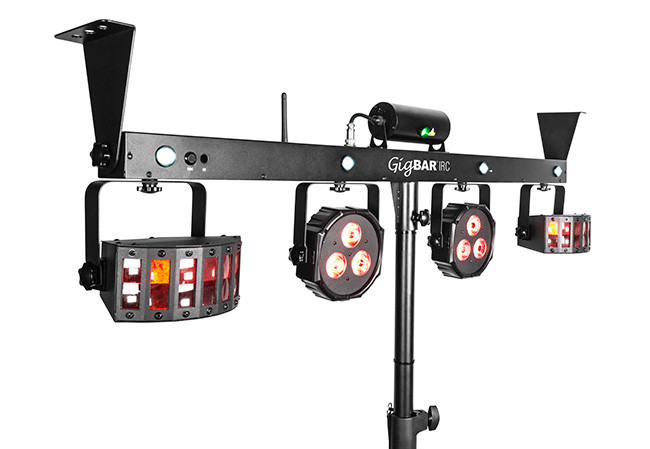

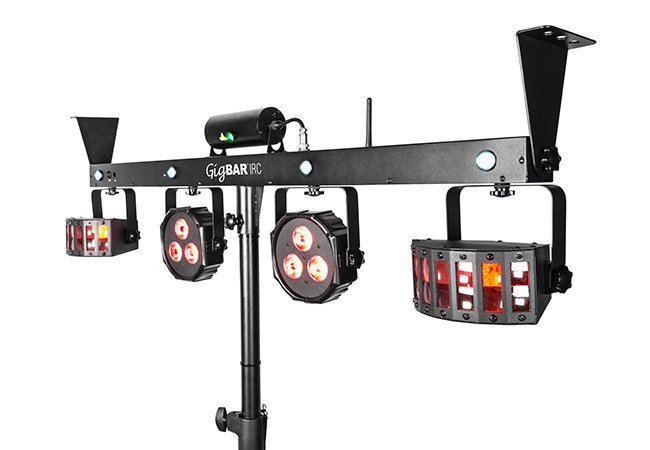

The Chauvet DJ GigBAR IRC re-imagines the perfect all-in-one lighting solution for mobile entertainers. With 4 different kinds of lighting fixtures mounted to a single lighting stand, this unit makes setting up and tearing down your lighting design easier than ever, regardless of the type of event. With a pair of derby-style LED lights, 2 par wash lights, a strobe effect, and single laser, you get the show you want in the smallest, most affordable package possible. This lighting package includes a sturdy tripod, IRC remote, carry bags, and a footswitch controller for easy show control. An arsenal of built-in and sound-activated programs utilizing all of the lights let you easily create an entire show. Control is a driving force behind the GigBar IRC, as you can control the lighting from the LCD display, the IRC-6 remote, the wirelss footswitch, or even connect it to your DMX control unit. The GigBar IRC is also power linkable, saving you valuable setup time.

• All-in-one mounted light solution, including strobe effect, LED Derby lights, LED pars, and laser
• Each derby and par is adjustable and interchangeable, allowing you to cover the room as needed
• Each GigBar IRC includes a carry bag with tripod and wireless footswitch for simple setup and tear-down
• Mount the GigBar to trussing using the included mounting brackets to add to your show
• LED strobe lights chase and create slow motion effects
• Hundreds of laser beams and dots add to the effect of the LEDs, creating an even greater spread of your lighting
• High-power LEDs inside the 2 Derby lights project a total of 42 Red, Green, and Blue rotating beams
• Automated and sound-active programs work with all 4 effects to create a show without the need for DMX control
• Choose from IRC-6 remote, wireless footswitch or DMX to control the GigBar IRC
• Want a bigger show? The GigBarIRC is master/slave ready, allowing you to control multiple lights from one unit.
• Save time running cables and extension cords by power linking multiple units

• DMX Channels: 3, 9 or 20
• DMX Connectors: 3-pin XLR
• Light Source (Pars): 6 LEDs (tri-color RGB) 2.5 W (956 mA), 50,000 hours life expectancy
• Light Source (strobe): 4 LEDs (white) 1 W (281 mA), 50,000 hours life expectancy
• Light Source (derby): 6 LEDs (2 red, 2 green, 2 blue) 6 W (1.7 A), 50,000 hours life expectancy
• Light Source: 650 nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
• Strobe Rate (strobe): 0 to 18 Hz
• Stand Height: 4.8 to 8.3 ft (1.5 to 2.5 m)
• Tripod Leg Width: 3.9 ft (1.2 m)
• Beam Angle (Pars): 13
• Beam Angle (strobe): 8
• Field Angle (Pars): 24
• Field Angle (strobe): 18
• Coverage Angle (laser): 93
• Coverage Angle (derby): 114
• Footswitch Operating Frequency: 433 MHz
• Illuminance (Pars): 1,205 lux @ 2 m (per head)
• Illuminance (strobe): 86 lux @ 2 m (per zone)
• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
• Power Linking: 16 units @ 120 V; 29 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 44 W, 1 A @ 120 V, 60 Hz
• Power and Current: 43 W, 1 A @ 230 V, 50 Hz
• Fits Tripod Sizes: 1.5 in (37.4 mm)
• Weight: 14.4 lb (6.6 kg)
• Size: 46.7 x 4.3 x 15.2 in (1,185 x 110 x 387 mm)
• Optional Controllers: IRC-6
• Classified per EN/IEC 60825-1:2007
• Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
• Approvals: CE, FDA, FCC

Additional Information

ManufacturerChauvet DJ
Product ConditionNew - On Clearance
