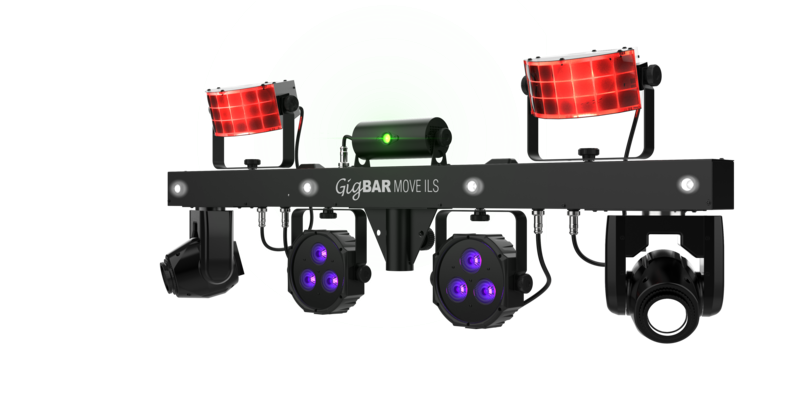

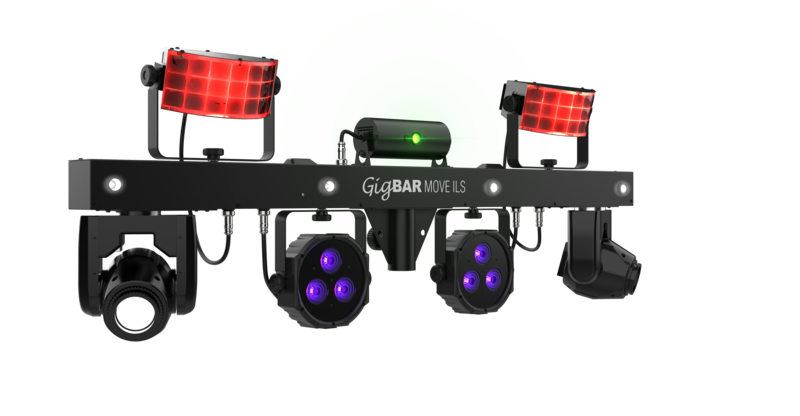

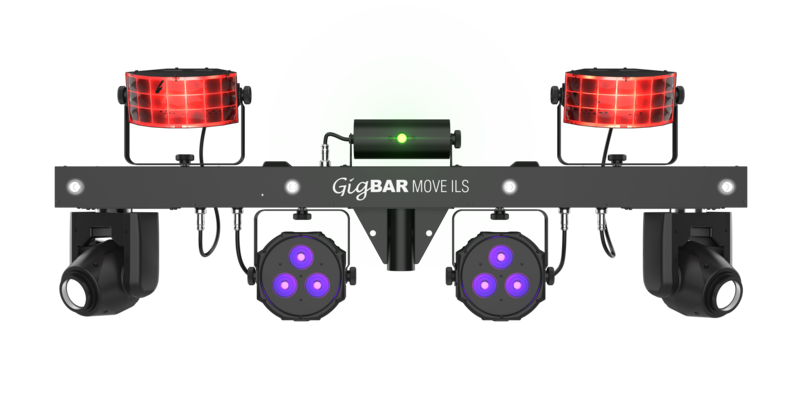

Features• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• ILS compatibility for use in the ILS ecosystem (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Control any ILS-enabled fixture wirelessly with built-in D-Fi transceiver
• Use the included RF remote to trigger the built-in shows without needing line of sight
• Separate color and gobo wheels in moving heads allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all functions, directly from the full-color LCD display
• Safely mounts to truss or ceilings using the 3/8 in threaded inserts

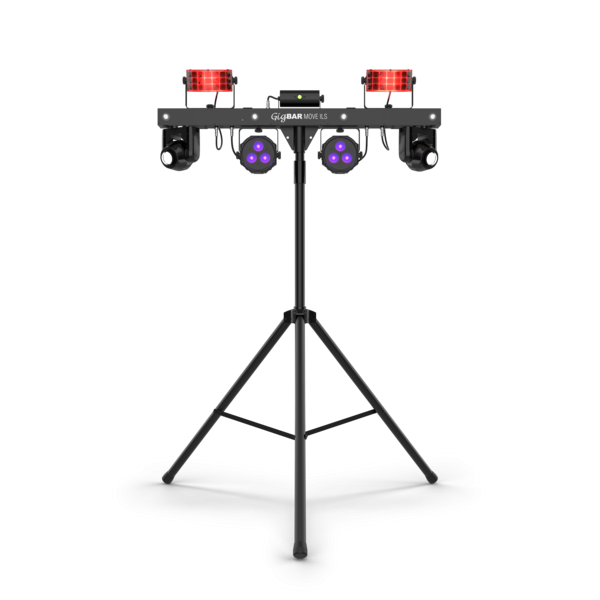

• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects and make them pop
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
Specifications:DMX Channels:3, 27 or 46
DMX Connectors:3- pin XLR
Pan and Tilt:540/180
Colors:(moving head): 7 + white, continuous scroll at variable speeds
Gobos:(moving head): 7 + open, continuous scroll at variable speeds
Light Source:
(pars): 3 LEDs (quad-color RGB+UV) 3.5 W (1 A), 50,000 hours life expectancy
(strobe): 4 LEDs (white & UV) 5 W (1 A), 50,000 hours life expectancy
(derby): 6 LEDs (2 red, 2 green, 2 blue) 1 W (1 A), 50,000 hours life expectancy
(moving head): 1 LED (cool white) 10 W (2.3 A), 50,000 hours life expectancy
(laser): 650nm/100 mW (red) laser diode, 532 nm/30 mW (green) laser diode
Strobe Rate:0 to 20 Hz
Beam Angle:(moving head): 11
(pars): 19
(strobe): 8
Field Angle:(pars): 30
(strobe): 18
Coverage Angle:(derbv): 131
(laser): 93
Fits Tripod Size: 1.5 in (37.4 mm)
Illuminance:
(pars): 1,205 lux @ 2 m (per par)
(moving head): 1056 lux @ 2 m (per head)
(strobe): 86 lux @ 2 m (per LED)
Power Linking:7 units @ 120 V; 12 units @ 230 V
Input Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current:
81 W, 1.1 A @ 120 V, 60 Hz
79 W, 0.6 A @ 230 V, 50 Hz
Weight:23.4 lb (10.7 kg)
Size:43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
Approvals: CE, RoHS, UKCA, FDA, FCC
Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
Tripod leg width: 3.9 ft (1.2 m)
Footswitch Operating Frequency: 433 MHz
Foot Switch Max Unobstructed Distance: 100 ft (30.5 m)
Footswitch battery: 9 V alkaline
Included Controllers: RF remote, wireless footswitch
What's Included• GigBAR Move ILS
• Power cord
• Carrying bag
• Tripod
• Footswitch
• RF Remote
• Quick Reference Guide
