Easy navigation and access to all the powerful 32-watt moving head functions can be accessed directly from the full-color LCD display and Totem Mode keeps the moving heads focused on the dance floor. Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects.
GigBAR Move + ILS gives you individual control of each effect to ensure your show looks the way you need it to, but gone is the need to aim a remote directly at the unit! The included RF remote triggers built-in shows without needing line of sight operation.
Other easy control options include stand-alone mode, DMX, or wireless footswitch. The GigBAR Move + ILS package includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup.

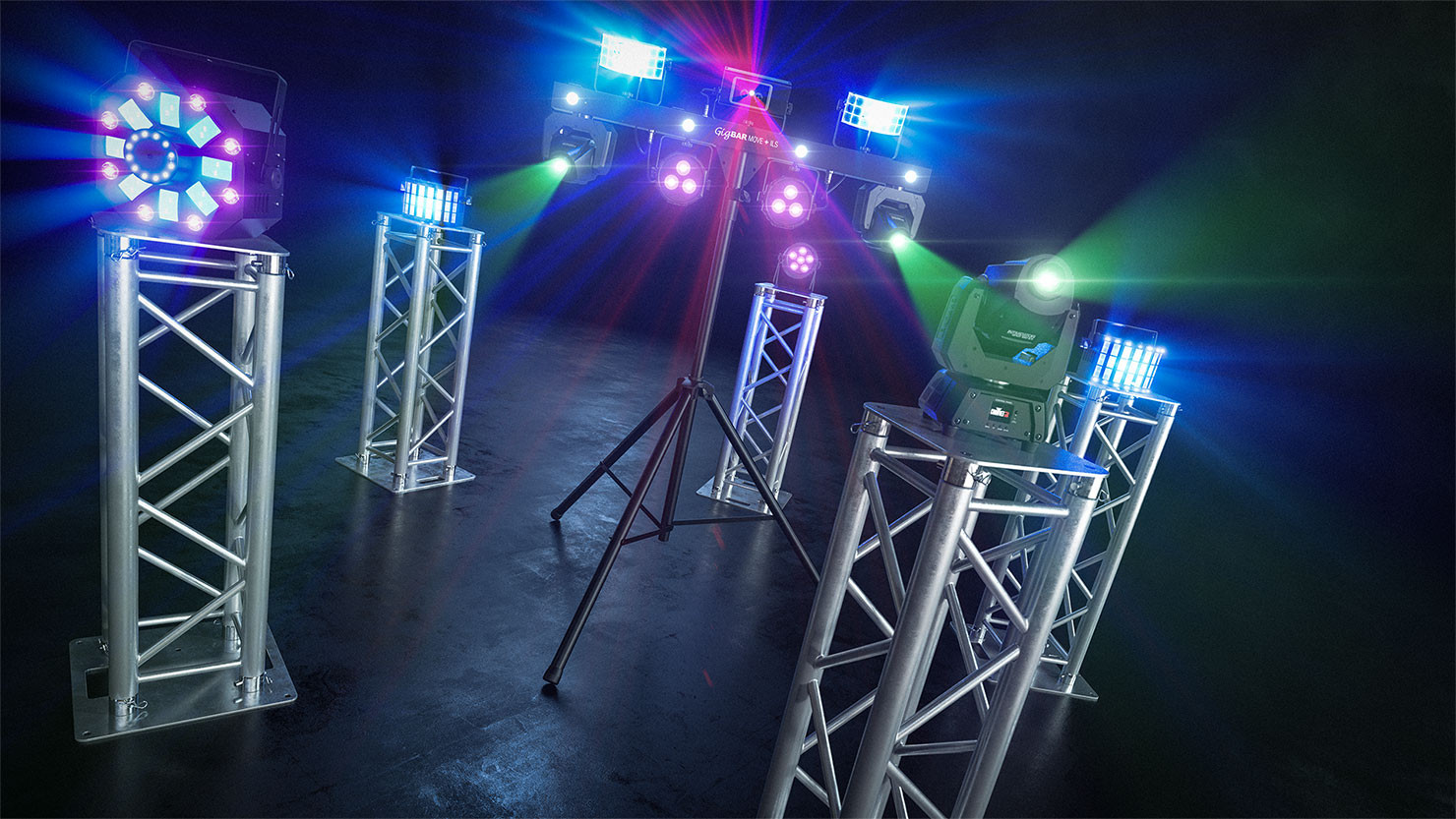

What is ILS?Integrated Lighting System (ILS) is a cutting-edge lighting system that makes creating coordinated light shows across different fixture types easy and fast. Now, one of the most popular products in the CHAUVET DJ catalog the GigBAR Move becomes GigBAR Move + ILS and controls the new Integrated Lighting System to control any ILS-enabled fixture wired or wirelessly so you can spend less time programming and your event guests can get to the good times sooner!

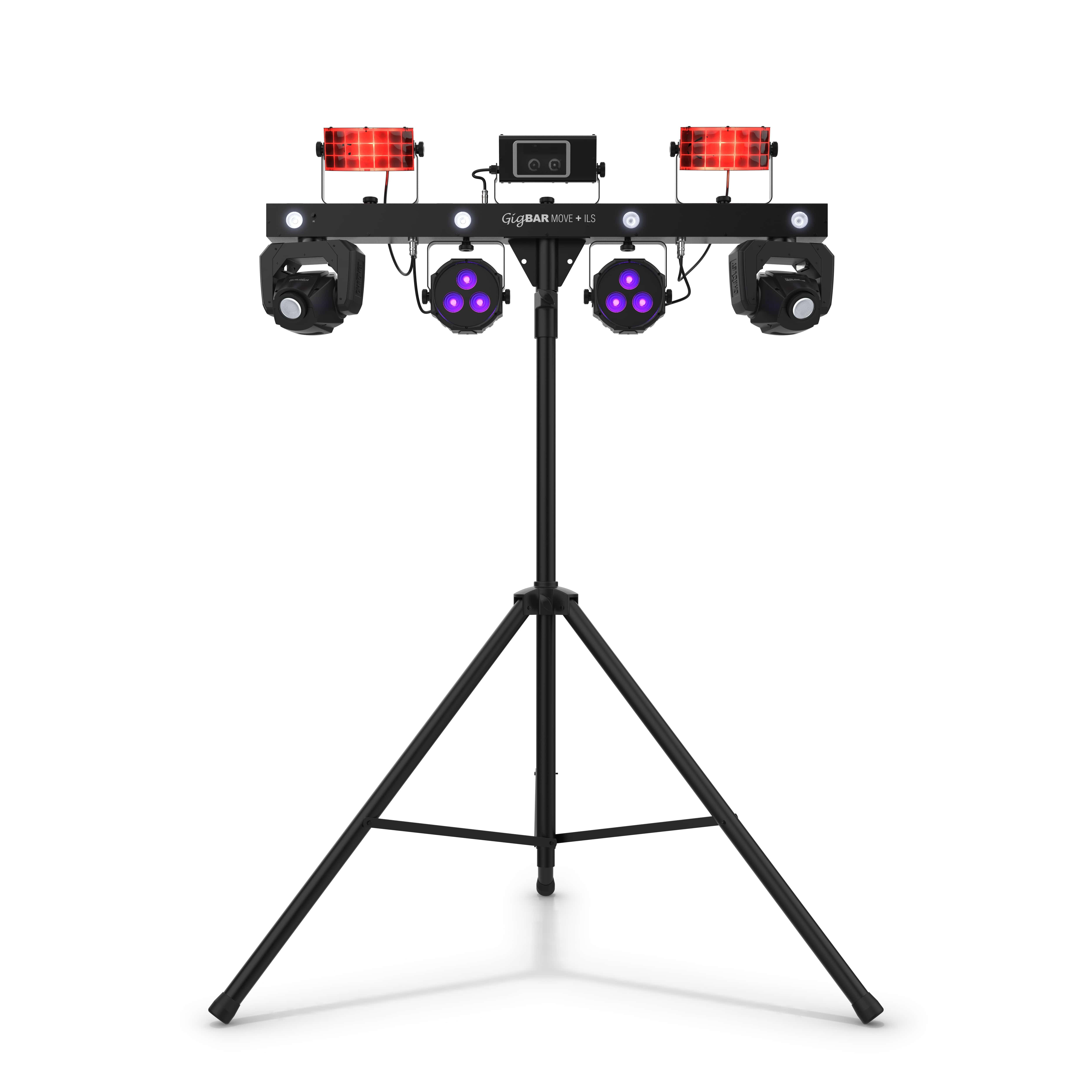

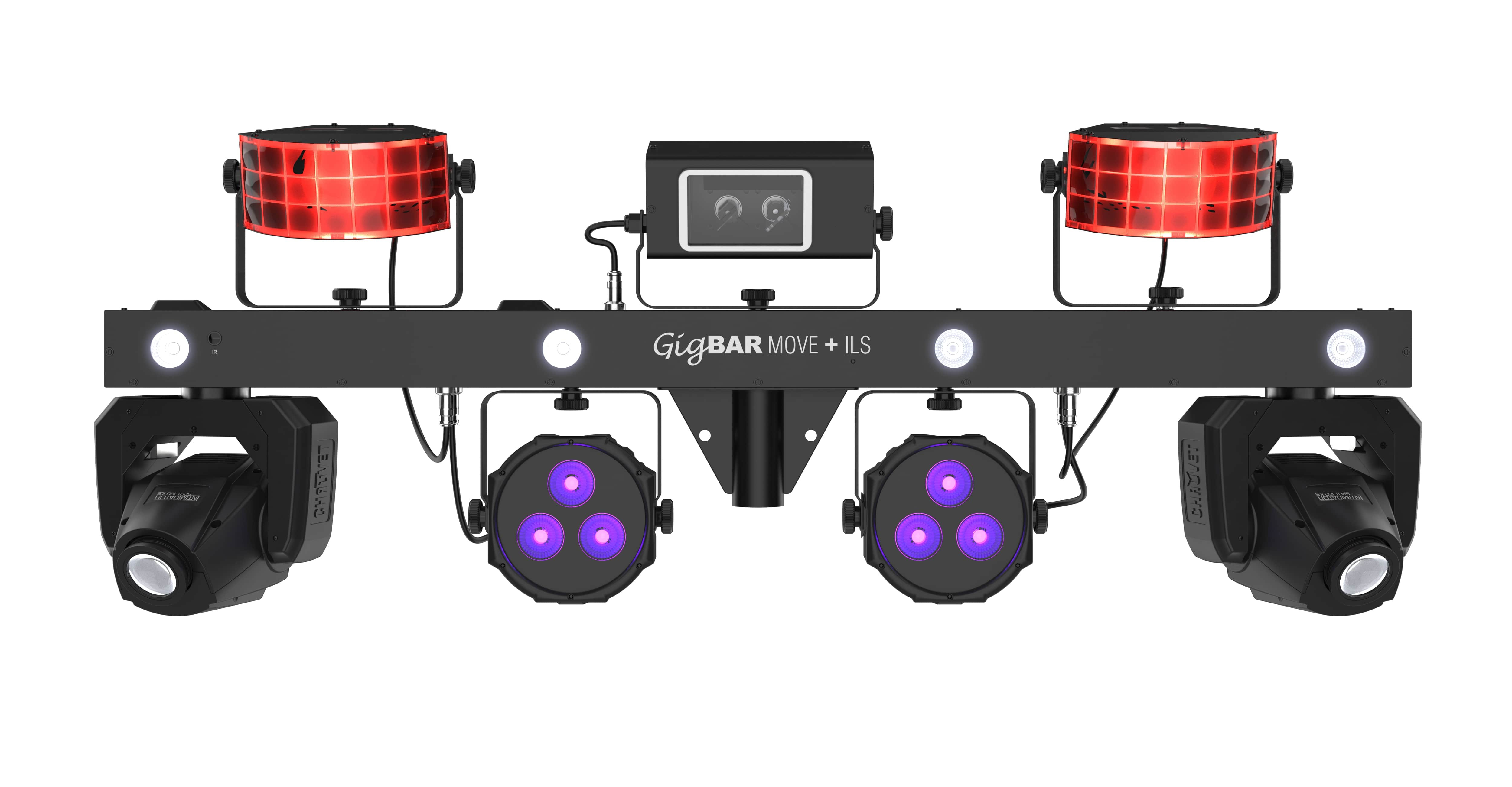

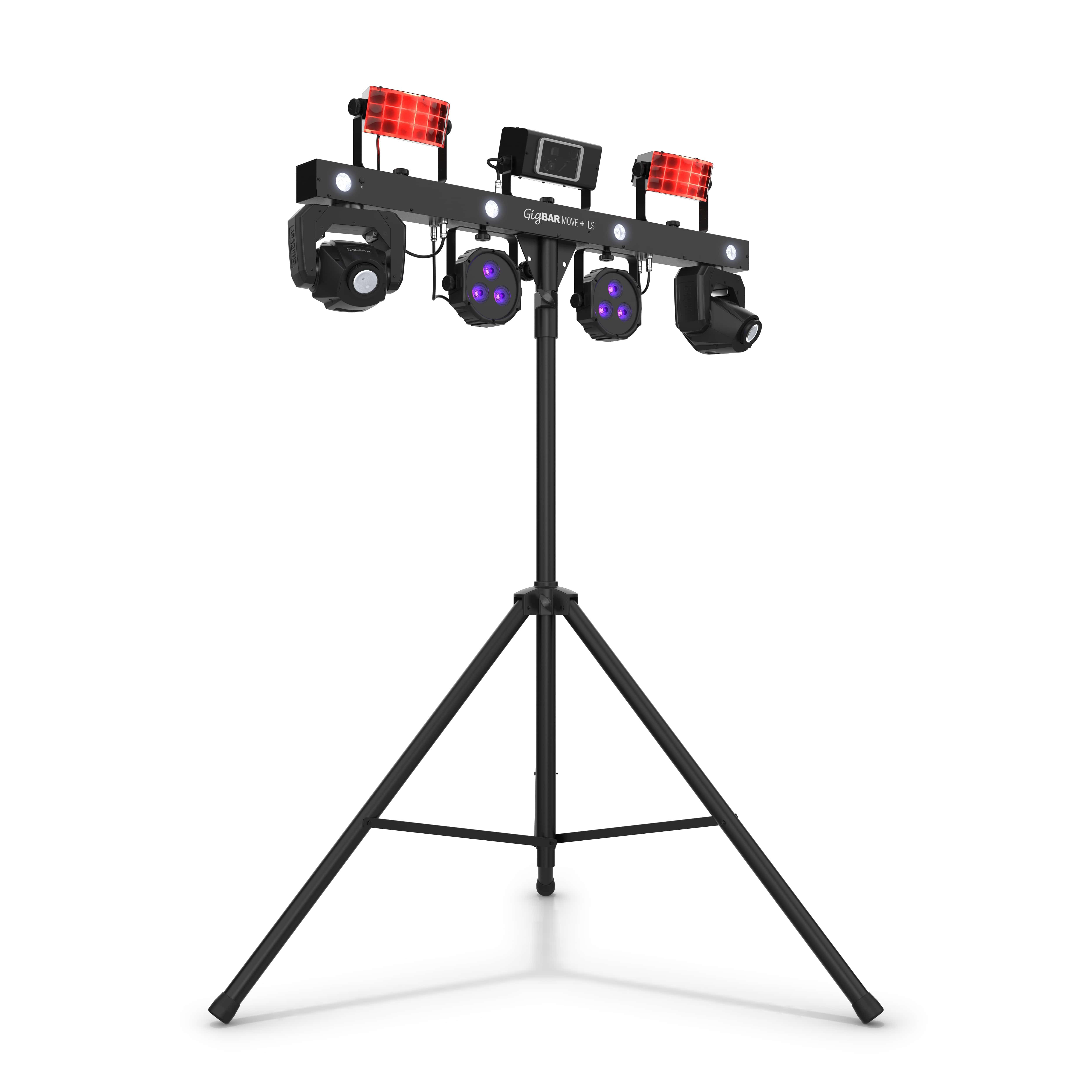

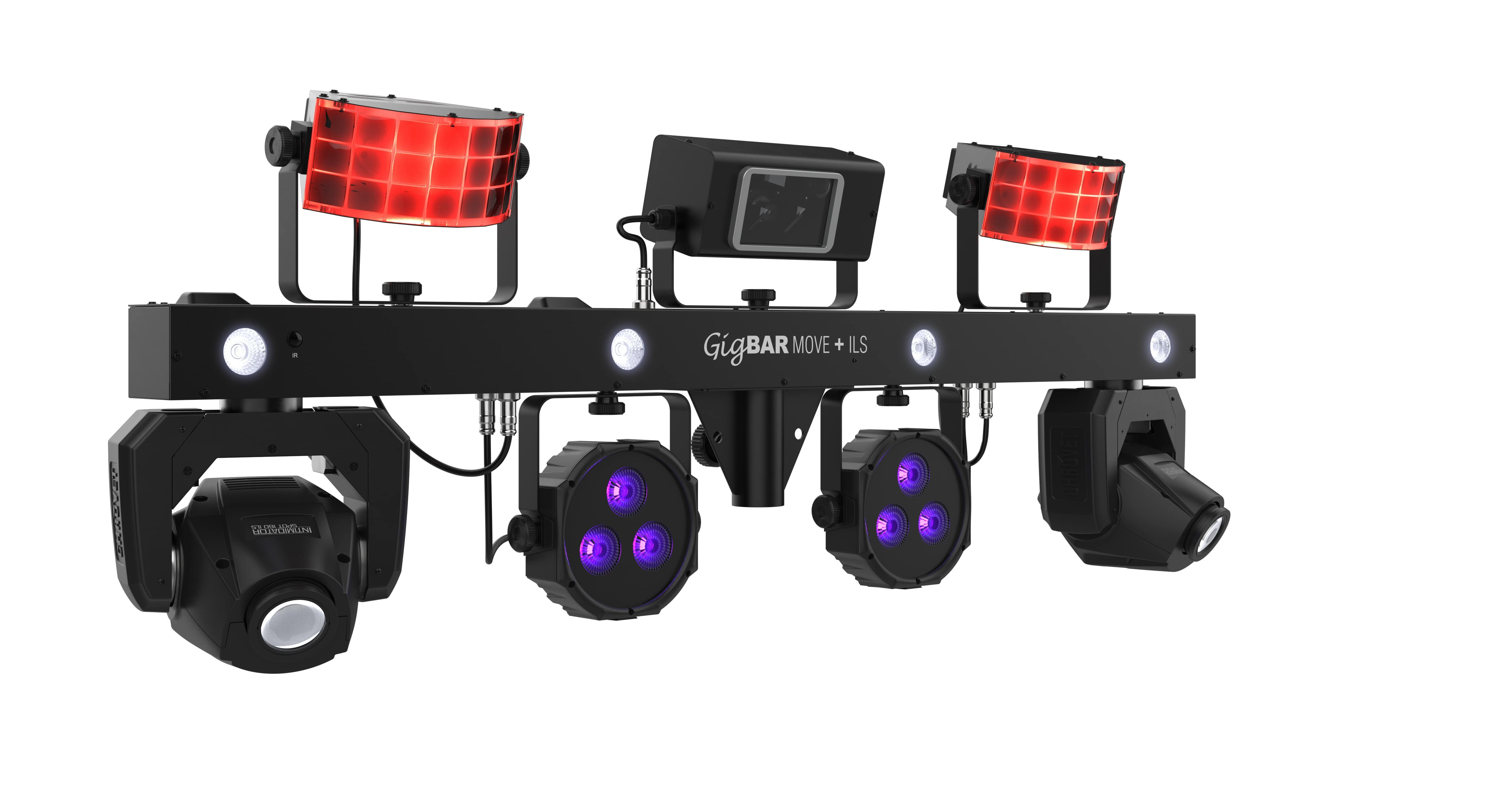

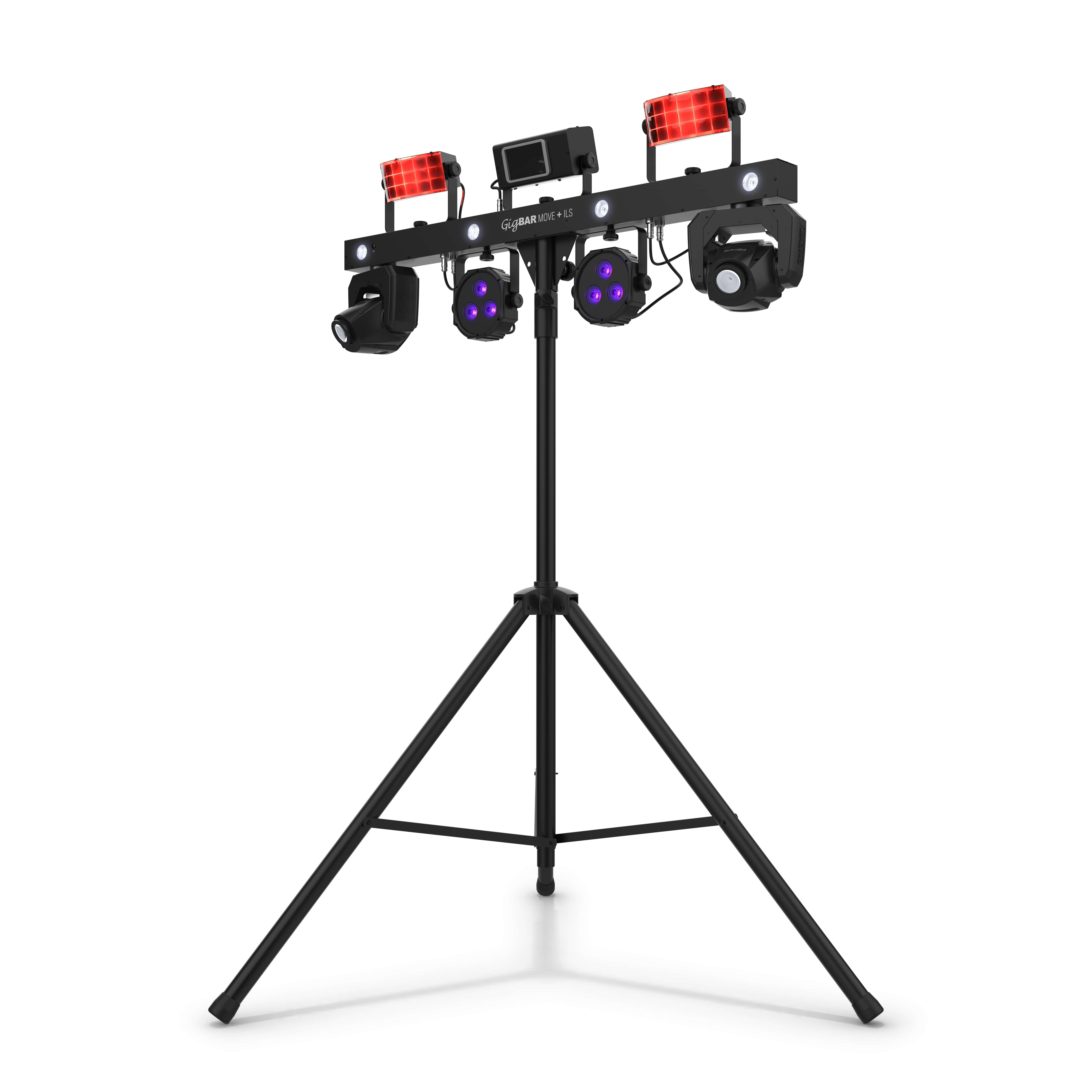

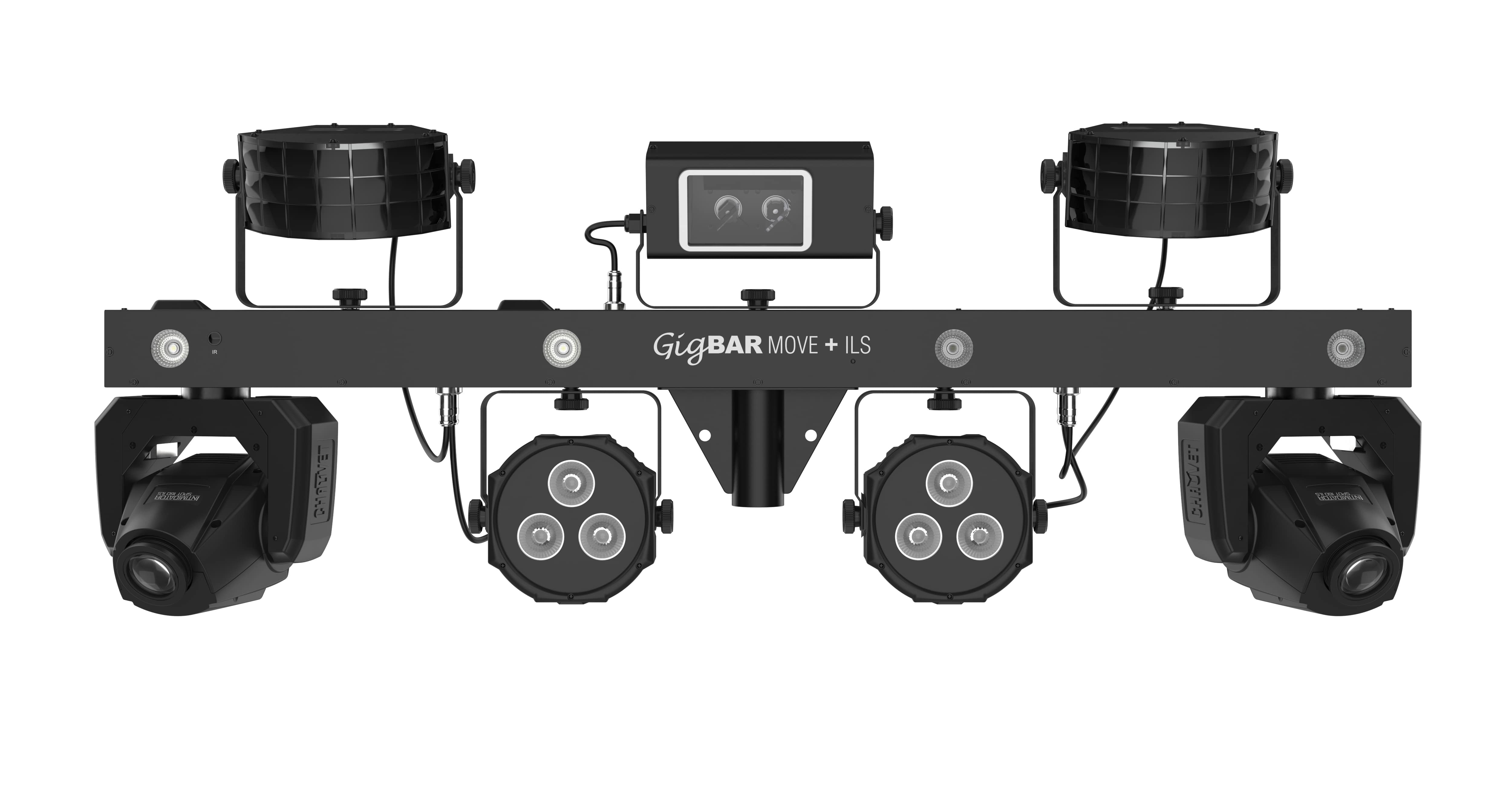

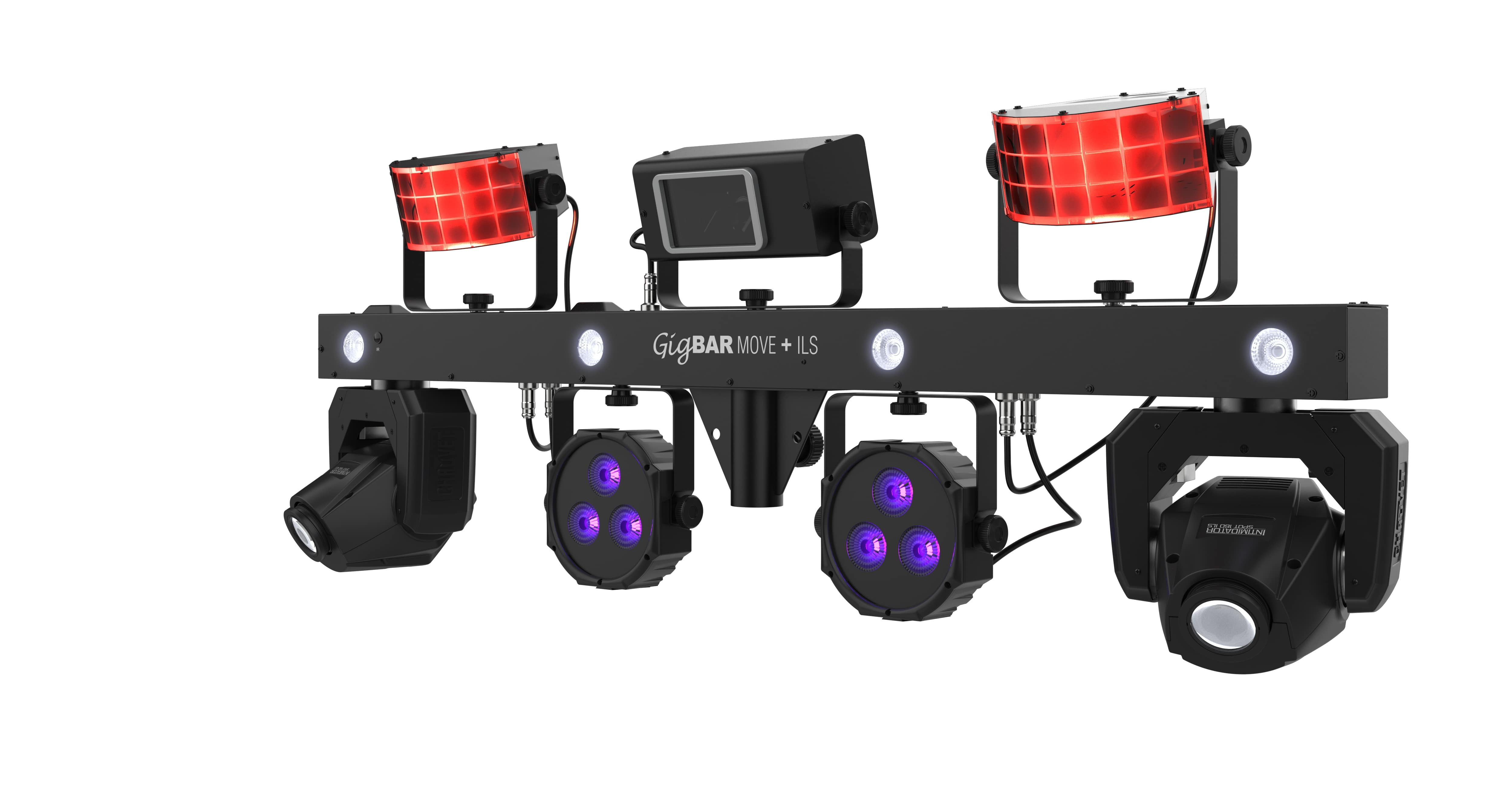

• 5-in-1 lighting system that includes moving heads, derbies, washes, a laser and strobe effect pre-mounted on a single bar
• Integrated Lighting System (ILS) is a complete lighting ecosystem technology that provides an advanced, coordinated light show across multiple fixture types
• Control any ILS-enabled fixture wired or wirelessly (sold separately)
• Use the included RF remote to trigger the built-in shows without needing line of sight
• Powerful moving heads with separate color and gobo wheels allow for creative programming
• Totem Mode keeps the moving heads focused on the dance floor
• Easy navigation and access to all moving head functions directly from the full-color LCD display
• System includes a tripod, wireless footswitch, RF remote and FREE carry bags to ensure quick setup
• Built-in UV LEDs illuminate florescent objects for dazzling blacklight effects
• Individual control of each effect ensures your show looks the way you need it to
• Easy control via stand-alone, DMX, wireless RF remote or wireless footswitch
Specifications• DMX Channels: 3, 28, or 50
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 540/180
• Colors:
(moving head): 9 + open, split colors, continuous scroll at variable speeds
• Gobos:
(moving head): 9 + open, continuous scroll at variable speeds
• Light Source:
(pars): 3 LEDs (hex color RGBAW+UV) 6 W (2 A), 50,000 hours life expectancy
(strobe): 4 LEDs (cool white) 5 W (1.2 A), 50,000 hours life expectancy
(derby): 8 LEDs (2 red, 2 green, 2 blue, 2 white) 6.5 W (2 A), 50,000 hours life expectancy
(moving head) 1 LED (cool white) 32 W, (3 A), 50,000 hours life expectancy
(Laser) 638 nm/30mW (red) laser diode, 520 nm/20 mW (green) laser diode, 450 nm/ 50 mW (blue) laser diodeStrobe Rate: 0 to 30 Hz
• Beam Angle:
(moving head): 17
(pars): 22
(strobe): 30
• Field Angle:
(pars): 33
(strobe): 62
• Coverage Angle:
(derby): 131
(laser): 93
• Fits Tripod Size: 1.5 in (37.4 mm)
• Illuminance:
(pars): 1,205 lux @ 2 m (per par)
(moving head): 5,140 lux @ 2 m (per head)
(strobe): 130 lux @ 2 m
• Power Linking: 7 units @ 120 V; 12 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
250 W, 3 A @ 120 V, 60 Hz
248 W, 1.8 A @ 230 V, 50 Hz
• Weight: (bar only) 31 lbs (14 kg)
• Size: 43 x 5.7 x 17.7 in (1100 x 144 x 449 mm)
• Approvals: CE, UKCA, RoHS, FCC, FDA
• Stand Height: 4.8 ft to 8.3 ft (1.5 to 2.5 m)
• Footswitch Operating Frequency: 433 MHz
• Footswitch Max Unobstructed Distance: 100 ft (30.5 m)
• Footswitch Battery: 9 V alkaline
• Included Controllers: RF remote, wireless footswitch
• Cable Length: 10 ft (3 m)
• Tripod Thickness: 1.37 in (35 mm)
• Optional Controllers: RF
What's Included• GigBar Move Plus ILS
• Power cord
• RF Remote
• Carry bag
• Tripod
• Tripod carry bag
• Footswitch
• User Manual
